Description:

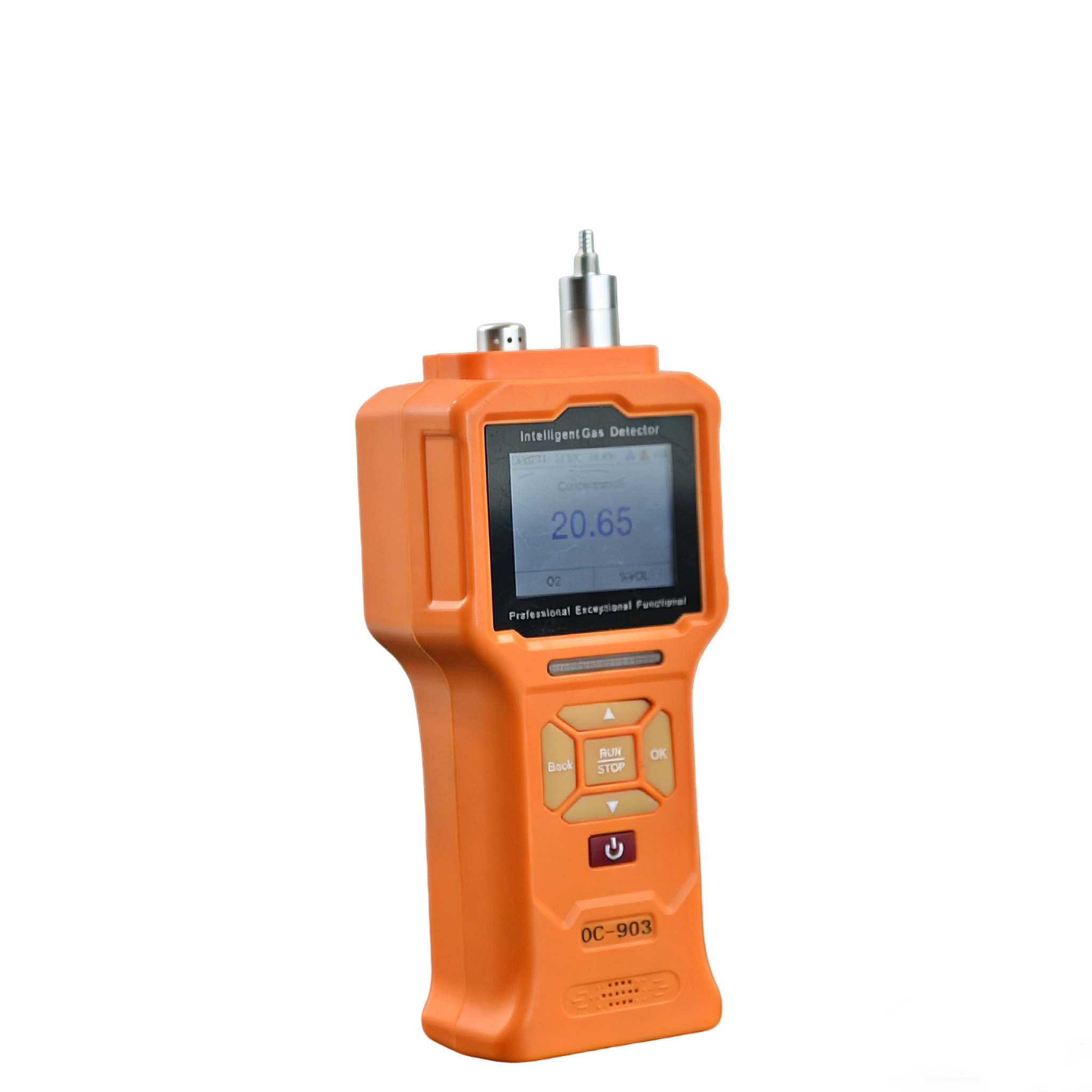

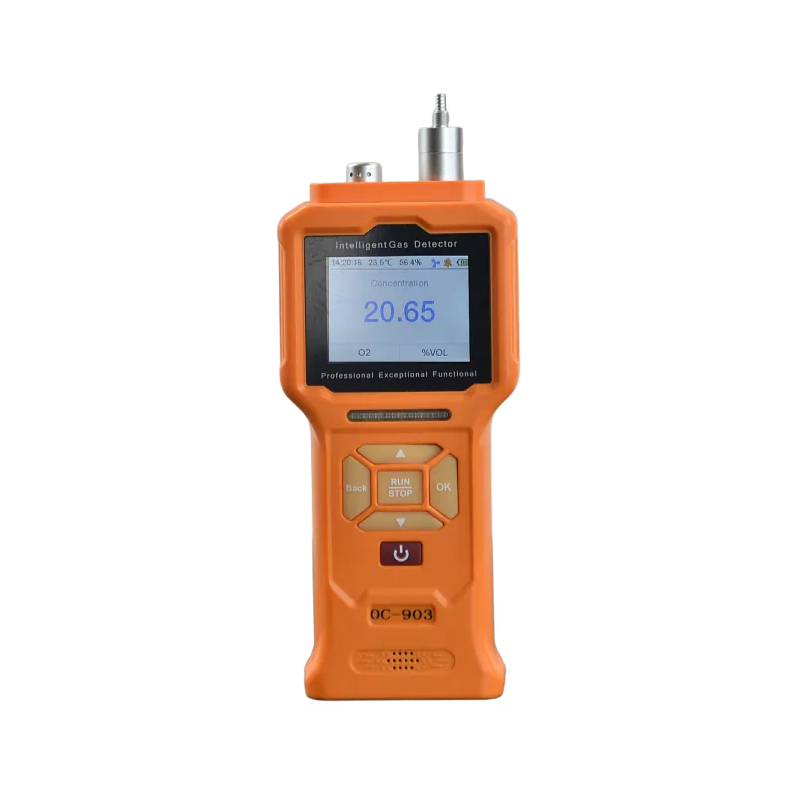

This portable SiH4 silane gas detector is a professional safety measuring instrument developed for silane hazard prevention. Silane is a special electronic gas largely used in semiconductor chip etching, thin‑film deposition and photovoltaic cell production process. SiH4 is toxic and spontaneously combustible, it may ignite automatically once leaking into air, bringing fire, explosion and poisoning risks to site operators. This detector is equipped with high‑stability imported electrochemical sensor, featuring fast response speed, low zero drift and strong anti‑interference performance. It can continuously collect and display real‑time SiH4 concentration data in ambient air. When measured value reaches preset alarm threshold, sound‑light‑vibration triple alarm will trigger, reminding staff to cut off gas supply, strengthen ventilation and locate leakage source immediately. Adopting ergonomic lightweight handheld housing, the device is suitable for long‑time on‑site patrol, special gas cabinet inspection and equipment leak detection. With adjustable alarm threshold and low power consumption, it meets daily safety inspection, regular environmental monitoring and emergency detection requirements for semiconductor workshops, photovoltaic factories and special gas distribution stations.
Features:
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.4 inch IPS industrial grade color screen.
Support English language menu.
The gas concentration unit support for the ppm, mg/m3, %LEL, %vol.
With the inner pump and the suction strength is adjustable in different level.
Explosion proof grade of Ex ia IIC T4 Ga.
Function:
Inspect the gas concentration and alarm when it up to the preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation function.
Adjustable two stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is available.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
Technical Specification:
| Gas type | SiH4 silane |
| Working principle | Electrochemical sensor for SiH4 silane |
| Measuring range | 0-10ppm、50ppm、100ppm、1000ppm or customized |
| Resolution | 0.1ppm or customized |
| Precision | ≤±3%F.S |
| Sampling method | Pump-suction sampling, flow rate of 100~1000mL/min. (Adjustable) |
| Data logger function | About 100,000 group of data capacity. |
| Response time | ≤20s/10s |
| Recovery time | ≤20s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Display | Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
| Concentration unit | %vol, %lel, ppm, mg/m3 |
| Working environment | Working temperature: -30~60 degree;
Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 |
| Alarm mode | Audible-visual-vibration alarm |
| Dimension | 180m’m |
| Weight | 500g |
| Accessory | Box, Instruction, USB charger, Data line, Calibration cap, CD |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Applications:
- Semiconductor chip manufacturing workshop
- Photovoltaic cell production and thin‑film process site
- Electronic special gas cabinet and distribution station
- Special gas cylinder storage room
- Microelectronics material production workshop
- Laboratory silane‑related experiment site
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
