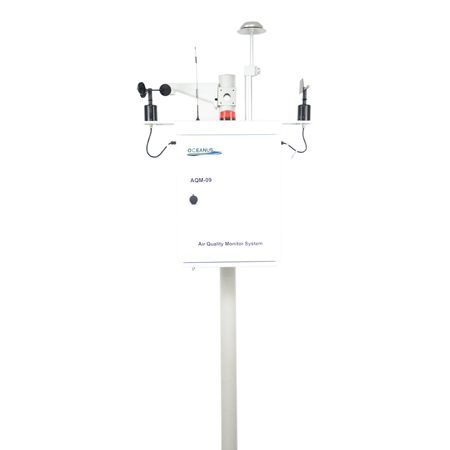

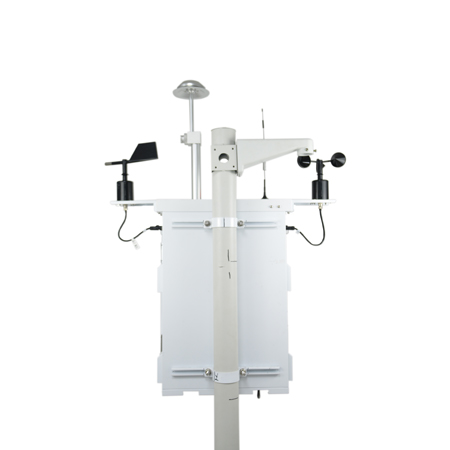

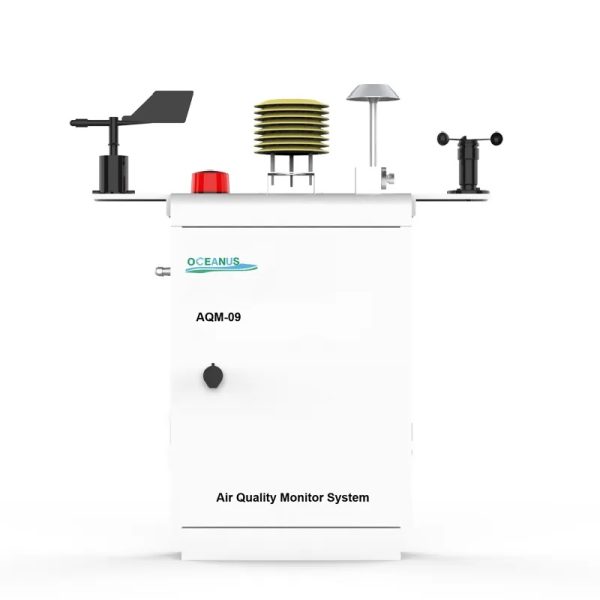

What is the AQM-09？
AQM-09 gas detection system used to detect the pollutant gases.Particulate matter PM2.5 and PM10, TSP, Noise, Meteorological parameters . Combined with industrial imported sensor technology and unique heating dehumidification compensation device to make sure data accuracy.
What is the use of AQM-09?
It is designed to ensure the safety of the ambient air around you.
It can be used as the air quality camera around you.
Where can AQM-09 be used？
AQM-09 air quality monitoring system can monitor the dust in the urban environment, construction sites, tourist attractions, parks, quarries, open-pit mining, cement plants and road safety.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
Technical Parameter:
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10，TSP | |
| Measuring range | 0~1000ug/m3 (Range can be extended) | |
| Response time | ≤60s | |
| Resolution | 1ug/m3 | |
| Parallelism | <10% | |
| Sampling flow | 1.3L/min, ±0.15 | |
| Dehumidification | With the automatic dehumidification function module | |
| Alarm function | With high concentration alarm function, the platform can configure the alarm threshold | |
| Gas modules | Monitor method | Continuously, automatically and real-time |
| Working principle | High precision Electrochemical sensor | |
| Gas monitor | SO2, NO2, CO, O3 | |
| T90 | ≤120s | |
| Sulfur Dioxide SO2 | Measuring range: 0~500ppb
Resolution: 1ppb Indication error: ±10%F.S Minimum detection value: 5ppb |
|
| Nitrogen Dioxide NO2 | Measuring range: 0~500ppb
Resolution: 1ppb Indication error: ±10%F.S Minimum detection value: 5ppb |
|
| Ozone O3 | Measuring range: 0~10ppm
Resolution: 0.1ppm Indication error: ±10%F.S Minimum detection value: 0.04ppm |
|
| Carbon Monoxide CO | Measuring range: 0~500ppb
Resolution: 1ppb Indication error: ±10%F.S Minimum detection value: 5ppb |
|

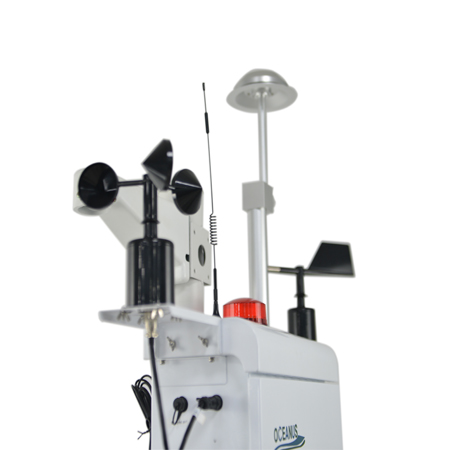

| Meteorological parameters | Wind speed | Range:0~45m/s
Precision:±1m/s Output resolution:0.1m/s |
| Wind direction | Range:0~360°
Precision:±3° Output resolution:1° |
|
| Temperature | Range:-30℃~50 ℃
Precision:±1℃ Output resolution:0.1℃ |
|
| Humidity | Range:0~95%RH
Precision:±5%RH Output resolution:1%RH |
|
| Air pressure | Range:600~1100hPa
Precision:±0.5hPa Output resolution:1hPa |
|
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
