Description:

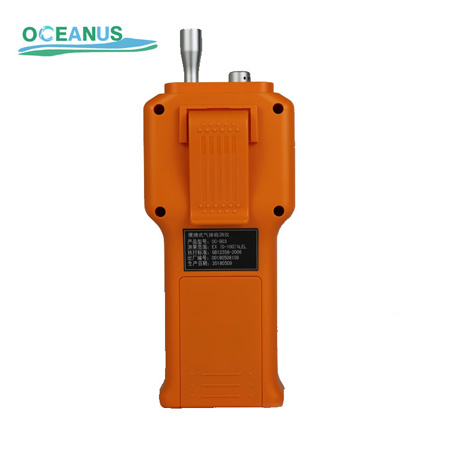

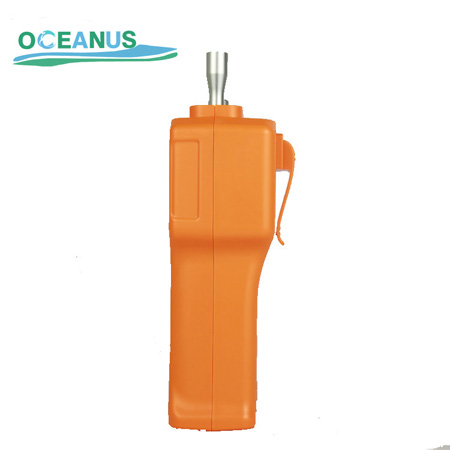

This portable ClO2 chlorine dioxide gas detector is a professional safety measuring instrument developed for chlorine dioxide hazard prevention. Chlorine dioxide is widely applied in tap water sterilization, sewage disinfection, food processing sterilization and chemical oxidation processes. ClO2 gas features strong oxidation and corrosivity. Gas leakage will cause severe irritation and damage to human respiratory tract, eyes and mucous membranes, and also corrode on‑site equipment. This detector is equipped with high‑stability imported electrochemical sensor, featuring fast response speed, low zero drift and excellent anti‑interference performance. It can continuously collect and display real‑time ClO2 concentration data of ambient air. Once detection value reaches preset alarm threshold, sound‑light dual alarm will be triggered to remind staff to carry out ventilation, wear protective gear and trace leakage sources in time. Adopting ergonomic lightweight handheld housing, the device fits long‑time field patrol and spot inspection. It supports adjustable alarm threshold and stable continuous operation, perfectly satisfying daily safety inspection, environmental regular monitoring and equipment leak detection for water plants, sewage disinfection stations and food sterilization workshops.
Features:
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.4 inch IPS industrial grade color screen.
Support English language menu.
The gas concentration unit support for the ppm, mg/m3, %LEL, %vol.
With the inner pump and the suction strength is adjustable in different level.
Explosion proof grade of Ex ia IIC T4 Ga.
Function:
Inspect the gas concentration and alarm when it up to the preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation function.
Adjustable two stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is available.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
Technical Specification:
| Gas type | ClO2 Chlorine Dioxide |
| Working principle | Electrochemical sensor for ClO2; |
| Measuring range | 0-1.00ppm、10ppm、50ppm、200ppm or customized |
| Resolution | 0.1ppm or customized |
| Precision | ≤±3%F.S |
| Sampling method | Pump-suction sampling, flow rate of 100~1000mL/min. (Adjustable) |
| Data logger function | About 100,000 group of data capacity. |
| Response time | ≤20s/10s |
| Recovery time | ≤20s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Display | Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
| Concentration unit | %vol, %lel, ppm, mg/m3 |
| Working environment | Working temperature: -30~60 degree;
Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 |
| Alarm mode | Audible-visual-vibration alarm |
| Dimension | 180m’m |
| Weight | 500g |
| Accessory | Box, Instruction, USB charger, Data line, Calibration cap, CD |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Applications:
- Tap water plant chlorine dioxide disinfection workshop
- Municipal sewage disinfection treatment site
- Food processing sterilization production workshop
- Swimming pool water disinfection station
- Chemical oxidation reaction workshop
- Laboratory chlorine dioxide test site
