Description:

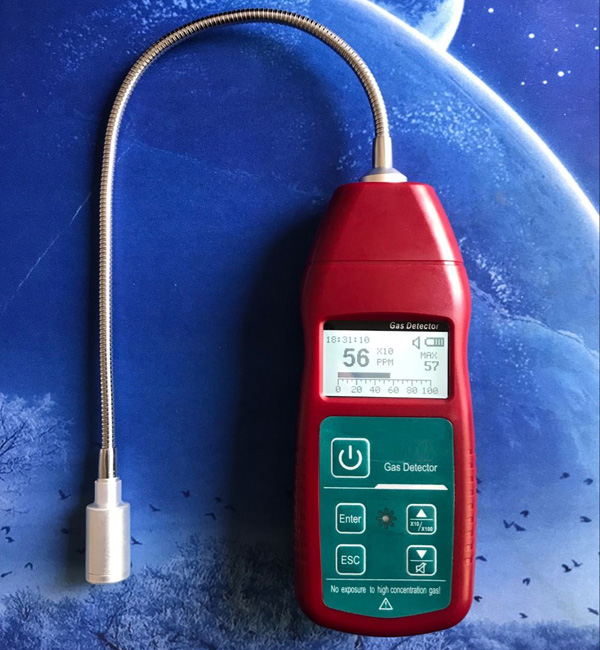

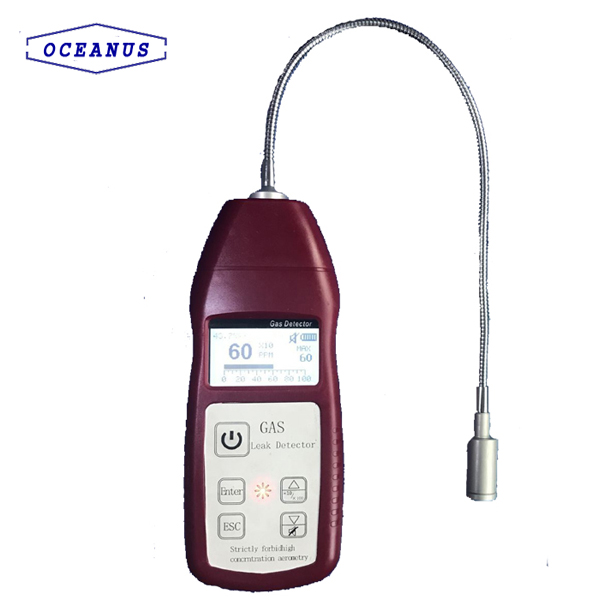

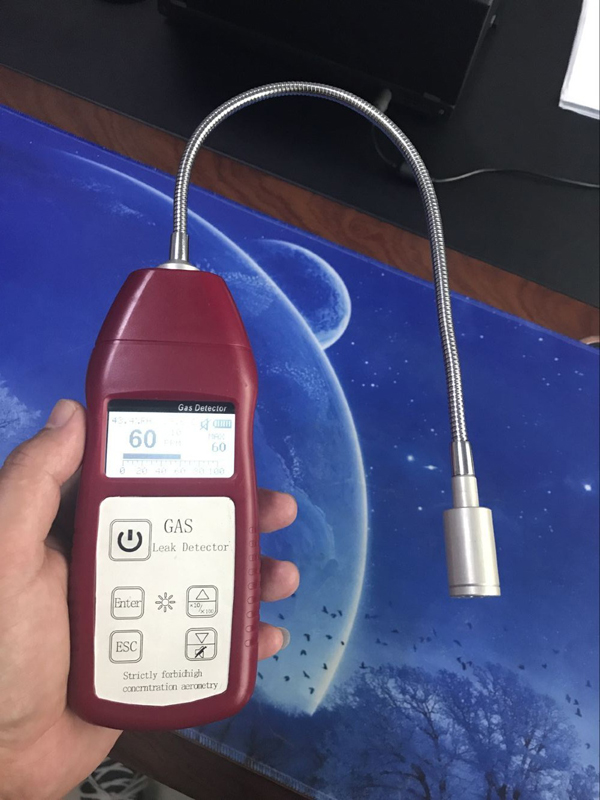

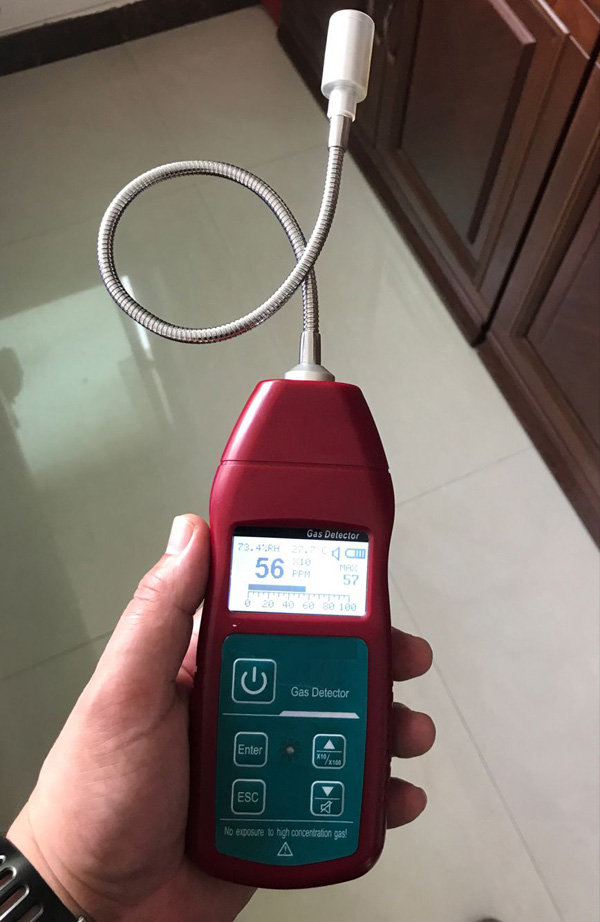

OC-10 portable combustible gas leakage detector is for industrial use with high performance and a wide detecting range, which can detector more than ten types combustible explosive gas. It with the Japan sensor and American Military grade processor. Also, it has below advantages: small figure, simple operation, easy to carry, extension flexible probe tube, high shock resistance. High-resolution STN dot-matrix LCD can provide high-visible display.
Features:
High-resolution STN dot-matrix LCD display
Quickly find the gas leakage point
Long and flexible gooseneck tube, adjustable detecting range
Low-voltage alarm, under-voltage automatic shutdown
Failure self-checking function of the sensor
Quick preheat, rapid response
Frequency variation of audio signal with concentration
Zero point self-calibration
Black scroll bar display the ratio scale of real time concentration to full range.
Real time inspection of the environment temperature and humidity.
Technical Parameters:
| Product name | Portable combustible gas leakage detector |
| Detecting Gas | Combustible gas (such as natural gas, LPG, etc) |
| Working principle | Semiconductor Sensor |
| Detection Range | 0 PPM—1000 PPM or 0 PPM—10000 PPM (optional)
(calibrated by methane) |
| Sampling Method | Diffusion sampling |
| Sensitivity | Better than 50 PPM |
| Working Environment | Temperature: -10℃～55℃ ;
Humidity: ≤93% RH (non-condensing) |
| Storage Environment | Temperature: -30℃～60℃
Humidity: ≤93% RH (non-condensing) |
| Preheat time | ≤30S |
| Response time | ≤5S |
| Indication | LCD scroll bar and data display, audio alarm with variation of frequency |
| Charging time | ≤ 5 hours |
| Continuous Working time | >8h (normal working environment) |
| Sensor life | 2 years |
| Power Supply | 3.6V 1600mAh rechargeable lithium battery |
| Weight | About 300g |
| Dimensions | 175mm×71mm×40mm |
Applications:
The OC-10 Portable combustible gas leakage detector is applied to detect methane, natural gas, LPG, coal gas, ethane, propane, acetylene, butane, isobutene, pentane, hexane, halogenated hydrocarbon (methyl chloride, trichloroethane, chloroethylene, etc), alcohols (methanol, ethanol, propanol), ether, ketone (butanone, acetone), hydrogen, methylbenzene and other compound (gasoline, industrial solvent, paint, thinner, refrigerant, abluent, methyl acetate, etc).
