Description
The OC-1000 portable C2H4, CO2, O2 multi-gas detector is a professional agricultural and cold-chain gas monitoring device, customized for fruit, vegetable and flower preservation environments.
It can simultaneously detect Ethylene (C2H4), Carbon Dioxide (CO2) and Oxygen (O2). Ethylene is the core ripening gas that accelerates fruit aging and decay. Real-time C2H4 concentration monitoring helps customers control storage atmosphere and extend shelf life of agricultural products.
Equipped with high-precision professional sensors, the device features stable data, fast response and anti-interference performance. Portable handheld design is perfect for daily patrol in cold storage rooms, controlled atmosphere warehouses, logistics cold chains and agricultural processing factories.
With data recording and adjustable alarm threshold functions, it provides reliable atmosphere data support for intelligent fresh-keeping storage, effectively reducing fruit and vegetable loss during storage and transportation.
Features
- Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
- 3.5 inch IPS industrial grade color screen.
- Support Chinese or English operation menu.
- Gas concentration unit available for %LEL， PPM, %VOL, mg/m3.
- For 1~5 gas detecting, gas type all be customized, supporting the PM2.5 particle counter sensor, and humidity sensor, etc.
- Internal sampling pump for suction, the suction strength is adjustable in different level.
- Explosion proof grade is Exia ⅡCT4.
Technical Parameter:
| Gas type | C2H4, CO2, O2 | ||
| Working principle | Electrochemical sensor for C2H4, O2
NDIR sensor for CO2 |
||
| Sampling mode | Pump-suction sampling | ||
| Measuring range | C2H4: 0~10PPM/0.1PPM; CO2: 0~100%vol/0.01ppm; O2: 0~100%vol/0.1%vol; | ||
| Resolution | C2H4: 0.1ppm
O2: 0.1%vol CO2: 0.01%vol |
||
| Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||

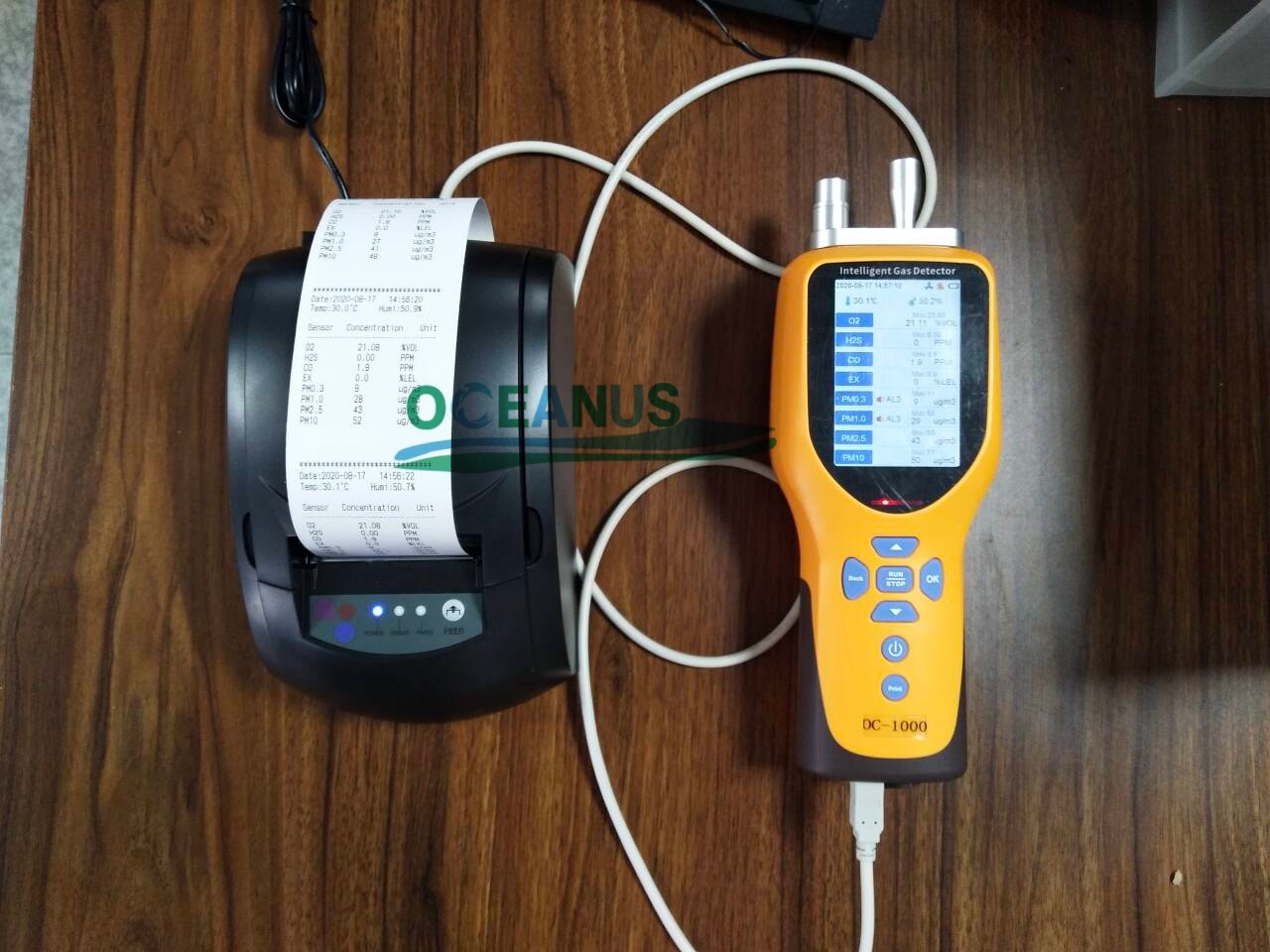

| Printer | Optional mini-printer. | ||
| Response time | ≤20s(T90) | Recovery time | ≤20s |
| Repeatability | ≤±1% | Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
| Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
| Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
| Working temperature | -40~60℃ | Working humidity | 0-95%RH(non-condensing) |
| Working pressure | -30Kpa ~ 100Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 | Shell material | ABS+PC |
| Dimensions | 220*88*55mm | Weight | 0.5KG |

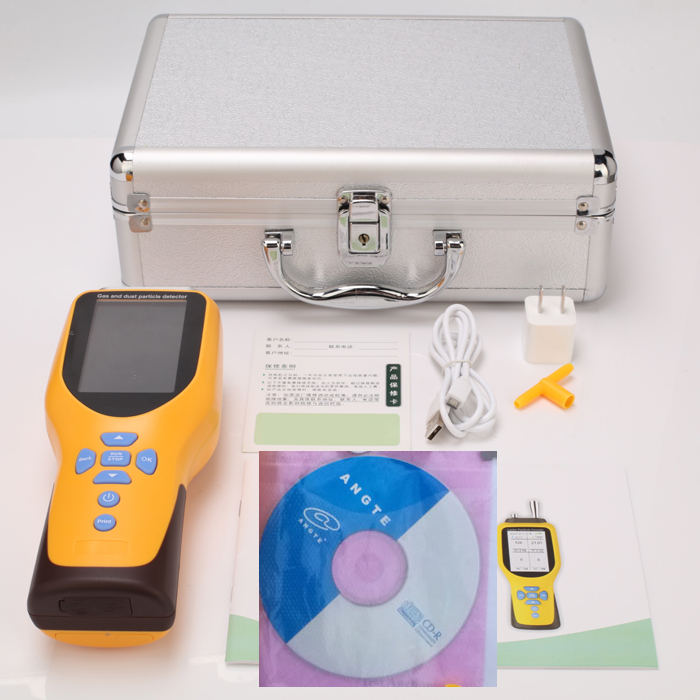

| Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Function:
- Inspect the gas concentration and alarm when it reaches preset alarm level.
- With auto-test and data recover function.
- One-key operation to restore to factory default setting.
- Temperature and pressure compensation.
- Adjustable two-stage audible-visual alarm threshold value.
- Powered by rechargeable lithium battery with big capacity.
- Working under the micro negative pressure is available.
- Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
About us
We Henan Oceanus was established in 2016. Its main business focus on Safety and Environmental monitoring, also takes this as core business. We are committed to building a platform that integrates services and products. The company has professional engineers and production team to provide the technical support, efficient marketing team to expand business. With the competitive quality and service, our products has exported to more than 100+ countries all over the world.
01. Business areas
As a leader in the field of Gas detector & Air quality monitor system, we Henan Oceanus is continued to expand its business scope and provide customers around the world with customizable gas detectors of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customers Service
With excellent products and services, We Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Application Scenarios
- Fruit & Vegetable Cold Storage Monitoring
- Controlled Atmosphere (CA) Warehouse Atmosphere Analysis
- Agricultural Product Cold Chain Logistics
- Flower and Seedling Preservation Environment Monitoring
- Intelligent Fresh-keeping Warehouse Management
