Description:

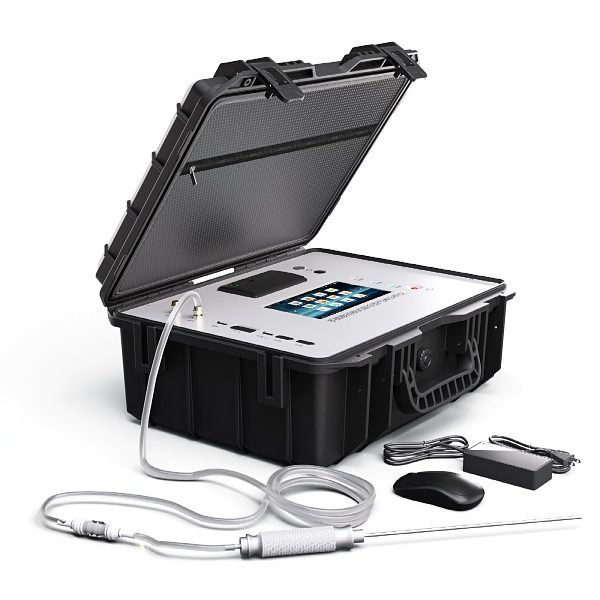

This OC-2400S Portable multi gas analyzer is all-in-one, suitcase-style type gas analyzer, designed for on-the-go, hassle-free operation—simply place it and start testing, making it ideal for diverse work scenarios.
It can simultaneously detect 1-24 types of toxic, harmful, flammable, or explosive gases, leveraging modular imported sensors to ensure high-precision measurements. The device also supports 4G connectivity for real-time data sharing, customizable detection parameters, and features an intelligent integrated interface (with a built-in display and Bluetooth mouse) for intuitive control.
Features:
It used original imported sensor with good quality and high accuracy;

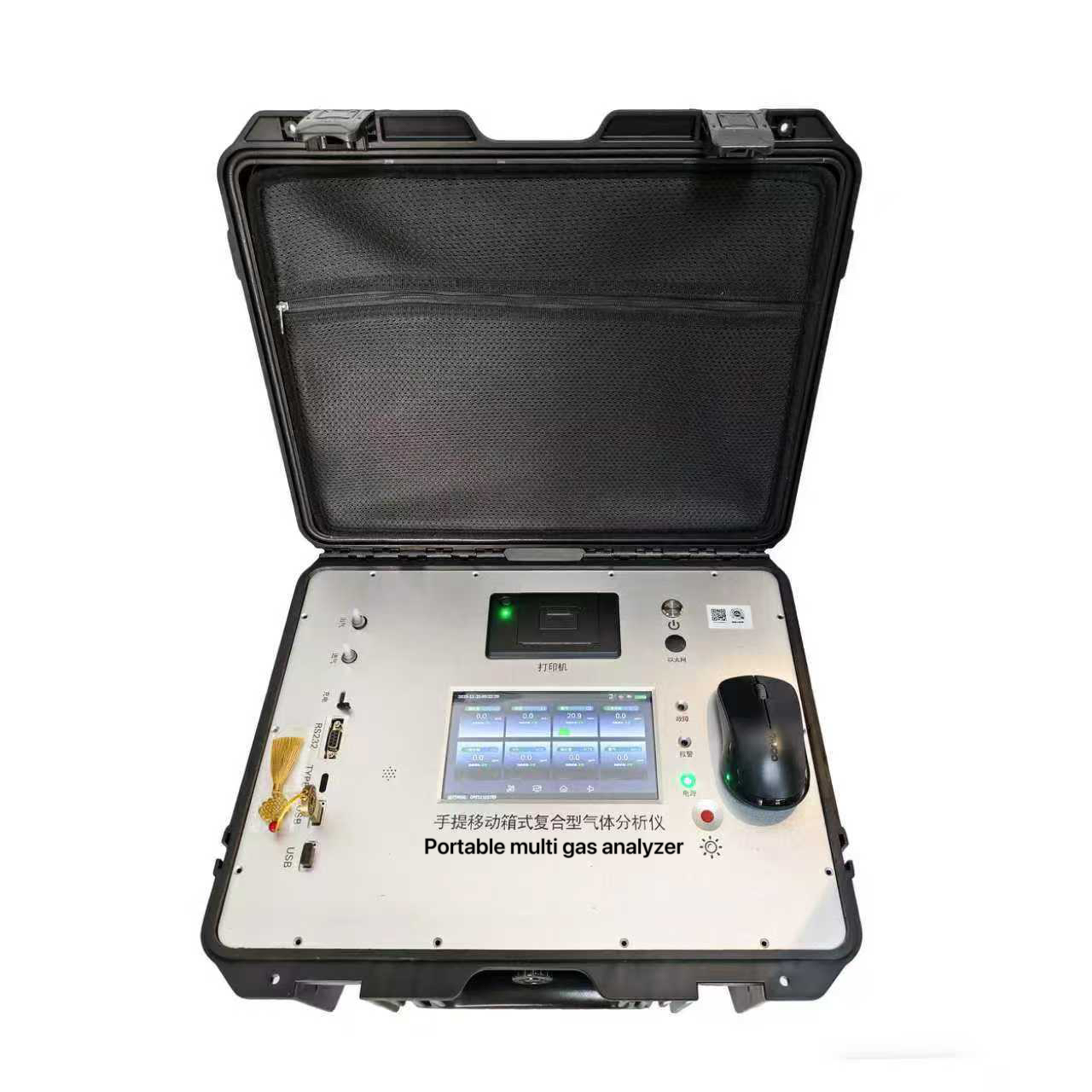

With 7-inch display screen, supports touch screen or mouse operation;
Combined with 1~24 different gas sensors for different gas type;
Built-in printer, user can get data anywhere;
Multi signal output, GPS, Bluetooth, 4G, Lora, USB, RS232, RS485 optional;
Simple for UI design, Easy to operate the menu;
Optional high temperature sampler, for 400℃~1300℃ gas detection.
Technical Parameter:
| Gas type | Ex, O2, Toxic gas, or others gas customized |
| Sensor Type | Catalytic combustion, Electrochemistry, PID, Infrared, Thermal conductivity |
| Sensor life | 2~3 years |
| Measuring range | According gases customized
%LEL, %VOL, PPM, MG/M3, etc |
| Accuracy | ≤±3%F.S﹙Higher Accuracy can be customized﹚ |
| Display | 7 inch colorful screen with touch |
| Response time | T90≤30S |
| Sampling mode | Pump-suction sampling (500ml/min) |
| Operating Language | Chinese or English operating menu is able to be changed freely. |
| Alarm Mode | Beep alarm, light alarm sound≥80dB |
| Data storage | 100k pieces of data storage |
| Data Transmission | Optional:
Wire: USB, RS232, RS485 Wireless: 4G, GPS, Bluetooth |
| Power Supply | 3.7V, 28000mAh rechargeable lithium battery |
| Explosion-proof Grade | Ex ib IIB T3 |
| Protection Grade | IP65 |
| Working Environment | Working Temperature: -10℃～55℃ (Optional high
temperature sampling and cooling filter Handle) Working Humidity: 0-95%RH (non-condensing) |
| Body Material | Aluminum alloy |

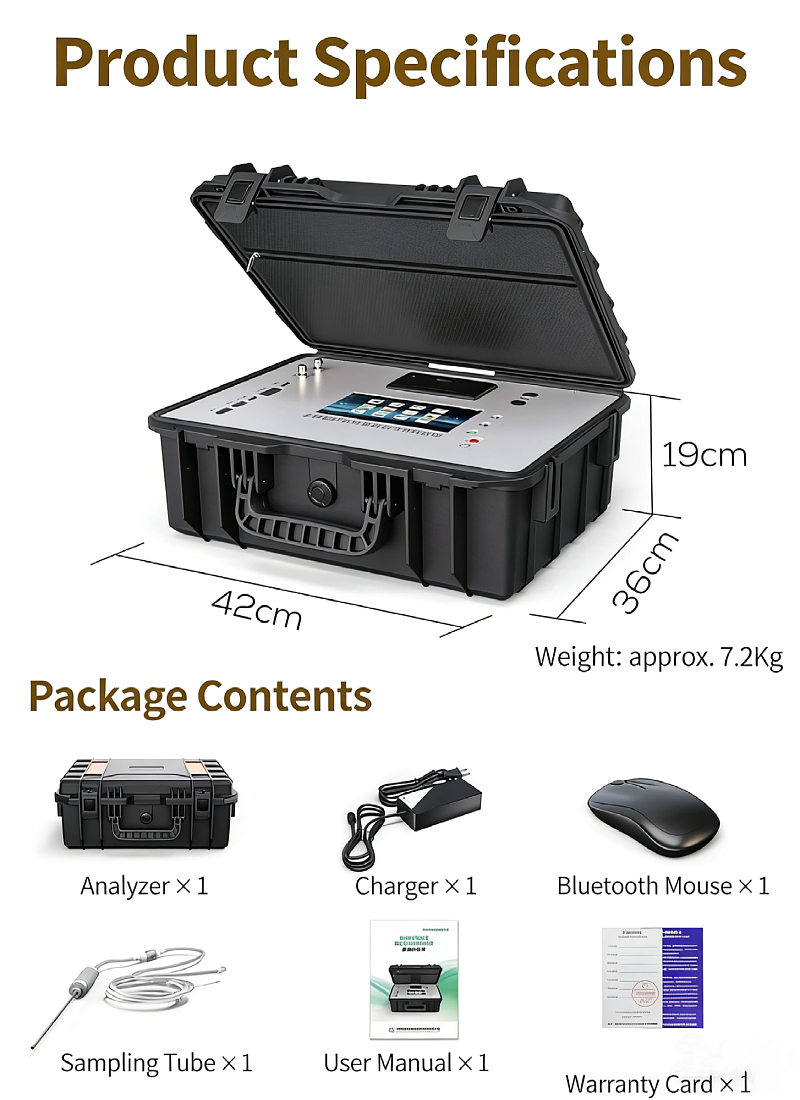

| Dimensions | 420*360*190mm |
| Weight | 7.2KG |
| Warranty | 1 years |
Applications:
It can be applied different industries, such as the Chemical plants, Metal smelting, Environmental monitoring, Pharmaceutical research, Industrial production, Pollution control, Animal husbandry, Tunnel construction, and other places that require the detection of flammable, explosive, toxic and harmful gases.
We Henan Oceanus Company is located in Henan province, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of gas detectors since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global market.
If you need more details of the Multi gas analyzer, welcome to contact us:
Email: info@china-oceanus.com
Telephone: +86 0371 60998169
Whatsapp: +86 15981942832
Whatsapp: +86 13673683950
