Description:

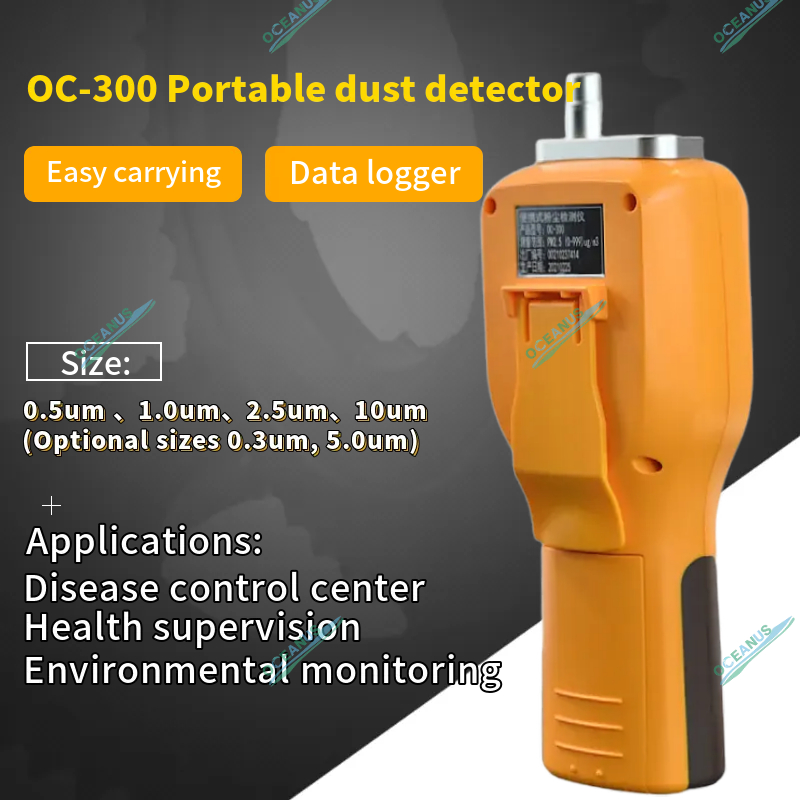

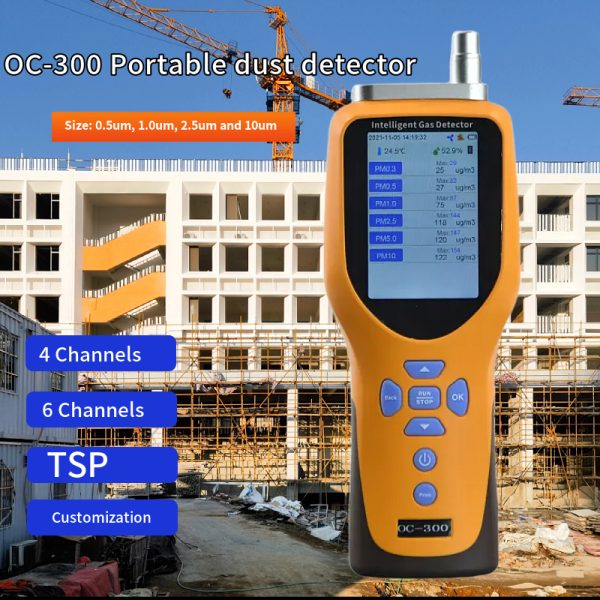

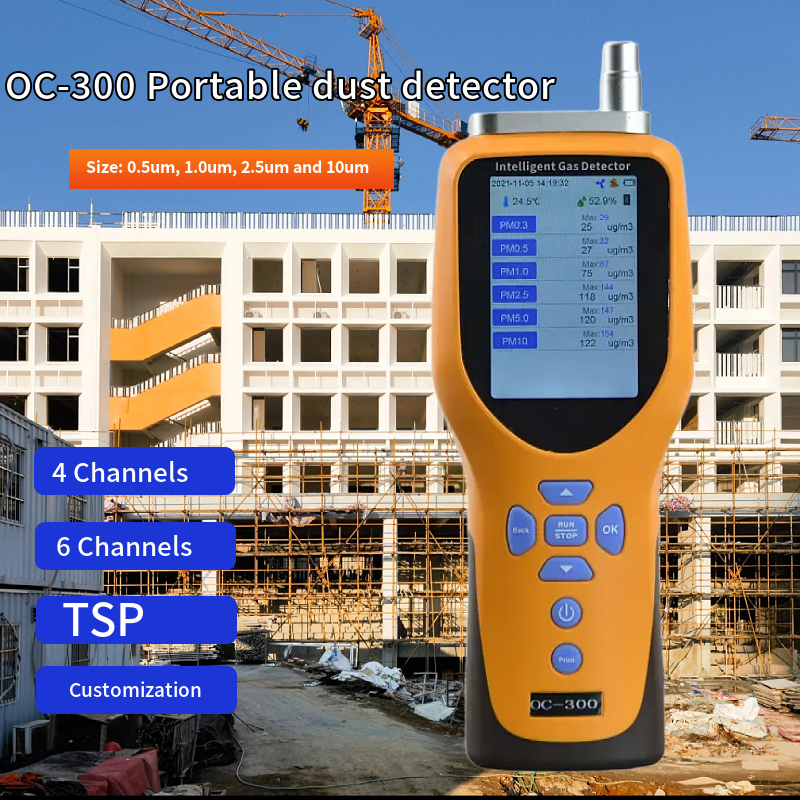

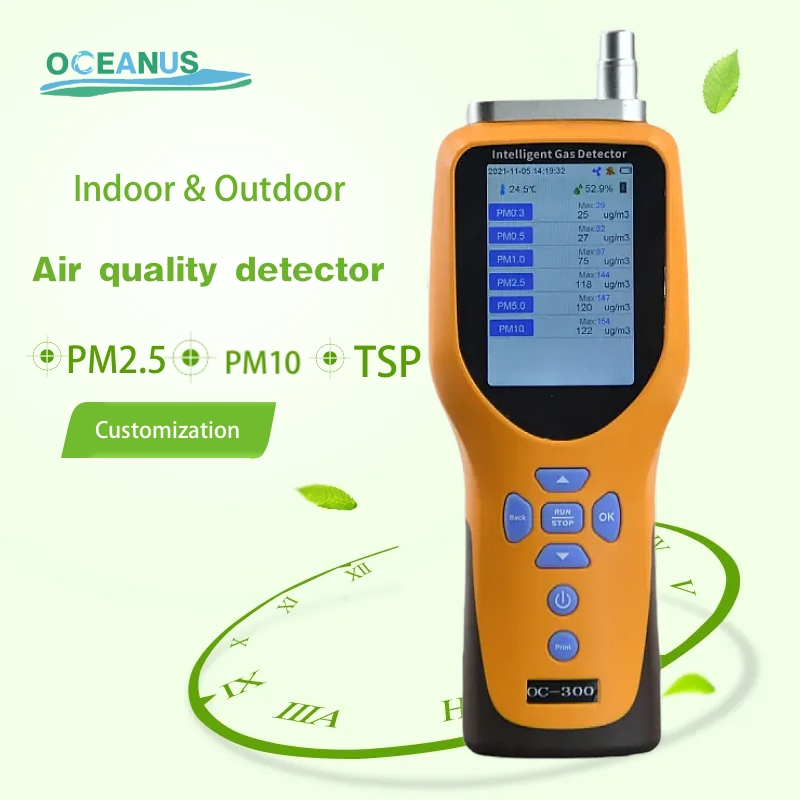

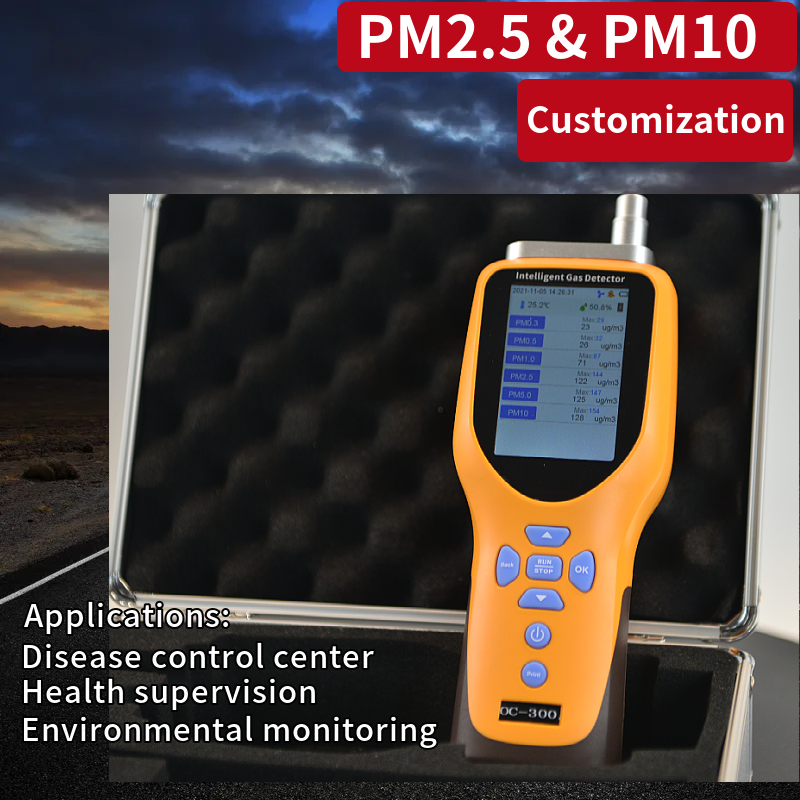

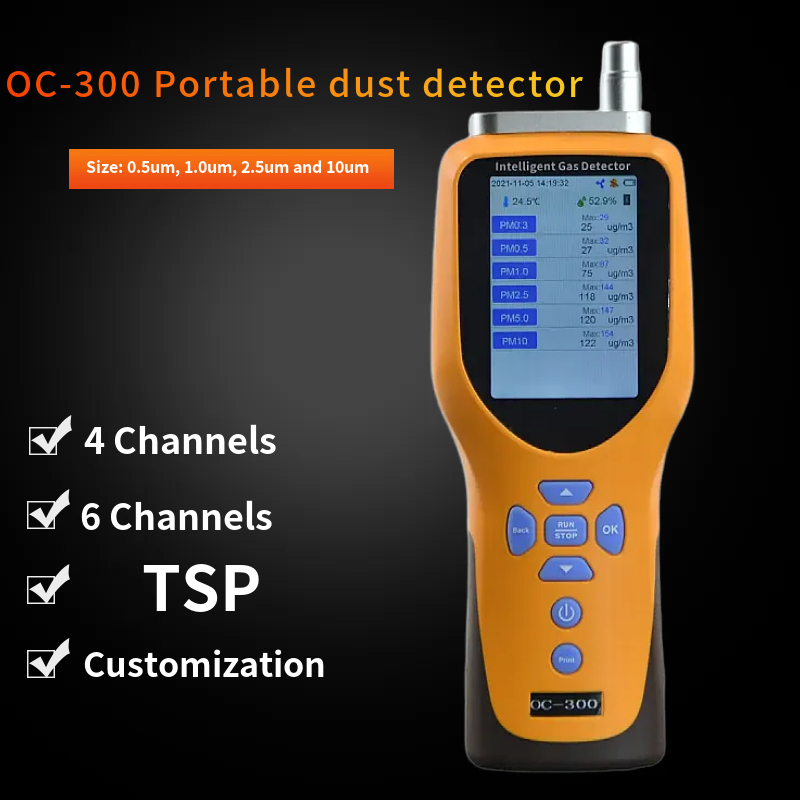

OC-300 air quality detector used to detect the air quality, for the 4 particle channels : 0.5um, 1.0um, 2.5um and 10um, with two detection mode: Quality inspection (unit of the ug/m3) and Quantity inspection (unit of the PC/L). Also with the Temperature and Humidity measurement, optional function of the gas concentration detection, it can add 3 sensors for gas detection. It’s with the data logger function to record the historic inspection data.
Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
Features:
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
3.5 inch IPS industrial grade color screen, displaying each parameter.
Channel sizes：0.5um, 1.0um, 2.5um, 10um.
Support the Temperature/ Humidity sensor.
Different mode adjustable: quantity detecting mode and quality detecting mode.
Data logger function, the capacity is 100000 group data.
Optional function of micro printer to print the measurement data.
With the function of overvoltage protection, overcharge protection, short circuit protection, anti-electrostatic interference, anti-magnetic interference.
Chinese/English operation menu.
Applications:
The Portable air quality detector can be widely used in the disease control center, health supervision, environmental monitoring, public area, family and other environment where need to detect the air quality detection.
Technical Specification:
| Light source | Laser diode(>100,000 hours MTBF) |
| Sensor | Ultra high sensitivity optical sensor |
| Particle size | 0.5um 、1.0um、2.5um、10um |
| Measuring range | 0-9999ug/m3 and 0-99999999PC/L |
| Resolution | 1ug/m3 and 1PC/L |
| Gas detection | With 1~3 gas type(Optional) |
| Tem/Humidity inspection | Temperature：-40 ～ 120℃，
Humidity：0-100%RH |
| Verification standard | According to GB/T16292-1996 and ISO14644-1 |
| Flow Rate | 2.83 L /min (0.1cfm) |
| Sample time | 30s |
| Measuring mode | Quantity mode (unit of PC/L ) and quality mode( unit of ug/m3) |
| Detect methods | Time detecting or circle detection is adjustable |
| Interface | RS232-USB |
| Data Storage function | Real-time storage or timing storage is adjustable；Storage capacity of 100000 group data，can check the history data on the counter screen |
| Print mode | Optional micro-printer, can reset the print period and print mode |
| Working environment | Working temperature: 5 ～ 45℃
Working humidity: ≤90%RH，non-condensing |
| Power supply | 4000mA rechargeable lithium battery |
| Explosion-Proof grade | ExiaⅡCT4 |
| Protection grade | IP65 |
| Body material | ABS+PC |
| Size and Weight | 220*85*55 mm（L×W×H），0.5 Kg（net weight） |
| Accessory | Box, data cable, Charger, CD |
