Product Overview
It adopts built-in adjustable pump suction sampling structure to complete remote gas extraction sampling for closed pipelines, reaction kettles and sealed workshop areas. Integrated temperature and humidity detection and temperature-pressure compensation function, effectively eliminate measurement deviation caused by complex high-temperature, high-humidity working conditions.
Equipped with large-capacity data logger supporting 100,000 groups of detection data storage, historical records can be exported to computer via matching software for safety archive and inspection report generation. Two-stage adjustable triple sound-light-vibration alarm will immediately remind staff when fluorine concentration exceeds safety threshold, to avoid fluorine poisoning and equipment corrosion accidents.
With industrial explosion-proof certification, lightweight 500g handheld body and long endurance lithium battery, it is the essential safety monitoring instrument for fluorine-related chemical manufacturing, semiconductor production and laboratory testing.
Core Features
- Professional high-sensitivity electrochemical sensor for Fluorine(F₂), anti-corrosion probe design
- 2.4-inch industrial IPS color screen, clear digital display under strong light factory environment
- Multi-unit switching support: ppm, mg/m³, %LEL, %vol, matching global industrial testing standards
- Internal sampling pump with 100~1000mL/min adjustable suction flow for long-distance pipeline sampling
- Built-in temperature & pressure compensation to maintain stable F₂ detection precision in severe environments
- Two-stage adjustable alarm threshold + sound-light-vibration triple alarm, clear warning in noisy workshops
- Massive 100,000 groups data storage, support PC data export and automatic report sorting
- Full international certification: CE, RoHS, CNEx, ATEX, meet global hazardous area safety standards
- Compact 180mm size, only 500g weight, easy to carry for field mobile inspection
- English language operation menu, simple one-button operation for on-site workers
Technical Specification:
| Gas type | Fluorine (F₂) |
| Working principle | Electrochemical sensor for Fluorine (F₂) |
| Measuring range | 0-20ppm、50ppm、200ppm; Support customized |
| Resolution | 0.01 ppm |
| Precision | ≤±3%F.S |
| Sampling method | Pump-suction sampling, flow rate of 100~1000mL/min. (Adjustable) |
| Data logger function | About 100,000 group of data capacity. |
| Response time | ≤20s/10s |
| Recovery time | ≤20s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Display | Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
| Concentration unit | %vol, %LEL, ppm, mg/m3 |
| Working environment | Working temperature: -30~60 degree;
Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 |
| Alarm mode | Audible-visual-vibration alarm |
| Dimension | 180m’m |
| Weight | 500g |

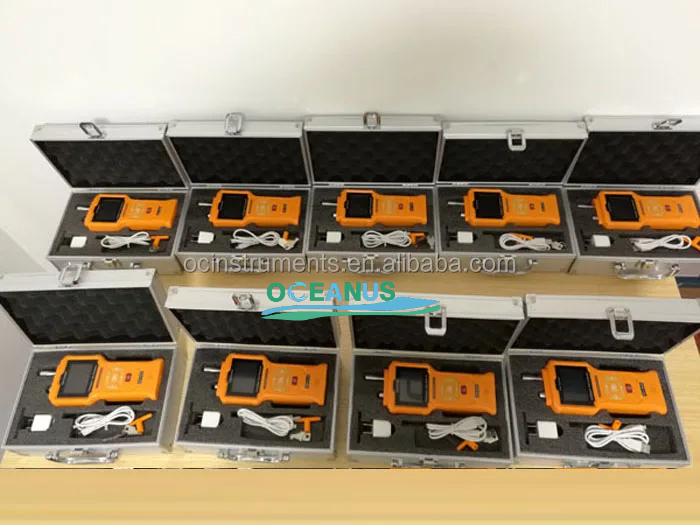

| Accessory | Box, Instruction, USB charger, Data line, Calibration cap, CD |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Application Scenarios
- Fluorination chemical plant: Real-time monitoring of fluorine toxic gas leakage in reaction workshop
- Semiconductor manufacturing: Fluorine etching process gas concentration safety inspection
- Fluorine gas storage station & delivery pipeline: Daily leakage patrol and concentration monitoring
- New energy lithium battery fluorination workshop toxic gas detection
- Laboratory fluorine gas experimental equipment safety monitoring
- Electronic material factory fluorine treatment workshop air quality testing
- Environmental hazardous waste disposal plant fluorine waste gas inspection
