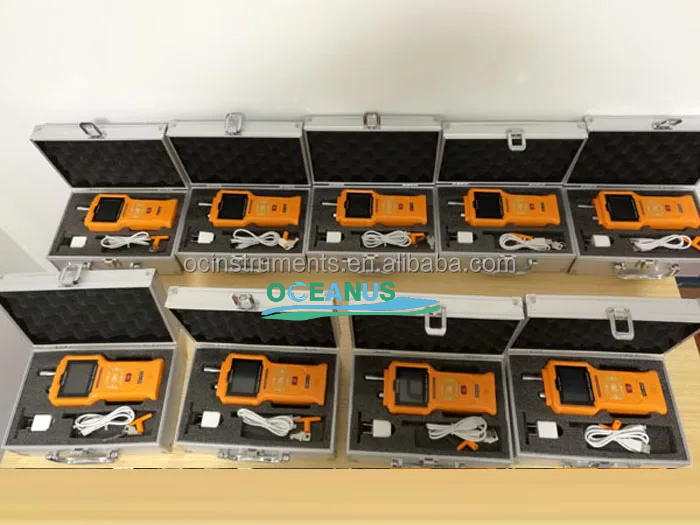

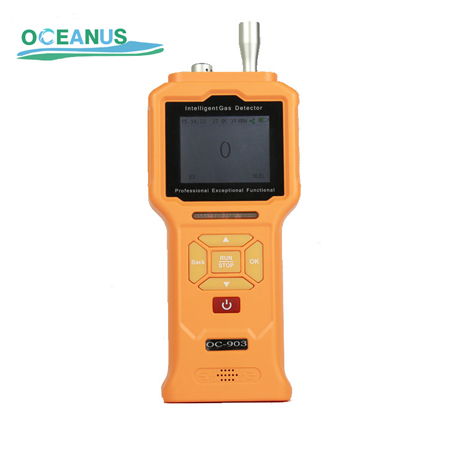

Hydrogen H2 gas detector with inner pump
OC-903 portable hydrogen gas alarm designed with inner pump, convenient to detect in narrow area or sampling from underground, with swift response. Usually applied to different industrial places, including the chemical industry, indoor air quality control, power system, lab research, industrial production, agriculture, biology, hospital, ant other enviroment need to detect the H2 gas concentration.
Features:
- The normal measuring range is 0~1000ppm, and also could be customized according to different demands.
- The original imported sensor with high accuracy to measre the concentration value.
- With the function of data logger, the history detecting data could be upload to the computer, the data storage capacity is 100000 group of data.
- OC-903 handheld gas detector we support the OEM service, if you need this, pls tell us, even for the sample order is ok.
- Also with the optional inspection of temperature/ humidity.
- At most with 4 sensor.
- Gas concentration unit is selectable of ppm or mg/m³.
Function:
Inspect the gas concentration and alarm when it up to the preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation function.
Adjustable two stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is available.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
Technical Specification:
| Gas type | Hydrogen (H2) |
| Working principle | Electrochemical sensor for Hydrogen (H2) |
| Measuring range | 0-100ppm、500ppm、1000ppm、2000ppm、40000ppm; Support customized |
| Resolution | Support customized. |
| Precision | ≤±3%F.S |
| Sampling method | Pump-suction sampling, flow rate of 100~1000mL/min. (Adjustable) |
| Data logger function | About 100,000 group of data capacity. |
| Response time | ≤20s/10s |
| Recovery time | ≤20s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Display | Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
| Concentration unit | %vol, %LEL, ppm, mg/m3 |
| Working environment | Working temperature: -30~60 degree;
Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 |
| Alarm mode | Audible-visual-vibration alarm |
| Dimension | 180m’m |
| Weight | 500g |
| Accessory | Box, Instruction, USB charger, Data line, Calibration cap, CD |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
