Product Description
Core Features
- High precision electrochemical sensor, fast response speed and reliable measurement
- Built-in optimized anti-interference algorithm, effectively suppress interference from other VOC volatile gases
- Freely adjustable alarm threshold, equipped with sound, light and vibration triple alarm reminder
- Clear LCD display, real-time display CH₂O concentration, ambient temperature and equipment operating status
- Support data recording and historical data export function
- Two styles optional: portable handheld model and wall-mounted fixed transmitter
- Low zero drift, long service life, simple structure and convenient daily maintenance
- Dustproof shell design, adapt to indoor and general industrial working conditions
Feature:
- Built-in Pump Sampling: Stable flow rate (300ml/min) for fast and accurate detection
- High Precision Sensors: Imported sensors with intelligent algorithm and temperature compensation
- Audible & Visual Alarm: Dual alarm system with ≥75dB buzzer and LED light
- Data Storage & Export: Stores up to 100,000 records, USB data export supported
- Explosion-Proof Design: Certified Ex ib IIC T4 Gb for hazardous environments
- Long Battery Life: Rechargeable lithium battery, up to 12 hours operation
Technical Parameter:
| Gas type | Formaldehyde (CH₂O) |
| Working principle | Electrochemical sensor |
| Measuring range | 0-10.00ppm、20ppm、50ppm、100ppm、200ppm, Support customized |
| Resolution | 0.01ppm or customized |
| Concentration unit | %LEL, %Vol, ppb, ppm, mg/m3 |
| Precision | ±≤3%F.S |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 100000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Working temperature | -20℃～50℃(Special requirements need to be customized) |
| Working humidity | 10%-95%RH(non-condensing) |
| Working pressure | 86Kpa~106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Aluminum alloy metal housing, ABS+PC |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery
DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Power consumption | 0.5W |
| Dimensions | 200.5*64.8*35.5mm （L*W*H） |
| Weight | 0.46KG |

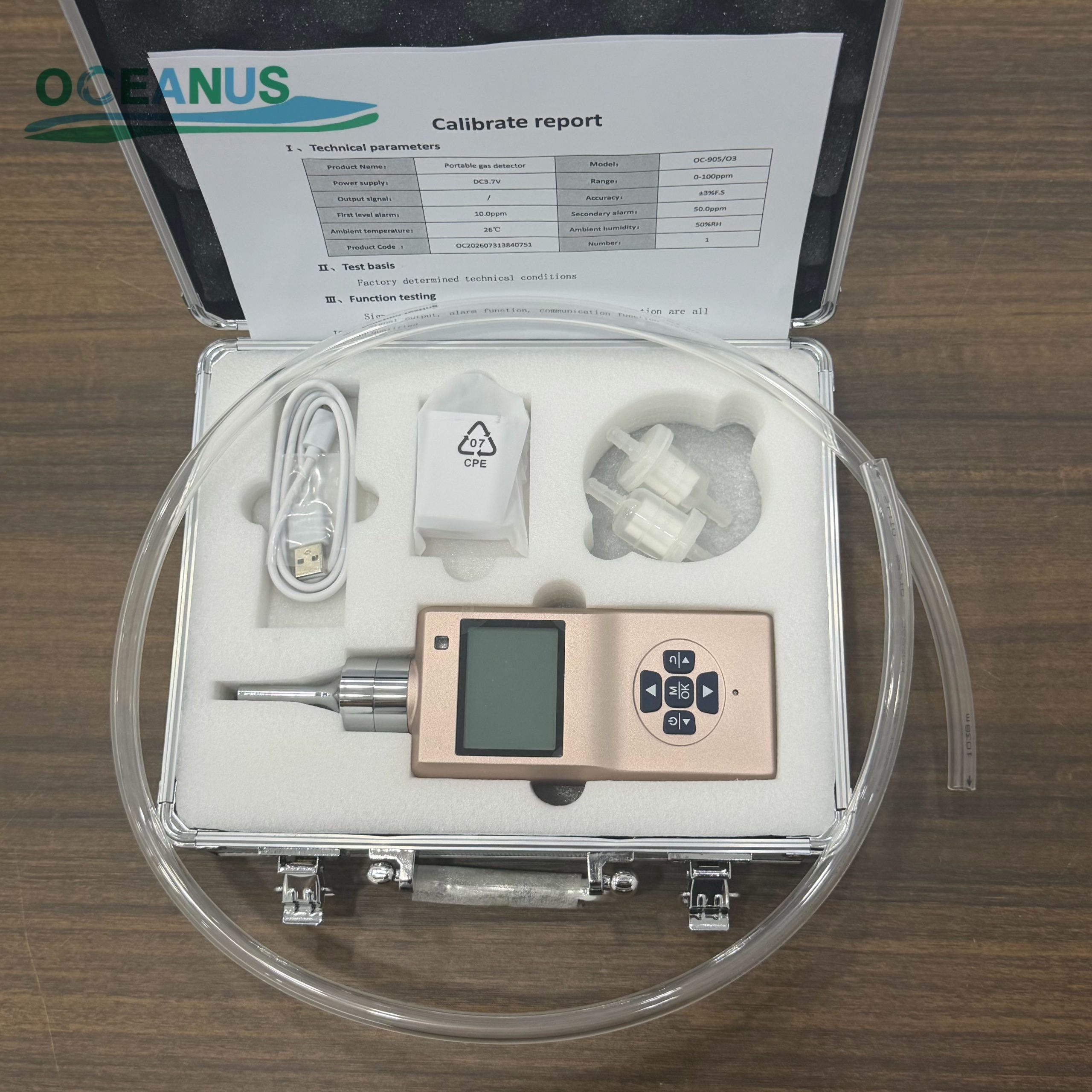

| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
| Usage scenarios | parts | picture | remarks | |
| 1 | Extend sampling distance,
Cooperate with sampling handle |
Air tube/PU tube | Normal temperature environment | |
| 2 | Detect flue and other bad environment places, filter water vapor, dust, and cooperate with the air pipe and handle | Water gas separator / filter |
|
High humidity and dust environment |
| 3 | Gas detection in food packaging bags, less destructive | A needle | Packaging bags |
Applications
- Indoor Environment Testing Industry
- Furniture & Wood Processing Factory
- Decoration & Construction Engineering
- Chemical & Resin Manufacturing Plant
- Laboratory & Scientific Research Institutions
- Automotive Interior Inspection
- Textile Processing Factory
- Public Places Air Quality Supervision
- Packaging Material Production Workshop
- Environmental Protection Inspection & Third-party Testing Institutions
