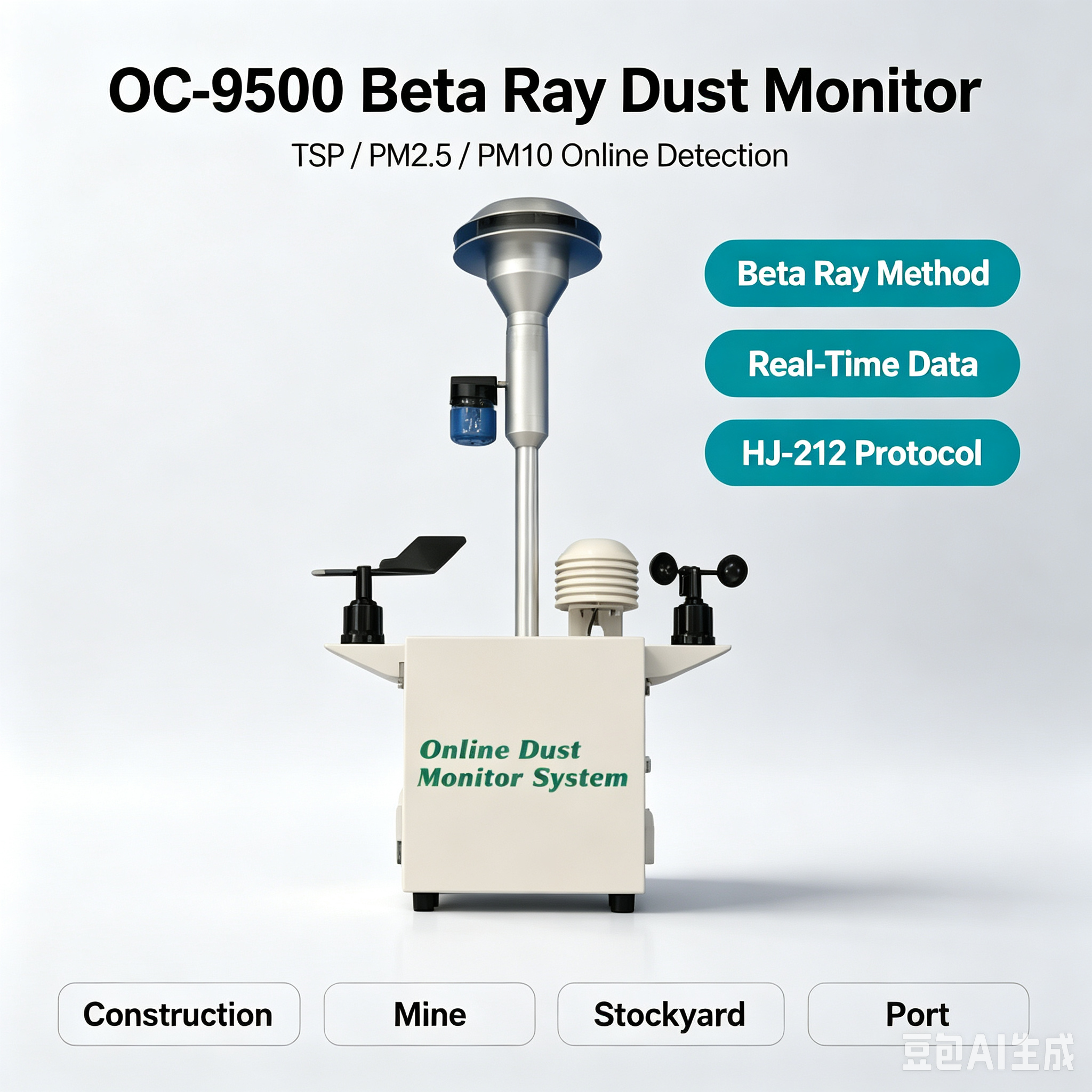

Product Overview
OC-9500 β-Ray Online Dust Monitoring System adopts beta-ray absorption principle, uses Carbon-14 as stable radiation source. Constant flow air sampling traps particulate pollutants on glass fiber filter tape. The equipment calculates dust mass concentration by detecting beta ray energy attenuation, automatically converts data to standard working condition concentration combined with sampling flow, time and environmental factors.
Built-in optional meteorological sensors including temperature, humidity, air pressure, wind speed, wind direction and noise. It realizes 24/7 unattended monitoring for fugitive dust emissions in various outdoor industrial sites.
Core Features
- Beta-ray method measures dust mass directly, stable 24/7 data without seasonal correction
- Supports TSP, PM10, PM2.5 detection with matched particle cutters
- Integrated sampling & detection design effectively reduces measuring errors
- Built-in DHS heating + temperature & humidity compensation for high-precision testing
- Stable dual-channel sampling pump with long service life
- Mass data storage, supports USB export & power-off data protection
- Remote management: calibration, diagnosis, parameter setting and program upgrading
- 4G/Ethernet communication, follows HJ-212 protocol with over 99% data transmission rate
- Optional linkage with dust suppression devices for automatic over-limit control
- IP53 industrial enclosure, stably works in harsh outdoor environments
Technical Parameters
| Items | Details |
| Monitoring Parameters | Dust (TSP/PM10/PM2.5), temp, humidity, air pressure; optional: wind speed, wind direction, noise |
| Measurement Range | 0~10000 μg/m³ |
| Indication Error | ±8% |
| Indication Repeatability | ≤0.9% |
| Zero Drift | ±0.2% FS |
| Sampling Flow Rate | 16.67 L/min |
| Flow Stability | 24h flow variation ≤±2.2%; average drift ≤±1.1%/24h |
| Clock Error | ±0.31s/24h |
| Display Resolution | 0.1 μg/m³ |
| Standard Membrane Reproducibility | ≤±2% |
| Filter Tape | Glass fiber filter tape |
| Radiation Source | C-14（Carbon 14） |
| Concentration Alarm | Arbitrary threshold setting in full range |
| Temperature | Range: -40℃~70℃, Resolution:0.1℃, Accuracy:±0.5℃ |
| Humidity | Range:0~100%RH, Resolution:0.1%RH, Accuracy:±3%RH |
| Air Pressure | 10~110kPa, Resolution:0.1kPa, Accuracy:±0.5kPa |
| Wind Speed (Optional) | 0~45m/s, Start wind ≥0.5m/s, Resolution 0.1m/s, Accuracy ±0.3m/s |
| Wind Direction (Optional) | 0~359°, Resolution 1°, Accuracy ±1° |
| Noise (Optional） | 30~130dB, Resolution 0.1dB, Accuracy ±0.5dB |
| Power Supply | AC 220V ±5% 50Hz / Optional DC 24V |
| Average Power Consumption | 60W |
| Operating Environment | -30℃ ~ 55℃, ≤100%RH (non-condensing) |
| Protection Class | IP53 |
Application Fields

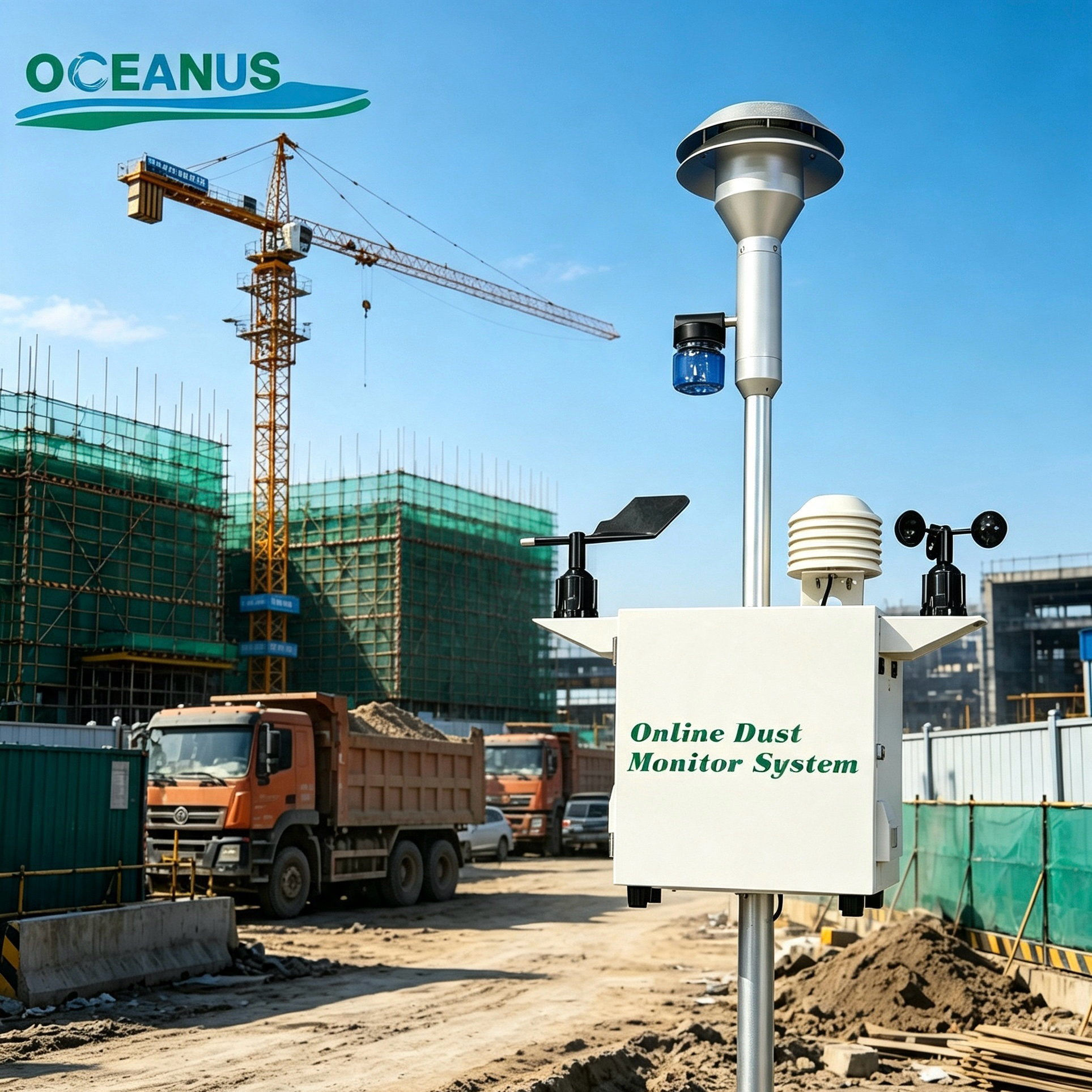

- Construction site real-time fugitive dust online monitoring
- Industrial plant unorganized particulate emission supervision
- Coal yard, bulk material stockyard dust concentration monitoring
- Port & terminal bulk cargo loading-unloading dust detection
- Urban road floating dust continuous monitoring
- Open pit mine, quarry environmental dust monitoring
Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
After-sales Service
1. 12 months whole machine warranty period, lifelong paid maintenance service
2. Provide complete English operation manual, installation guide, calibration document
3. Global remote technical support for debugging, parameter configuration and software upgrade
4. Supply vulnerable spare parts (filter tape, sampling pump, cutter) with factory cost price
5. Support OEM & ODM customized service for appearance, function, communication protocol
