Description:

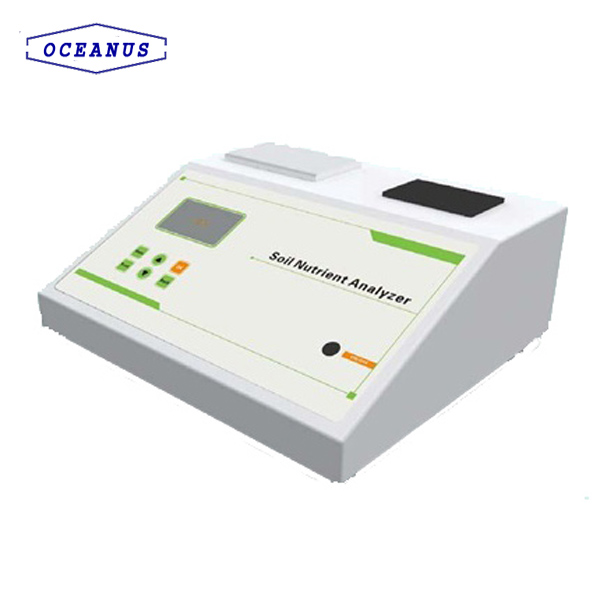

Soil Nutrient Analyzer can quickly test the N,P,K organic matter, salinity and PH in the soil, fertilizer and plants, The machine can store and print data, has complete chemicals which are for free at the first time.
Features:
Quickly test the N, P, K, organic matter, salinity, and pH in the soil, fertilizer and plants.
Using semi-permanent power, long product lifetime.
Large capacity memory, data can be uploaded to PC
Real-time refreshing test results, easy to monitor.
Reagents easily preserved, long validity, and low cost for testing.
128*64LCD display, user interfacing simple and attractive, easy to use.
Large capacity storage (time, place, fertilizers), datum can be checked at any time.
Print testing data, sample number, sample items, sample contents, variety and so on.
Can set crop variety, crop yield, fertilizer variety, and automatically count the fertilizing amount.
With the function of time display, can automatically record and save the time of tested sample.
Technical parameter:
| Soil Nutrient technical parameter | ||
| Stability | Absorbency of light drift＜0.003 | |
| Repeatability | Absorbency of light＜0.005 | |
| Linearity errors | red light for Copper sulfate, and blue light forpotassium bichromate ＜ 3.0% | |
| Sensitivity | Red light≥4.5×0‐5
Blue light≥3.17×10‐3 |
|
| Wavelength range | Red light 620±5nm; Blue light440±5nm | |
| Anti‐Knocking performance | Qualified | |
| pH technical parameter | ||
| Measuring range | 1‐14 | |
| Error | ±0.1 | |
| Salinity technical parameter | ||
| Testing range | 0.01% ‐1.00% | |
| Error | ±5% | |
| Soil moisture technical parameter (OC‐7PC) | ||
| Moisture unit | % (m³/m³) | |
| Accuracy | ±2% | |
| Resolution | 0.1% | |
| Moisture content rate testing range | 0‐100% | |
| Instrument technical parameter | ||
| Display mode | LCD display | |
| Interface | USB | |
| Working environment | 0~40℃
35~85%RH |
|
| Alternating current (AC) | 220V‐240V, 50Hz, adapter: 12V/3A | |
| Size | 32*28*11cm | |
Models for Soil Nutrient analyzer:
| Model | Function |
| OC-IV | Test N, P, K, Organic Matter;
With storage function; Built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs; Without printing function. |
| OC-6A | Test N, P, K, Organic matter, Soil pH, Soil Salinity;
With storage function; Built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs; With printing function. |
| OC-6PC | Based on OC-6A, with a software, be able to connect with the computer for data storage. |
| OC-7PC | On the basis of the OC-6PC, add the parameter of Soil Moisture. |
If any quesitons of the Soil nutrient tester, welcome to contact us:
