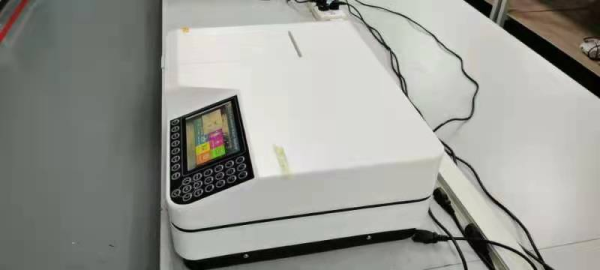

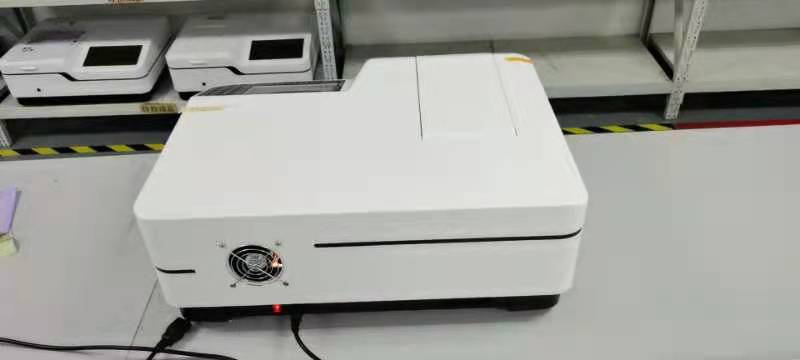

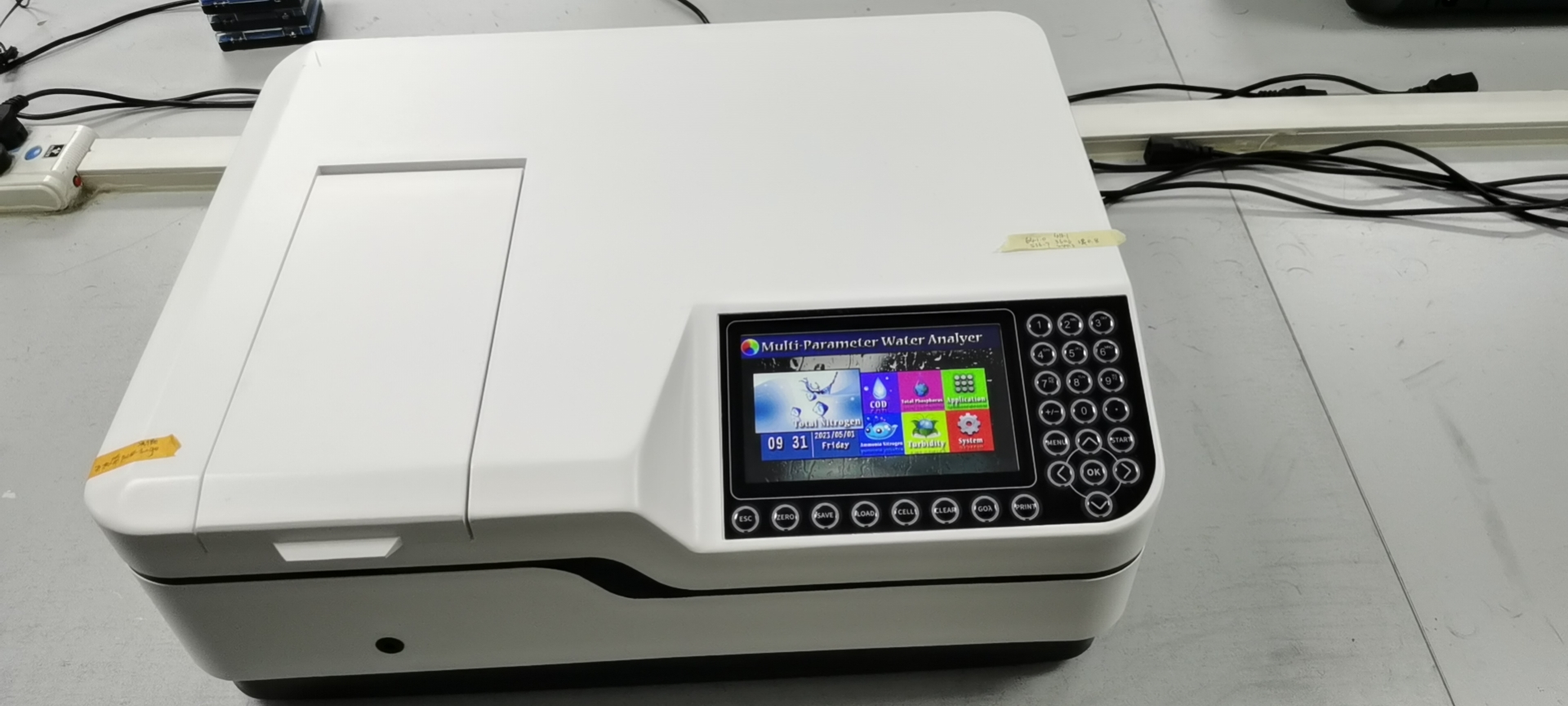

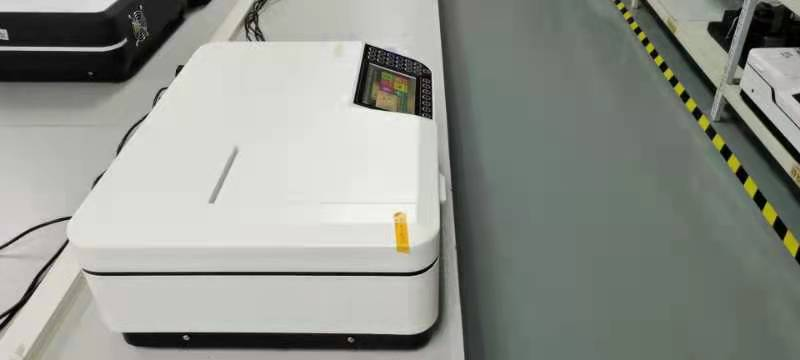

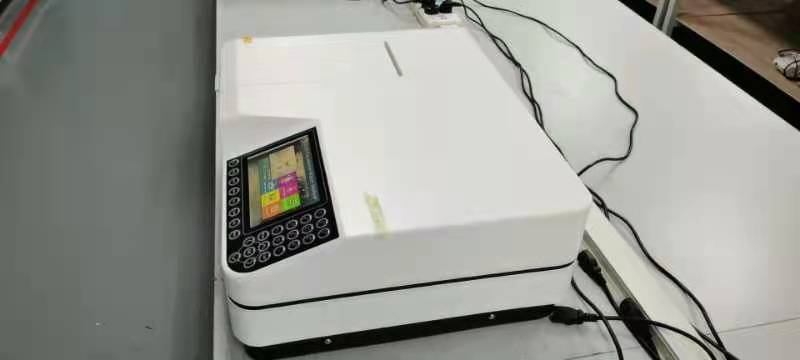

OC-YT4 Multi-parameter water quality tester
Description:
The eighth-generation four-parameter water quality rapid tester is a water quality monitoring instrument tailored for the precise measurement of COD, ammonia nitrogen, total phosphorus, total nitrogen, and heavy metal ions in the water with many years of experience in the production and development of water quality instruments. The instrument is easy to operate, accurate, and has complete functions. It supports users’ self-built curves and can meet various measurement needs of users.
Features:
The 7-inch color display has intuitive functions and can complete all measurements without the aid of a computer;
Omron touches the button, it feels more comfortable to use, and can be used continuously for tens of millions of times;
Multi-format mobile data makes experiment reports easier;
Abundant scalability, support users to build their own curves, to meet various measurement needs of users;
Curve correction, support curve automatic correction and automatic saving;
High-quality long-life light source, stronger light source energy;
Collocation dedicated pre-made reagents, the experiment is easy;
Technical Parameter:
| Items | Description | Specification |
| COD | Scope of test | 0-10mg/L（Permanganate method）
10-100mg/L（Low concentration） 100-10000mg/L（High concentration） |
| Anti-chlorine interference | [Cl-]﹤1000mg/L （No effects）
[Cl-]﹤8000mg/L(Optional) |
|
| Ammonia nitrogen | Scope of test | 0.01-100mg/L |
| Total phosphorus | Scope of test | 0.002-15mg/L |
| Total nitrogen | Scope of test | 0.01-80mg/L |
| Optical system | Double beam ratio detection |
| Detection accuracy | ≤±5% |
| Repeatability | ≤±2% |
| Measuring time | 10 minutes-20 minutes |
| Parameter switching method | Automatic switching |
| Colorimetric method | Cuvette |
| Working curve | 500 working curves can be stored, supporting three modes: segmented curve, single-point curve, and customer-built curve |
| Stability | ±0.001A/10min |
| Data storage | 5 million sets of test data can be stored, and can be freely recalled and viewed |
| Data transmission | RS-232C serial port (printing)
USB drive (online) USB HOST (connect to U disk) Bluetooth (optional) |
| Printing method (optional) | Thermal printer, dot matrix printer (color-proof, permanent data storage) |
| light source | Imported deuterium lamp, tungsten lamp, light source life is longer |
| Colorimetric cell | Standard quadruple colorimetric cell (optional other colorimetric cells) |
System specification:
| Optical system | Double beam ratio detection |
| Detection accuracy | ≤±5% |
| Repeatability | ≤±2% |
| Measuring time | 10 minutes-20 minutes |
| Parameter switching method | Automatic switching |
| Colorimetric method | Cuvette |
| Working curve | 500 working curves can be stored, supporting three modes: segmented curve, single-point curve, and customer-built curve |
| Stability | ±0.001A/10min |
| Data storage | 5 million sets of test data can be stored, and can be freely recalled and viewed |
| Data transmission | RS-232C serial port (printing)
USB drive (online) USB HOST (connect to U disk) Bluetooth (optional) |
| Printing method (optional) | Thermal printer, dot matrix printer (color-proof, permanent data storage) |
| light source | Imported deuterium lamp, tungsten lamp, light source life is longer |
| Colorimetric cell | Standard quadruple colorimetric cell (optional other colorimetric cells) |
Applications:
Suitable for industrial wastewater detection;
Applicable to the detection of urban domestic sewage;
Applicable to sewage treatment engineering inspection;
Suitable for water quality testing of surface water in rivers, lakes, and seas;
Widely used in laboratory water quality testing in industry, municipal administration, environmental protection, education and scientific research, disease control and other fields;
