Description:

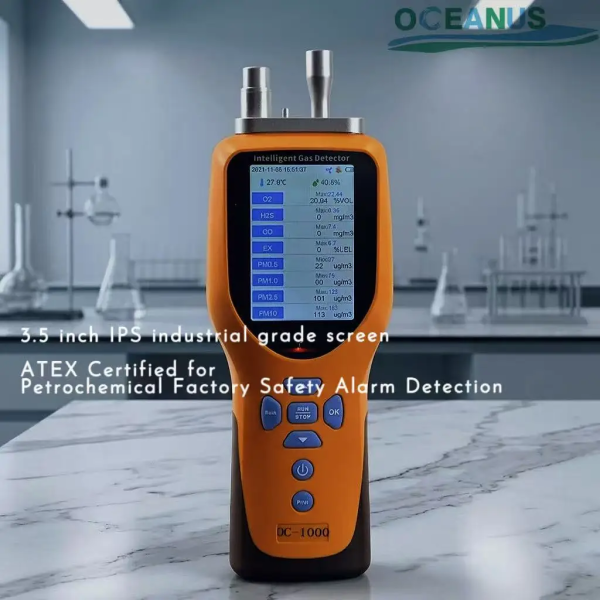

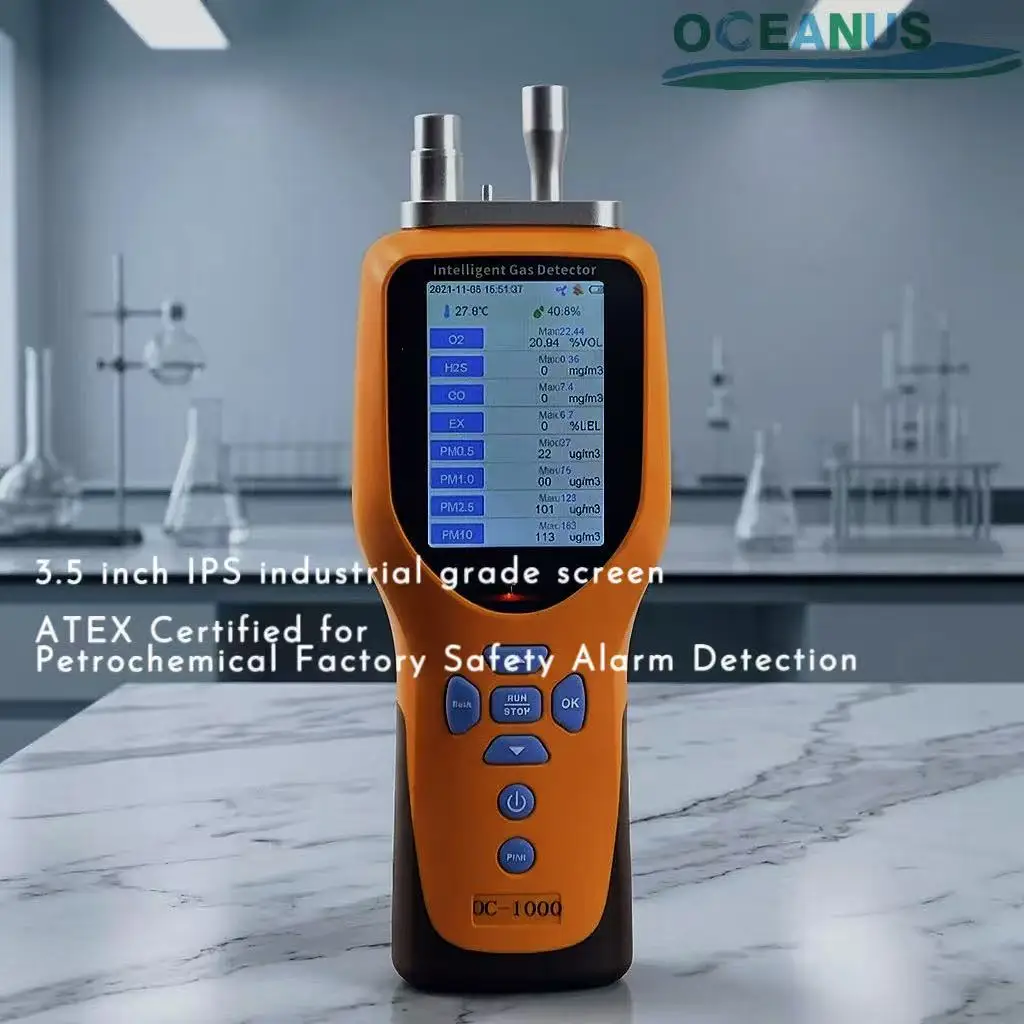

Oceanus OC-1000 portable odor gas detector supports customized configuration of TVOC, ammonia (NH₃), hydrogen sulfide (H₂S) and other gases. It precisely detects waste gas and odor from garbage stations, sewage plants and chemical factories.
Equipped with high-precision sensors, data logging and sound-light alarm functions, the explosion-proof housing fits on-site environmental law enforcement and pollution source inspection. Direct supply from manufacturer with customizable multi-gas combinations.
Features:
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
3.5 inch IPS industrial grade color screen.
Support Chinese or English operation menu.
Gas concentration unit available for PPM, %VOL, mg/m3.
For 1~5 gas detecting, gas type all be customized, supporting the PM2.5 particle counter sensor, and humidity sensor, etc.
Internal sampling pump for suction, the suction strength is adjustable in different level.
Explosion proof grade is Exia ⅡCT4.
Function:
Inspect the gas concentration and alarm when it reaches preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is available.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
Applications:
It is widely applied for environmental inspection of landfill, sewage plant, chemical factory, breeding farm and incineration station, as well as air quality testing in laboratories, disease control centers, public areas and residential spaces.
Technical Parameter:
| Gas type | Odor gas, TVOC, NH3, H2S Gas, etc. Customized by customers. | ||
| Measuring Range | NH3: 0~100ppm, H2S:0~100ppm, Odor: 0~100ppm, TVOC: 0~50ppm
Customized by customers. |
||
| Working principle | Catalytic combustion, Electrochemistry, NDIR, PID, etc. Customized by gas. | ||
| Sampling mode | Pump-suction sampling | ||
| Measuring range | According to different gas type | ||
| Resolution | According to different gas type | ||
| Precision | ±3%F.S (or customized) | ||
| Temp & Humidity testing range | Temperature: -40~120℃; | ||
| Humidity: 0~100% RH | |||
| Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||
| Printer | Optional mini-printer. | ||
| Response time | ≤20s(T90) | Recovery time | ≤20s |
| Repeatability | ≤±1% | Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
| Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
| Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
| Working temperature | -40~120℃ | Working humidity | 0-95%RH(non-condensing) |
| Working pressure | -30Kpa ~ 100Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 | Shell material | ABS+PC |
| Dimensions | 220*88*55mm | Weight | 0.5KG |
| Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Our After-sales service:
1.OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
