Description:

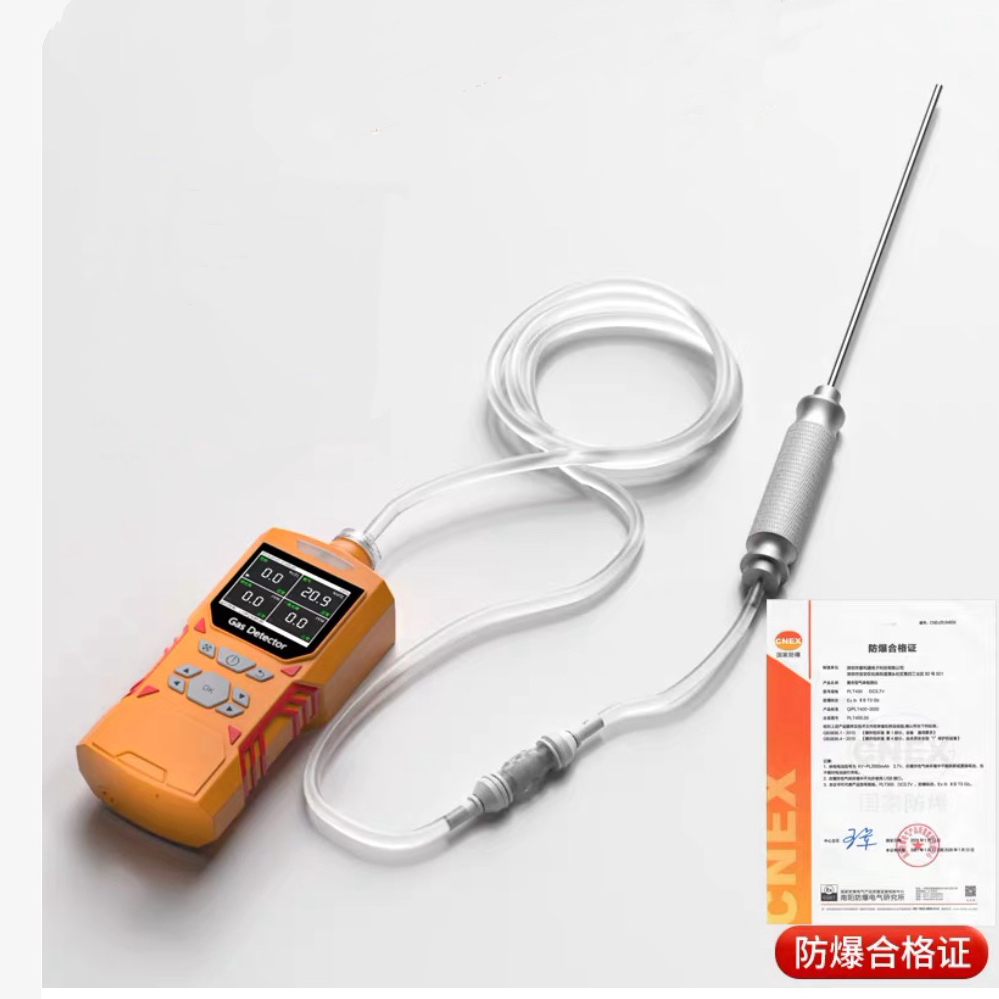

OC‑901 portable CS2 gas detector is an industrial‑grade portable gas monitoring instrument. It is equipped with original imported electrochemical sensor for CS2 (Carbon Disulfide). Built‑in pump‑suction sampling realizes fast gas absorption and rapid response, which can accurately measure CS2 concentration and detect gas leakage on site.
CS2 is highly‑toxic, extremely volatile and highly flammable chemical vapor. Its vapor is heavier than air and tends to accumulate in low‑lying zones, with wide explosive limit range in air. It will damage human central nervous system and cardiovascular system via inhalation or skin absorption. It is widely used as raw material & solvent in viscose fiber production, rubber accelerator synthesis, pesticide intermediate manufacturing and chemical laboratories. Leakage from tanks, pipelines and reaction vessels may lead to personnel poisoning, flash‑fire and explosion hazards. This instrument is widely used for viscose plant patrol, rubber‑chemical workshop inspection, solvent storage safety check, pesticide factory monitoring and confined‑space spot‑check.
The device is fitted with a 2.4‑inch color display, supporting free switch between English and Chinese operating menu. Once gas concentration exceeds alarm threshold, voice, audible‑visual and vibration triple alarm will be activated to remind site personnel of potential hazards.
Built‑in 3.7V 4000mAh rechargeable lithium battery provides continuous working time more than 10 hours. Back clip design allows easy wearing during field inspection. IP65 protection and Ex ib IIB T3 explosion‑proof rating make it capable of complex and harsh industrial environment. Alarm data storage function supports historical record review. Aluminum alloy carry box is supplied for convenient transportation and storage.
OC‑901 supports customized 1‑4 sensor channels. It can detect CS2 independently, and also supports adding H2S, CO, O2 and other gas sensors for combined multi‑gas measurement.
Features:
It used original imported sensor with good quality and high accuracy.
It with the inner pump, sampling speed more fast.
It can be combined with 1~4 different gas sensors for different gas type.
2.4 inch colorful display, support both English and Chinese operating menu.
With audible-visual-vibration alarm mode, also with the voice alarm.
With a back clip, which is easy to carry when working.
Powered by rechargeable battery with big capacity which support a long working period.
Technical Parameter:
| Gas type | CS2 (Carbon Disulfide) |
| Sensor Type | Electrochemical sensor for CS2 (Carbon Disulfide) |
| Sensor life | 2~3 years |
| Measuring range | 0-50ppm、100ppm or customized |
| Display Information | Gas types, Concentration value, Concentration unit, Time, Battery status, Alarm status, etc. |
| Display | 2.4 inch colorful screen |
| Alarm Storage | With alarm data storage function, can review the data from the detector.. |
| Sampling mode | Pump-suction sampling (Available for connection with external pump) |
| Operating Language | Chinese or English operating menu is able to be changed freely. |
| Alarm Mode | Audible-visual-vibration alarm, sound≥75dB |
| Power Supply | 3.7V, 4000mAh rechargeable lithium battery, continuous working period over 10 hours. |
| Explosion-proof Grade | Ex ib IIB T3 |
| Protection Grade | IP65 |
| Working Environment | Working Temperature: -20℃～50℃
Working Humidity: 0-95%RH (non-condensing) |
| Body Material | ABS and PC |
| Package | Aluminum alloy box |
| Dimensions | 190*75*47mm |
| Weight | 376g (with charger) |
| Warranty | 1 years |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirements for further discussion.
Applications:
- Viscose fiber & rayon manufacturing plant workshop and tank farm patrol
- Rubber chemical accelerator production process safety inspection
- Pesticide and fine‑chemical intermediate synthesis workshop monitoring
- Carbon disulfide solvent storage warehouse and loading‑unloading area check
- Chemical laboratory and hazardous‑chemical handling site testing
- Confined‑space inspection for toxic‑flammable carbon disulfide vapor hazard
