Description:
Key Features

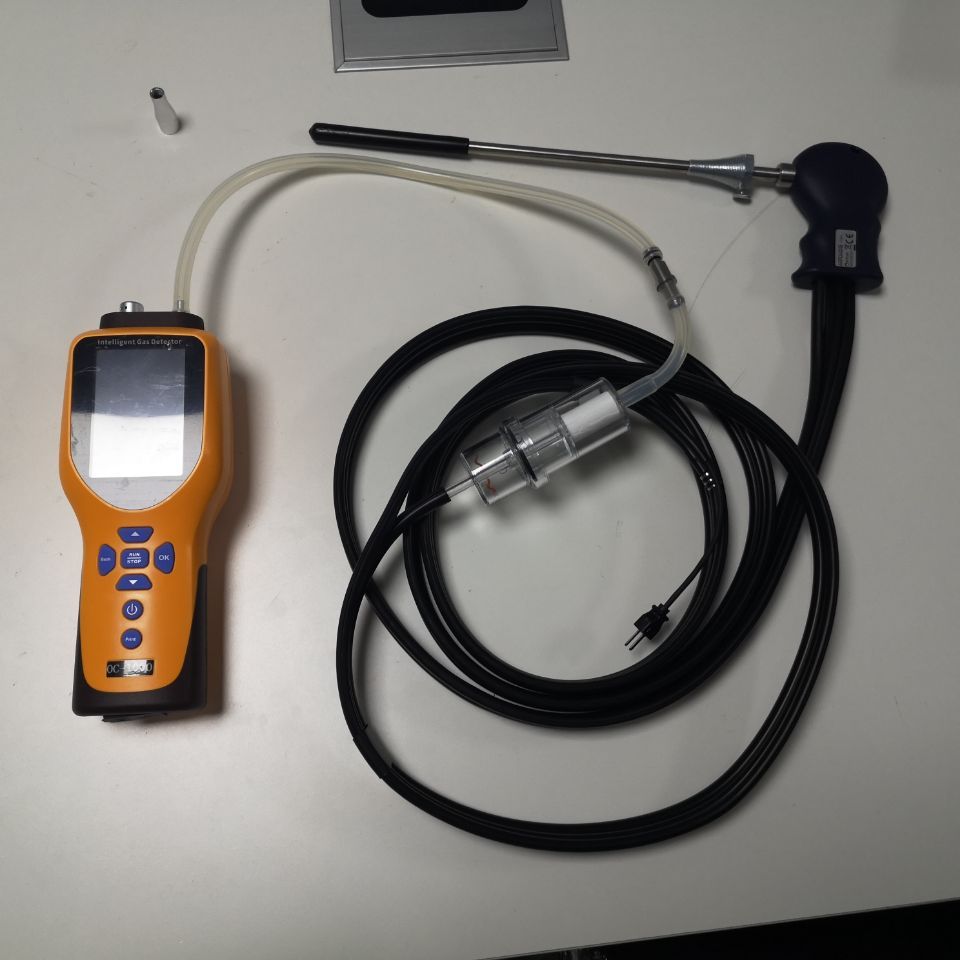

- Pump Suction Sampling
Built-in sampling pump actively draws air into the detection chamber, helping reduce response time and improve data consistency.
- 5 in 1 Gas Detection
Simultaneously monitors CO, H₂S, SO₂, O₂ and TVOC, supporting flexible gas configuration according to site requirements.
- Laser Dust Detection
Adopts laser scattering principle for particulate matter detection, suitable for PM2.5, PM10 and TSP concentration monitoring.
- Temperature and Humidity Monitoring
Integrated temperature and humidity module provides more complete environmental data for field assessment.
- 3.5 Inch Industrial Color Screen
Clear display for real-time concentration, measurement units, alarm status and historical trend curves.
- Real-Time Trend Curve
Graphical display helps users observe pollution changes more intuitively during inspection.
- Adjustable Two-Stage Alarm
Supports adjustable alarm thresholds for different gases, allowing customized safety warnings for various working conditions.
- Large-Capacity Data Storage
Stores a large number of detection records, supporting historical query and post-inspection analysis.
- Computer Data Export
Supports data export and analysis through computer software, convenient for report sorting and management.
- Optional Micro Printer
Available mini thermal printer allows on-site data printing for quick record keeping.
- Portable Handheld Design
Compact and lightweight for easy carrying in narrow spaces, tunnels, workshops, manholes and emergency scenes.
Core Detection Parameters
| Parameter | Detection Function | Application |
|---|---|---|
| CO | Carbon Monoxide detection | Industrial combustion, toxic gas leakage, confined space safety |
| H₂S | Hydrogen Sulfide detection | Sewage treatment, manhole, pipeline maintenance, odor risk |
| SO₂ | Sulfur Dioxide detection | Industrial emission, chemical site, acid gas monitoring |
| O₂ | Oxygen detection | Hypoxic and oxygen-enriched environment safety check |
| TVOC | Total Volatile Organic Compounds | Indoor air quality, industrial odor, volatile organic pollution |
| Dust | PM2.5 / PM10 / TSP | Particulate matter concentration monitoring |
| Temperature | Ambient temperature measurement | On-site environmental condition assessment |
| Humidity | Relative humidity measurement | Comprehensive environmental monitoring |
Technical Parameter:
| Main Detectable Gas | CO, H2S, SO2,O2, TVOC, Customizable gas types | ||
| Measuring Range | CO: 0~1000ppm,
H2S: 0~100ppm, SO2: 0~20ppm, O2: 0~25%vol, TVOC: 0~50/100/200ppm Support customized. |
||
| Working principle | PID for TVOC, Electrochemical for CO, H2S, O2, SO2. Customized gas sensors | ||
| Sampling mode | Built-in adjustable pump suction sampling | ||
| Measuring range | Support customization | ||
| Resolution | 0.01ppm | ||
| Precision | ±3%F.S (or customized) | ||
| Temp & Humidity testing range | Temperature: -40~120℃; | ||
| Humidity: 0~100% RH | |||
| Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||
| Printer | Optional mini-printer. | ||
| Response time | ≤20s(T90) | Recovery time | ≤20s |
| Repeatability | ≤±1% | Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
| Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
| Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
| Working temperature | -40~120℃ | Working humidity | 0-95%RH(non-condensing) |
| Working pressure | -30Kpa ~ 100Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 | Shell material | ABS+PC |
| Dimensions | 220*88*55mm | Weight | 0.5KG |
| Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
