Portable Gas Detector

Air Quality Dust Monitor

OC-1000 air quality dust monitor .Detectors that detect gas and dust simultaneously can be customized. We will continue to expand our business scope, deepen cooperation with the international market, and make unremitting efforts to achieve the long-term development of the company and the common prosperity of our customers.

Get A Quote
Contact Us

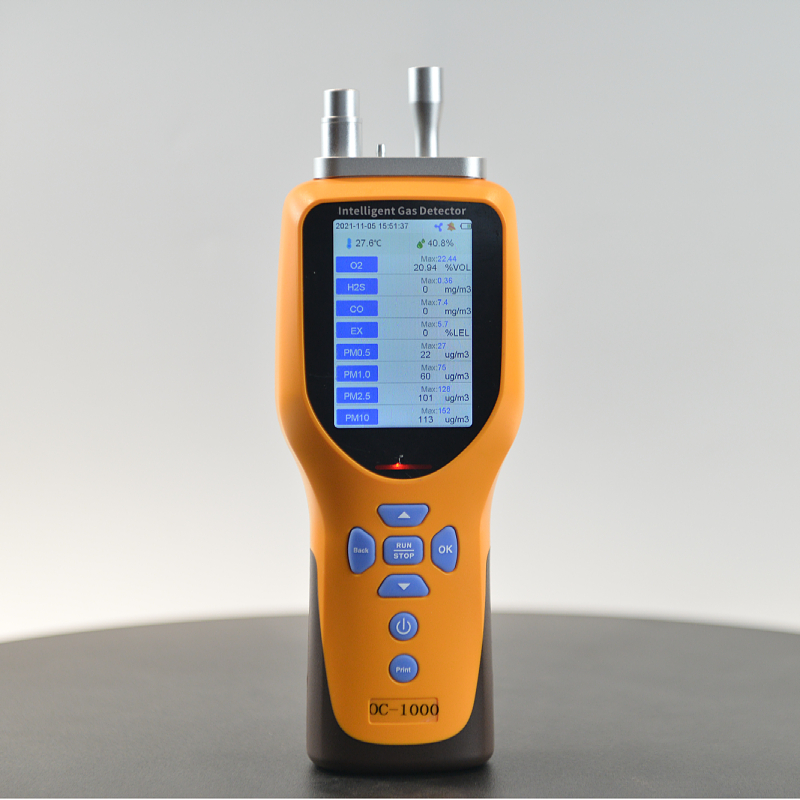

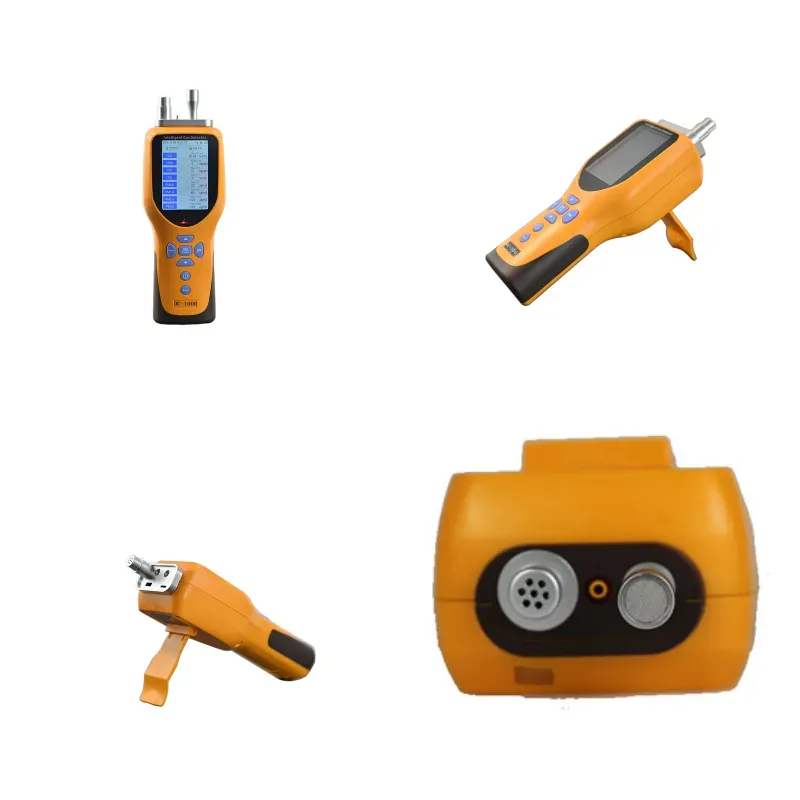

 OC-1000 air quality dust monitor

OC-1000 multi gas detector

Core Strengths

The emergence of customizable gas detectors aims to provide users with a comprehensive and high-performance gas detection solution. This product boasts the following significant advantages:

Self-Constructed Closed Loop Of Industrial Integration

Realise the closed loop of design,production and supply chain to ensure the lifeline of quality.

Powerful Brand Influence

With excellent products and services, Henan OCEANUS Import and Export Trading Co., Ltd.’s gas detectors have been exported to more than 30 countries around the world and have won widespread praise.

10dce5128334dcf3af620f375ad2e74

Highly Customizable

Tailored to the needs of different industries and scenarios, this product offers highly customizable options. Users can select gas types, range of concentrations, and alarm methods according to their specific requirements, achieving personalized gas detection solutions.

Flexible Alarm Value Adjustment Function

The flexible alarm value adjustment function caters to the diverse needs of different scenarios.





Product Instruction:

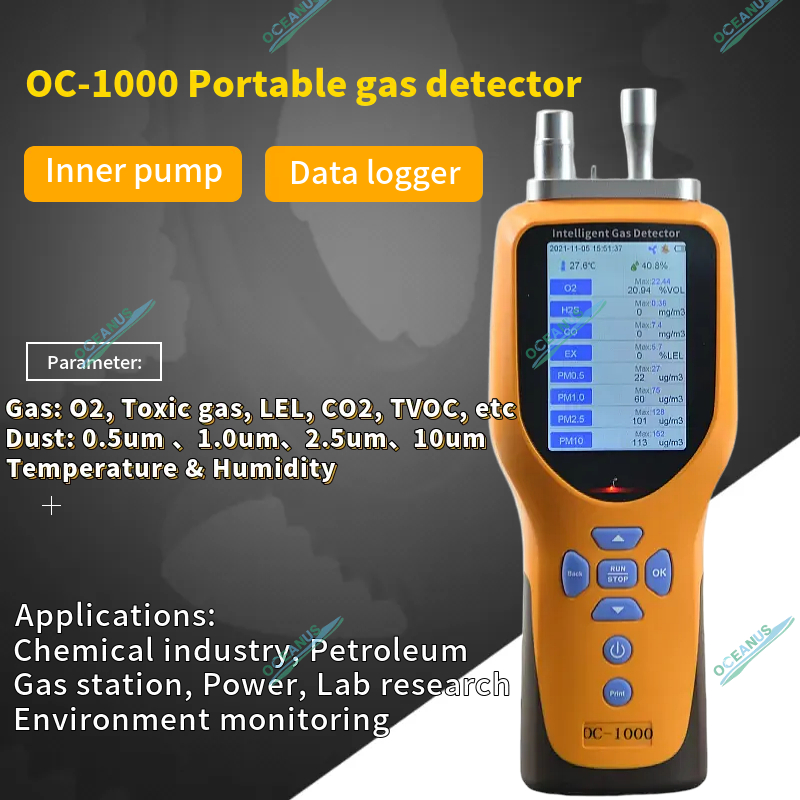

OC-1000 portable carbon monoxide detector. It can detect up to 5 kinds of gases at the same time, and can also detect temperature and humidity, particulate matter and dust. Measuring range and gas type can be customized according to customer requirements. It has functions such as historical record log, real-time curve, target calibration, and alarm setting.

Features:

Built-in sensors measure gas concentrationTemp, Humidity.

Optional mini-printer.

Temp&Humidity testing range:Temperature: -40~120℃; Humidity: 0~100% RH

The measuring range and gas type can be customized according to customer requirements.

Multi-colored LED light bar indicates the level of leakage detected

Low battery indicator

Dimensions: 220*88*55mm

Weight:0.5KG

Particle filter, box, instruction, USB charger , data line, calibration cap.

Audible-visual-vibration alert.

With CE, ROHS,EPA certification.

product-1476-886

Our Service Processes

Pre-sales Consultancy

Confirmation of order

Production

Multi-Channel Shipping

After-sale Services



photobank 4



Technical Parameter:

Gas type Combustible gas, Toxic gas, Oxygen, Carbon Dioxide, TVOC, etc.
Working principle Catalytic combustion sensor for Combustible gas;

Electrochemical sensor for Toxic gas and Oxygen gas;

NDIR sensor for CO2, CH4, SF6;

PID sensor for TVOC gas.

Particle size Optional particle sensor of the channels: 0.5um, 1.0um, 2.5um, 10um
Particle testing mode Quantity testing(PC/L) and Quality testing(ug/m3)
Sampling mode Pump-suction sampling
Measuring range According to different gas type
Resolution According to different gas type
Precision ±3%F.S (or customized)
Dust Temp & Humidity testing range Temperature: -40~120℃;

Humidity: 0~100% RH

Data storage function With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer.
Printer Optional mini-printer.
Response time ≤20s(T90) Recovery time ≤20s
Repeatability ≤±1% Linearity ≤±1%
Zero drift ≤±1%(F.S/year) Concentration unit ppm, %vol, %lel, mg/m3
Display LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery.
Operation language Chinese/English Alarm mode Audible, visual, vibration
Gas Working temperature -30~60℃ Working humidity 0-95%RH(non-condensing)
Working pressure 70Kpa ~ 200Kpa Explosion-proof grade Ex ia IIC T4 Ga
Protection grade IP65 Shell material ABS+PC
Dimensions 220*88*55mm Weight 0.5KG
Standard accessory Particle filter, box, instruction, USB charger , data line
