Air Quality Monitor System

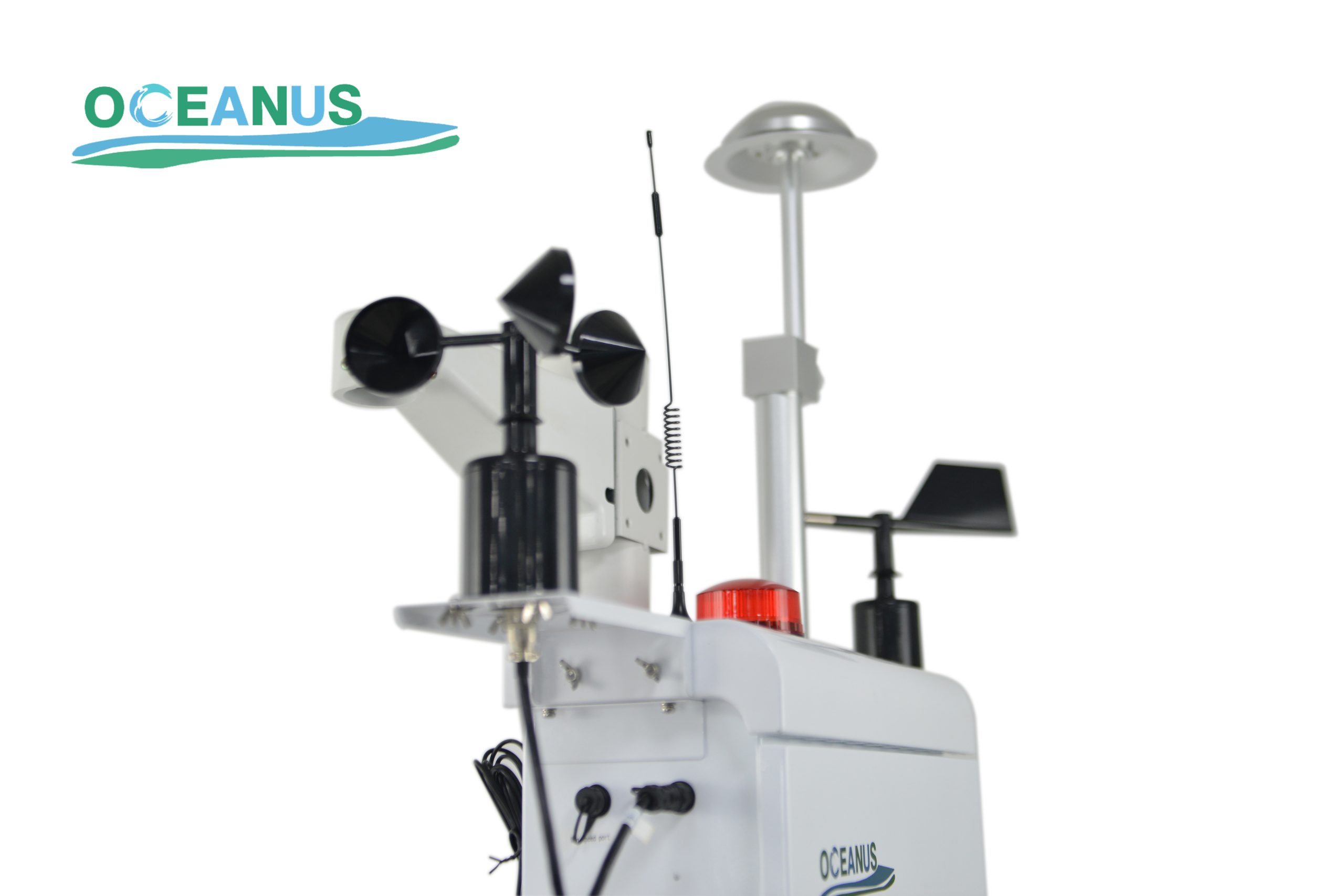

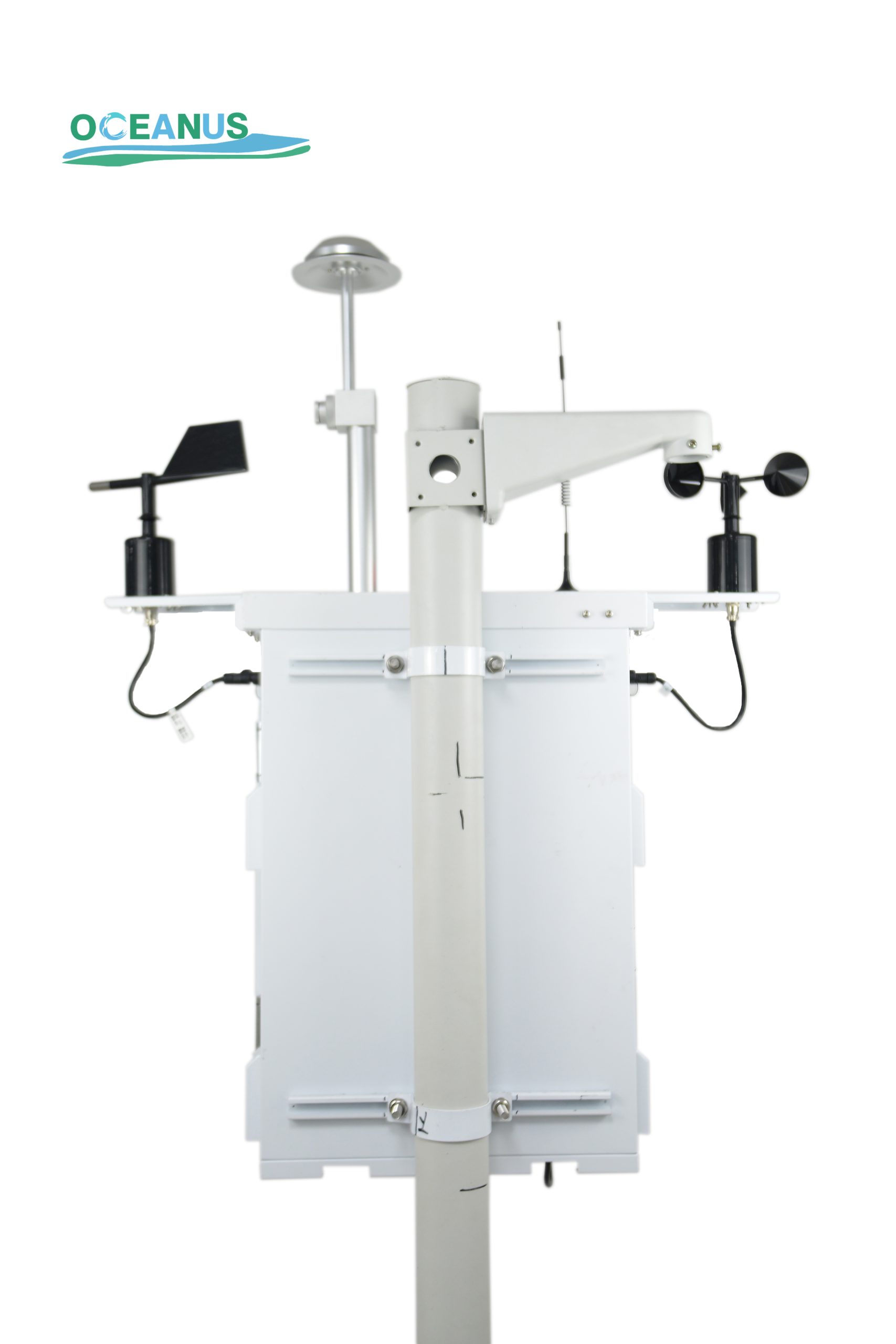

AQM-09 Air Quality Monitoring Station

  • Air quality detector
  • Air quality monitor
  • Air quality monitor station
  • Air quality monitr system
  • Product description: AQM-09 Air Quality Monitoring Station for air pollution (CO, O3, SO2,NO2), PM2.5, PM10, Temperature, Humidity, Temperature, Humidity, Wind speed, Wind direction, Air pressure, Rain.
Get A Quote
Contact Us

Description:

The AQM-09 Air Quality Monitoring Station can measure outdoor air pollutants in real-time, measuring data quickly and accurately. It can be customized for different applications demands, the measurement parameter can be choose from the following: the gas type Ozone(O3), Nitrogen Dioxide(NO2), Sulfur Dioxide(SO2), Carbon Monoxide(CO), Particulate matter PM2.5 and PM10, also the Noise, Meteorological parameters (including of Temperature, Humidity, Wind speed, Wind direction, Barometric pressure ), etc.

Features:

Installed with the famous brand sensor, with quick response, good linearity, stable performance and high resolution, the minimum unit up to ppb;

Designed with the all-in-one type and easy installation;

The modular design makes the later maintenance very convenient;

With the function of remote parameter correction, can save the costs;

With the built-in pump, respond quickly more than the normal diffusion sampling type;

With the Double-layer protection box, preventing it from external environment influence;

It’s with the Wireless network adapter, transmitting the data by GPRS, also with optional RS232 connection to display the data on the LED display screen;

With the Remote data acquisition system.

The Air quality monitor station with many different applications:

Pollution control in traffic environment;

Road and tunnel pollution monitoring;

Urban air quality monitoring;

Emission monitoring of particulate and pollution sources;

Long-term air quality trends analysis;

Short-term atmospheric environmental impact assessment;

Environmental monitoring in residential areas, schools, Hospitals;

Park / forest environmental monitoring;

Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc.

Technical Parameter:

Items Description Specification
Particle Modules Monitor method Continuously, automatically and real-time
Working principle Light scattering technique
Measurement data PM2.5, PM10,TSP
Measuring range 0~1000ug/m3 (Range can be extended)
Response time ≤60s
Measuring time 0.1min (Shortest measurement time)

1min(Standard measurement time)

Minimum detection limit ≤0.001 mg/m3
Instrument parallelism ≤±10%
Data validity >75%
Dehumidification With the automatic dehumidification function module
Alarm function With high concentration alarm function, the platform can configure the alarm threshold
Gas modules Monitor method Continuously, automatically and real-time
Working principle High precision Electrochemical sensor
Gas monitor SO2, NO2, CO, O3
Sulfur Dioxide SO2 Measuring range: 0~2000ppb

Resolution: 1ppb

Response time: <45s

Nitrogen Dioxide NO2 Measuring range: 0~2000ppb

Resolution: 1ppb

Response time: <45s

Ozone O3 Measuring range: 0~2000ppb

Resolution: 5ppb

Response time: <45s

Carbon Monoxide CO Measuring range: 0~200ppm

Resolution: 0.1ppm

Response time: <45s

Noise monitor Measuring range: 30~130dB (A)
Sampling frequency: <1s
Dynamic analysis range: ≥100dB (A)
Frequency weighting: A, C,Z
Time weighting: F, S
Meteorological parameters Temperature: Measuring range: -30℃~60℃, Precision: ±0.3℃ (20℃)
Humidity: Measuring range: 0~95%RH, Precision: ±5%(5%RH~95%RH, 25℃)
Wind direction: Measuring range: 0~360°, Precision: ±5°
Wind speed: Measuring range: 0~60m/s, Precision: ±0.3m/s
Barometric pressure: Measuring range: 600~1110hpa, Precision: ±0.5hpa

System specification:

Data efficient transmission rate ≥95%
Remote control Support for remote setting
Interface RS485/RS232 port, Network port
Transmission network Automatically and real-time upload data, optional 4G/GPRS
Box material Q235 spray, Stainless box optional
Scaffold material Q235
Scaffold height Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m)
Lightning arrester Length 1.5~2m,  Q235 Galvanized material
Working environment Temperature: -20~50℃

Humidity: 5%RH~95%RH

Pressure: 65~108Kpa

Protection grade IP55
Power supply AC220V/50Hz/Solar power (optional)
