Description:

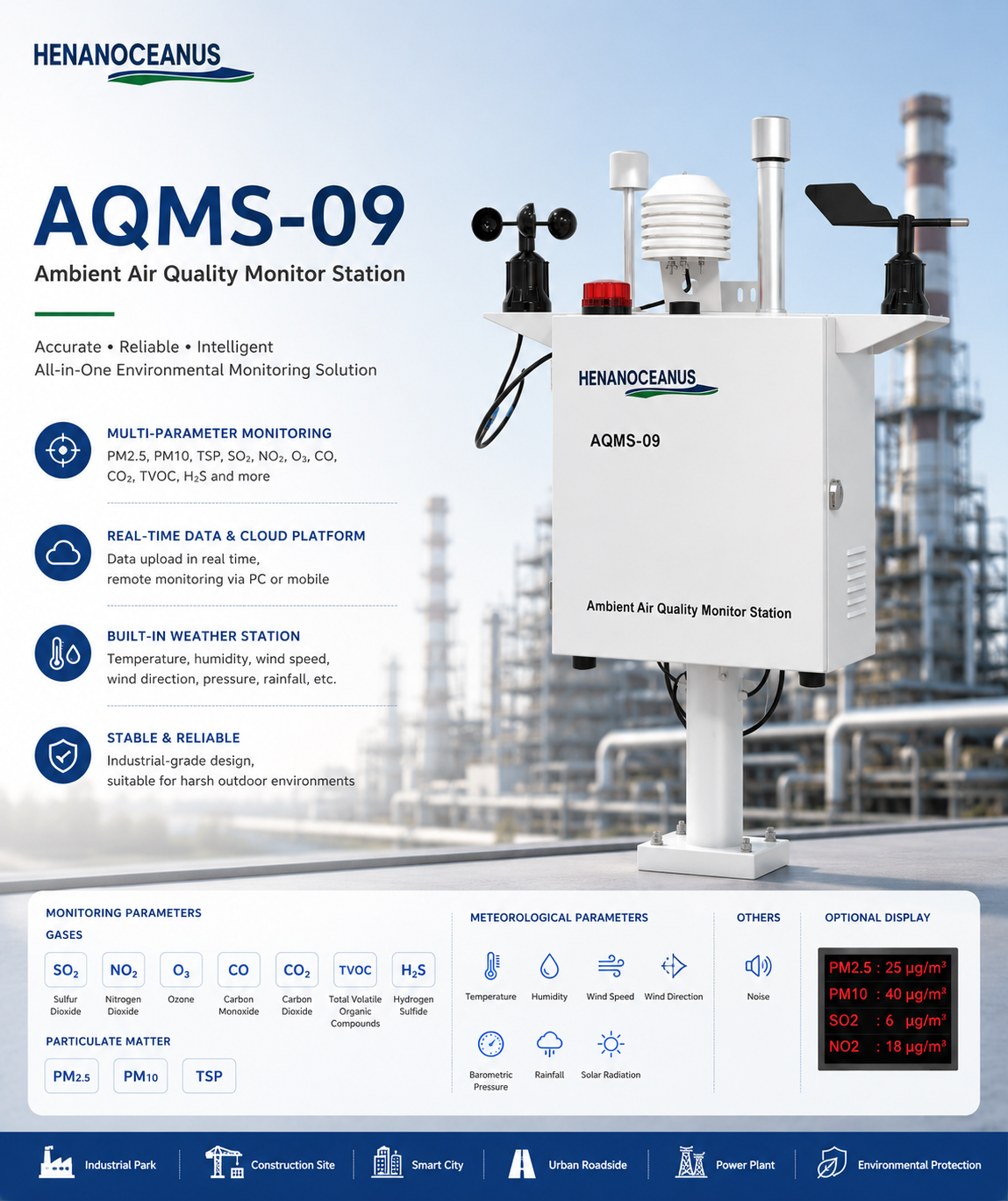

The AQMS-09 micro integrated air quality monitoring station is a professional online environmental monitoring terminal built on mature AQM series technology. It integrates particulate detection, gaseous pollutant analysis and full meteorological parameter monitoring into one compact cabinet, delivering real-time, stable pollution data for urban, industrial and traffic environmental management. Equipped with pump-suction sampling, dynamic humidity compensation and cross-interference correction functions, this all-in-one monitoring unit eliminates data distortion caused by complex outdoor climate, supporting 24/7 continuous outdoor air quality tracking and automatic over-limit pollutant alarming.
Features
1. All-in-one integrated design: gas, dust and meteorological parameters simultaneous measurement
2. Pump-suction sampling, DHS dynamic humidity compensation & gas cross-interference correction for stable precise data
3. 4G wireless communication, breakpoint resume upload, real-time data synchronization to cloud platform
4. Over-limit pollutant automatic alarm, linkage control with waste gas treatment equipment
5. Expandable accessories: outdoor LED display, alarm indicator light
6. Low maintenance, compact micro size, easy outdoor installation
Application Fields
Municipal environmental protection bureau, industrial park pollution monitoring, construction dust supervision, chemical plant waste gas monitoring, landfill odor monitoring, road air quality detection, scenic area environmental monitoring.
Technical Parameter:
| Item | AQMS-09 basic parameter |
| Power Supply | AC 220V / 50Hz or customized |
| Installation Height | 3m (Or according local rules) |
| Data Display | LED outdoor screen(680x360x85mm)（Optional） |
| 7inch display screen device inside | |
| Data Transmission | GPRS\4G |
| Sampling Method | Pump-suction for Gases & Particle |
| Working Temperature | (-30~55)℃ |
| Working Humidity | (0~95)%RH |
| Working Air pressure | (80~110)kPa |
- Meteorology：
| Parameter | Range | Resolution | Accuracy |
| Temperature | (-40 ~ 123.8)℃； | 0.01 ℃ | ±0.4 ℃ |
| Humidity | (0 ~ 100)%RH | 0.01 %RH | ±3 %RH |
| Air Pressure | (70 ~ 120)kPa | 1 Pa | ±250 Pa |
| Wind Speed | (0 ~ 32.4)m/s | 0.1 m/s | ±1 m/s |
| Wind Direction | (0 ~ 359)° | 1° | ±1° |
- Noise：
| Noise | Range：35 dB(A) ~ 110 dB(A) |
| Max error：0.5 dB(A) | |
| Self-noise：< 35 dB(A) | |
| Working temperature：-30 ℃ ~ 60 ℃ |
| Gas Name | Method | Range | Indication Error | Resolution | Low Limited | Repeatability | Drift |
| CO2 | Electrochemistry | (0 ~ 500) ppb | ±10% FS | 0.1 ppb | 5 ppb | 5 % | ±10 % FS |
| NO₂ | Electrochemistry | (0 ~ 500) ppb | ±10% FS | 0.1 ppb | 5 ppb | 5 % | ±10 % FS |
| O3 | Electrochemistry | (0 ~ 500) ppb | ±10% FS | 0.1 ppb | 5 ppb | 5 % | ±10 % FS |
| CO | Electrochemistry | (0 ~ 20) ppm | ±10% FS | 0.1 ppm | 0.1 ppm | 5 % | ±10 % FS |
| TVOC | PID | (0 ~ 10) ppm | ±5% FS | 0.1 ppm | 0.2 ppm | 3 % | ±10 % FS |
- Particle Matter：
| Particle Size | Method | Range | Indication Error | Resolution | Low Limited | Repeatability | Drift |
| PM2.5 | Laser scattering | （0 ~ 1000）μg/m³ | ±10 % | 0.1 μg/m³ | 2 μg/m³ | 5 % | ±5 %FS |
| （0 ~ 10000）μg/m³ | |||||||
| （0 ~ 30000）μg/m3 | |||||||
| PM10 | Laser scattering | （0 ~ 1000）μg/m³ | ±10 % | 0.1 μg/m³ | 2 μg/m³ | 5 % | ±5 %FS |
| （0 ~ 10000）μg/m³ | |||||||
| （0 ~ 30000）μg/m3 | |||||||
| TSP | Laser scattering | （0 ~ 1000）μg/m³ | ±10 % | 0.1 μg/m³ | 2 μg/m³ | 5 % | ±5 %FS |
| （0 ~ 10000）μg/m³ | |||||||
| （0 ~ 30000）μg/m3 |
Remark: If your need parameters not listed, or any special request, please contact us for confirmation.
Applications:
Urban Ambient Air Quality Monitor
Construction Site
Tourist Attractions / Parks
Quarry/Surface Mining
Cement Plant
Road Safety
….
