Product Description

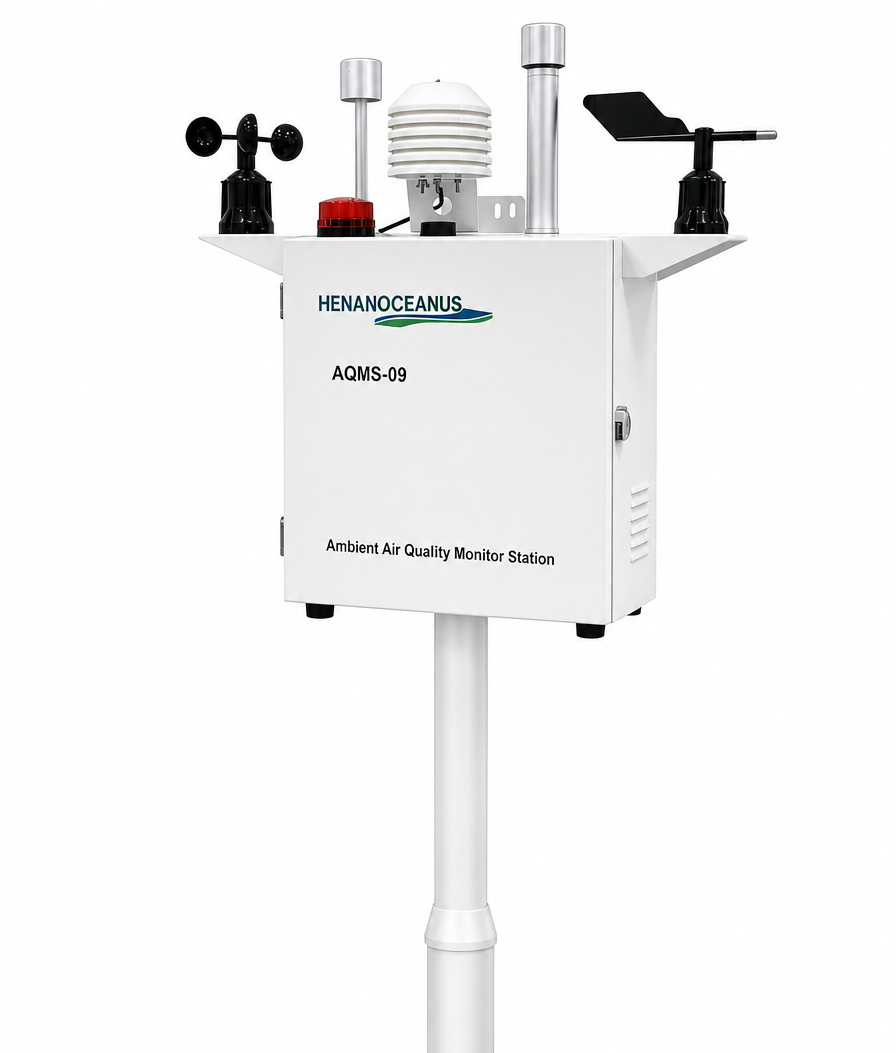

AQMS‑09 Off‑grid Working Ambient Air Quality Monitor System is specially developed for remote locations lacking stable mains power supply. Featuring reliable off‑grid working capability, the unit can run stably without grid electricity, solving power supply difficulties in isolated field sites.
Equipped with high‑speed 4G transmission module, the device automatically uploads all monitoring data to cloud platform. Users can remotely access real‑time measurement values, historical data curves and abnormal alarm notifications anytime and anywhere via cloud platform. The whole system achieves true unattended operation, reduces frequent on‑site manual inspection and greatly cuts operation labor costs.
It detects a full range of ambient air pollutants for comprehensive environmental assessment. Built‑in protective structure adapts to complex outdoor weather conditions, suitable for long‑term outdoor deployment. No frequent on‑site operation required after installation. Widely deployed for environmental supervision in various off‑grid industrial and engineering locations.
Main Features
✅ Off‑grid independent working, no need for mains power supply
✅ Stable 4G wireless data transmission
✅ Cloud platform remote data check & alarm management
✅ Fully unattended long‑term outdoor operation
✅ Multi‑pollutant simultaneous monitoring
✅ Outdoor rugged housing for harsh field environment
Detailed Technical Parameters
| Category | Item | Detection Method | Measuring Range | Resolution | Accuracy / Indication Error | Lower Detection Limit |
|---|---|---|---|---|---|---|
| Gaseous Pollutants | SO₂ Sulfur Dioxide | Electrochemistry | 0 ~ 500 ppb | 0.1 ppb | ±10% FS | 5 ppb |
| NO₂ Nitrogen Dioxide | Electrochemistry | 0 ~ 500 ppb | 0.1 ppb | ±10% FS | 5 ppb | |
| O₃ Ozone | Electrochemistry | 0 ~ 500 ppb | 0.1 ppb | ±10% FS | 5 ppb | |
| CO Carbon Monoxide | Electrochemistry | 0 ~ 20 ppm | 0.1 ppm | ±10% FS | 0.2 ppm | |
| TVOC Total Volatile Organic Compounds | PID Photoionization Detection PID | 0 ~ 10 ppm | 0.1 ppm | ±5% FS | 1 ppm | |
| Particulate Matter | PM2.5 | Laser Scattering | 0~1000 / 0~10000 / 0~30000 μg/m³ | 0.1 μg/m³ | ±10% | 2 μg/m³ |
| PM10 | Laser Scattering | 0~1000 / 0~10000 / 0~30000 μg/m³ | 0.1 μg/m³ | ±10% | 2 μg/m³ | |
| TSP Total Suspended Particulates | Laser Scattering | 0~1000 / 0~10000 / 0~30000 μg/m³ | 0.1 μg/m³ | ±10% | 2 μg/m³ | |
| Meteorological Parameters | Temperature | / | -40 ~ 123.8 ℃ | 0.01 ℃ | ±0.4 ℃ | / |
| Humidity | / | 0 ~ 100 %RH | 0.01 %RH | ±3 %RH | / | |
| Atmospheric Pressure | / | 70 ~ 120 kPa | 1 Pa | ±250 Pa | / | |
| Wind Speed | / | 0 ~ 60 m/s | 0.1 m/s | ±1 m/s | / | |
| Wind Direction | / | 0 ~ 359 ° | 1 ° | ±1 ° | / |
| Noise | Range：35 dB(A) ~ 110 dB(A) |
| Max error：0.5 dB(A) | |
| Self-noise：< 35 dB(A) | |
| Working temperature：-30 ℃ ~ 60 ℃ |
Remark: If your need parameters not listed, or any special request, please contact us for confirmation.
Application Scenarios
- Remote hydropower project sites
- Off‑grid construction sites
- Mountain mining areas
- Isolated industrial zones without mains power
- Remote ecological environment monitoring points
- Rural unattended environmental observation stations
