Product Overview
Core Features
- Up to 6 Sensors Integrated in One Device
Supports combined detection of flammable, toxic, acidic, oxygen, VOC and dust parameters, suitable for complex industrial flue gas and waste gas inspection.
- Built-in Sampling Pump
Equipped with built-in pump suction function to extract gas samples from flue pipes, exhaust ducts, confined spaces and narrow equipment interiors.
- Multiple Gas Configurations Available
Flexible sensor combinations can be selected according to different application scenarios.

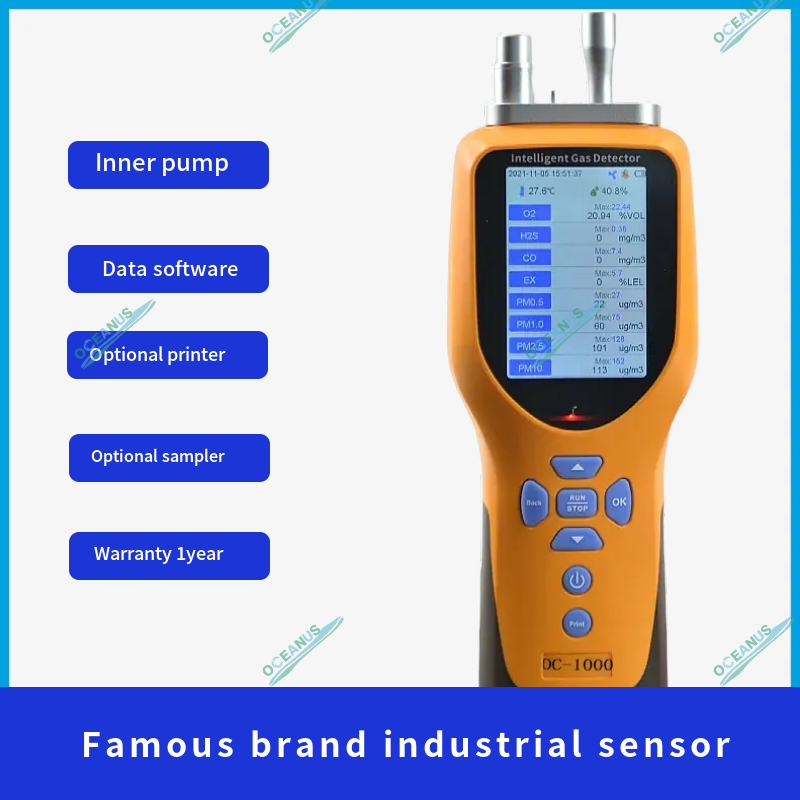

- Real-time LCD Display
Shows multiple gas concentrations, measurement units, alarm status and system information simultaneously.
- Large Data Storage Capacity
Stores up to 100,000 groups of detection records, supporting historical query and emission data archiving.
- Optional Micro Printer
Supports on-site data printing, which is convenient for law enforcement inspection, site acceptance and record keeping.
- Optional High Temperature Sampling Probe
Suitable for high-temperature flue gas sampling in boilers, incinerators and thermal power plants.
- Strong Industrial Protection Design
Designed for complex industrial environments, suitable for high dust, high humidity and high-temperature flue gas testing scenarios.
- Certified Safety Performance
CE, RoHS, ATEX and CNEx certifications provide reliable safety guarantees for industrial and hazardous area applications.
- Widely Used in Flue Gas and Environmental Inspection
Suitable for boiler flue gas analysis, waste incineration emission monitoring, thermal power plant inspection, chemical plant safety patrol and environmental law enforcement sampling.
Technical Parameter:
| Main Detectable Gas | O2 CO CO2 H2S NO2, Customizable gas types | ||
| Measuring Range | O2: 0~30%vol,
CO: 0~1000ppm, H2S: 0~100ppm, CO2: 0~200ppm, NO2: 0~100ppm, Support customized. |
||
| Working principle | Infrared sensor for CO2, Electrochemical for CO, H2S, CO2, NO2. Customized gas sensors | ||
| Sampling mode | Built-in adjustable pump suction sampling | ||
| Measuring range | Support customization | ||
| Resolution | 0.01ppm | ||
| Precision | ±3%F.S (or customized) | ||
| Temp & Humidity testing range | Temperature: -40~120℃; | ||
| Humidity: 0~100% RH | |||
| Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||
| Printer | Optional mini-printer. | ||
| Response time | ≤20s(T90) | Recovery time | ≤20s |
| Repeatability | ≤±1% | Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
| Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
| Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
| Working temperature | -40~120℃ | Working humidity | 0-95%RH(non-condensing) |
| Working pressure | -30Kpa ~ 100Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 | Shell material | ABS+PC |
| Dimensions | 220*88*55mm | Weight | 0.5KG |
| Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Application Scenarios
- Boiler room flue gas composition analysis and combustion efficiency inspection
- Waste incineration plant tail gas pollutant monitoring and sampling
- Thermal power plant desulfurization, denitrification and flue gas emission inspection
- Chemical plant toxic gas leakage detection and safety patrol
- Environmental law enforcement on-site flue gas and waste gas sampling inspection
- Confined space multi-gas safety assessment before entry
- Sewage plant, landfill and biogas station odor gas monitoring
- Painting workshop, printing factory and chemical industry VOC detection
- Garage, boiler room and generator room CO and flammable gas inspection
- Industrial workshop dust and particulate matter pollution monitoring
