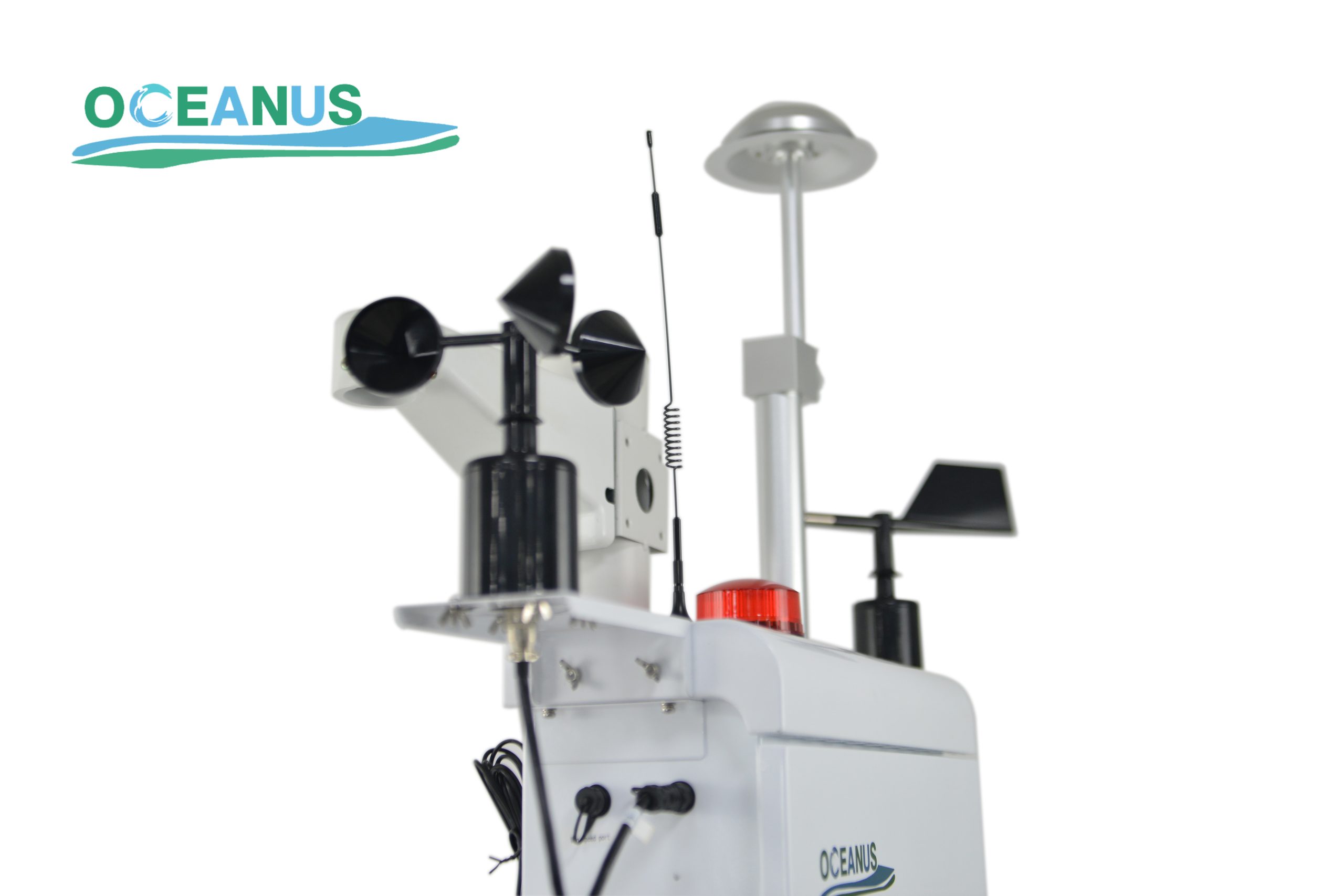

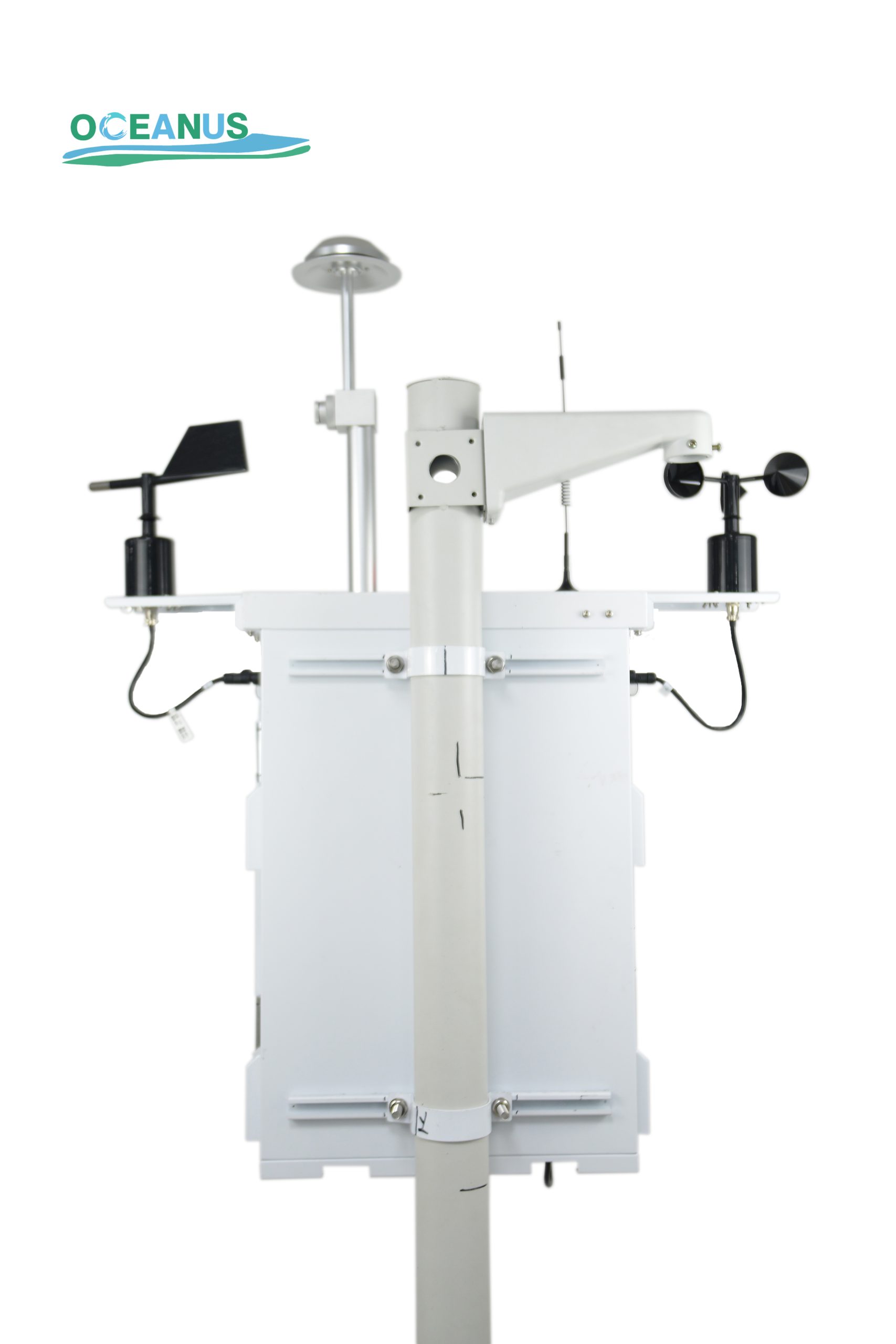

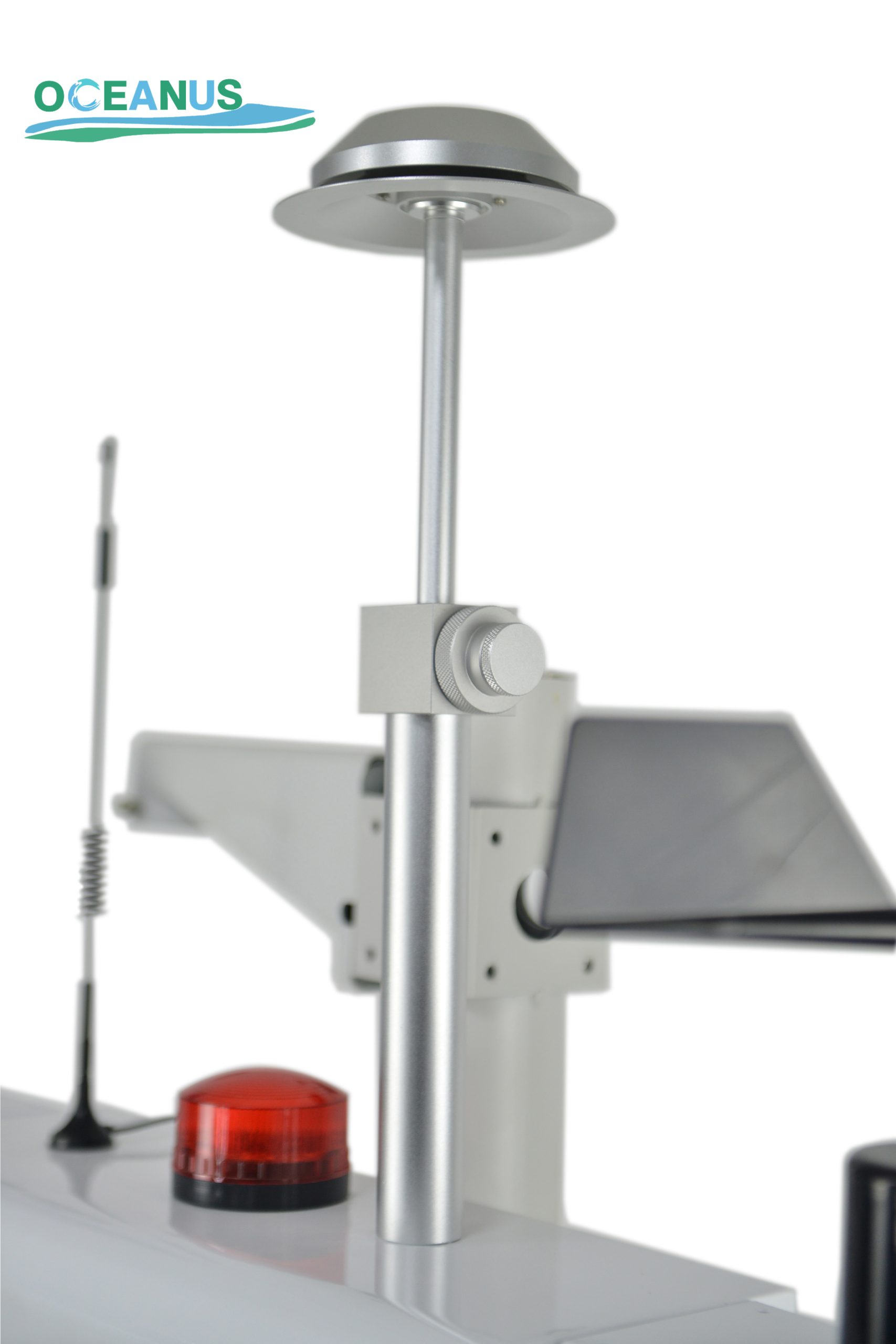

Hot Selling AQM-09 Air Quality Monitor System
What is the AQM-09 Ambient air quality monitor station?
AQM-09 is an air quality monitoring system, it can monitor outdoor air pollutants in real-time, including SO2, NO2, O3, CO, Dust, Meteorological parameters, noise, etc. With 4G data transmission function.Free cloud platform for you to use.Optinal solar panel power supply.Can be connected to an external LED screen.The measuring range and gas type can be customized according to your needs.
The AQM-09 air quality monitoring system has become a leader in the field of environmental monitoring with its excellent real-time monitoring capabilities, data transmission functions and customization features. Whether it is urban environment monitoring, industrial park management or other scenarios that require air quality monitoring, AQM-09 can provide users with strong data support to help environmental protection and sustainable development.
What is the use of AQM-09 Environment monitoring device?
It is designed to ensure the healthy of the ambient air around you.
It can be used as the air quality camera around you.
Where can AQM-09 be installed?
It is designed to ensure the safety of the ambient air around you, by continuously monitoring and assessing air quality. The system provides real-time feedback, alerting users to any potential hazards or pollutants in the ambient air.
Moreover, it can be used as an air quality camera around you, capturing visual data that can be analyzed to identify airborne particles and contaminants. This allows for a more comprehensive understanding of the air quality in your environment.
Features:
Modular designed suitable for large scale grid layout;
No need to change the sampling cutter, it can detect the PM10, PM2.5, TSP at the same time;
The circuit adopts industrial embedded processor, suitable for the harsh outdoor environment;
The unique function of automatic heating and dehumidification to avoid humidity influence on measurement data;
Adopts long-life anti-jamming sampling system,quite and efficirnt; the sampling period is adjusted;
Adopts the industrial transmission module to ensure the stability and reliability of the data transmission;
The system with the two channel communication to ensure the data continuity;
It can show 24 hours real-time data;
Large size LED to display the data. Various installation modes, such as Pole, Tripod, etc.
The Air quality monitor station with many different applications:
Pollution control in traffic environment;
Road and tunnel pollution monitoring;
Urban air quality monitoring;
Emission monitoring of particulate and pollution sources;
Long-term air quality trends analysis;
Short-term atmospheric environmental impact assessment;
Environmental monitoring in residential areas, schools, Hospitals;
Park / forest environmental monitoring;
Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc.
Why choose us?
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.With excellent products and services, Henan OCEANUS Import and Export Co., Ltd.’s gas detectors and air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
Our Service Processes:
Pre-sales Consultancy
Confirmation of order
Production
Multi-Channel Shipping
After-sale Services
Technical Parameter:
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10，TSP | |
| Measuring range | 0~1000ug/m3 (Range can be extended) | |
| Response time | ≤60s | |
| Measuring time | 0.1min (Shortest measurement time)
1min(Standard measurement time) |
|
| Minimum detection limit | ≤0.001 mg/m3 | |
| Instrument parallelism | ≤±10% | |
| Data validity | ＞75% | |
| Dehumidification | With the automatic dehumidification function module | |
| Alarm function | With high concentration alarm function, the platform can configure the alarm threshold | |
| Gas modules | Monitor method | Continuously, automatically and real-time |
| Working principle | High precision Electrochemical sensor | |
| Gas monitor | SO2, NO2, CO, O3 | |
| Sulfur Dioxide SO2 | Measuring range: 0~2000ppb
Resolution: 1ppb Response time: ＜45s |
|
| Nitrogen Dioxide NO2 | Measuring range: 0~2000ppb
Resolution: 1ppb Response time: ＜45s |
|
| Ozone O3 | Measuring range: 0~2000ppb
Resolution: 5ppb Response time: ＜45s |
|
| Carbon Monoxide CO | Measuring range: 0~200ppm
Resolution: 0.1ppm Response time: ＜45s |
|
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -30℃~60℃, Precision: ±0.3℃ (20℃) | |
| Humidity: Measuring range: 0~95%RH, Precision: ±5%(5%RH~95%RH, 25℃) | ||
| Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
| Wind speed: Measuring range: 0~60m/s, Precision: ±0.3m/s | ||
| Barometric pressure: Measuring range: 600~1110hpa, Precision: ±0.5hpa | ||
Remark: If your need parameters not listed, or any special request, please contact us for confirmation.
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 4G/GPRS |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1.5~2m, Q235 Galvanized material |
| Working environment | Temperature: -20~50℃
Humidity: 5%RH~95%RH Pressure: 65~108Kpa |
| Protection grade | IP55 |
| Power supply | AC220V/50Hz/Solar power (optional) |
