Description:

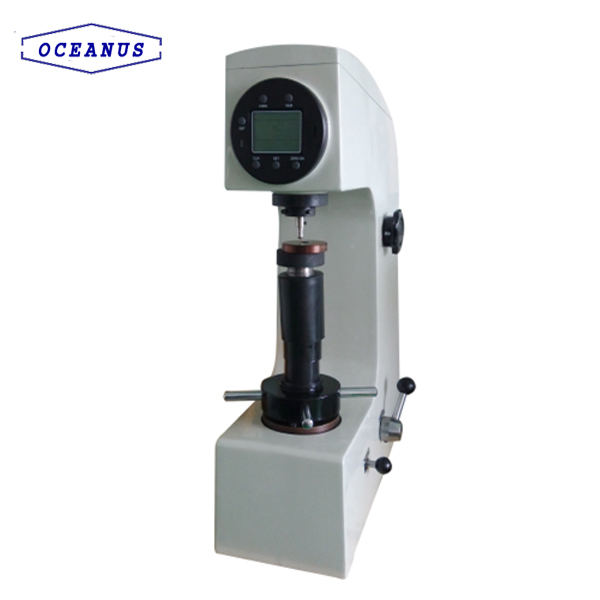

HR-150AS Manual Rockwell hardness tester designed with the beautiful appearance and the interface menu. It’s with the stable performance and economic costs, used widely in different applications.
Features:
The LCD screen display the measuring data, the resolution is 0.1.
Can directly convert the hardness unit of the HV and HB.
Low power consumption, long working time, the digital display head with the CR2450 battery power supplying.
With the displaying time function.
With the data output function, could connect with the computer or the mini printer.
Applications:
Chilled Hardened Steel, quenching and tempering steel, annealed steel, bearing steel, strip steel, harden sheet steel, hardness alloy, etc.
Technical Parameter:
| Model | HR-150AS |
| Initial test force | 10kgf(98.07N) |
| Total test force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Rockwell Scales | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK |
| Testing range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 |
| HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 | |
| Hardness Indication | Digital LCD display |
| Execution Standard | GB/T230.1 GB/T230.2 JJG112 |
| Max. Height of Specimen | 170mm |
| Instrument Throat | 135mm |
| Dimension(L*W*H) | 466×238×630mm |
| Net weight | About 65kg |
Standard accessories:
| Name | Quantity |
| Rockwell diamond indenter | 1pc |
| Standard block | 5pcs |
| Bolt driver | 2pcs |
| Operation manual | 1pc |
| φ1.5875mm ball indenter | 1pc |
| Test bench | 3pcs |
| Dust proof cover | 1pc |
If any questions on the Hardness tester, welcome to contact us:
