Product Description

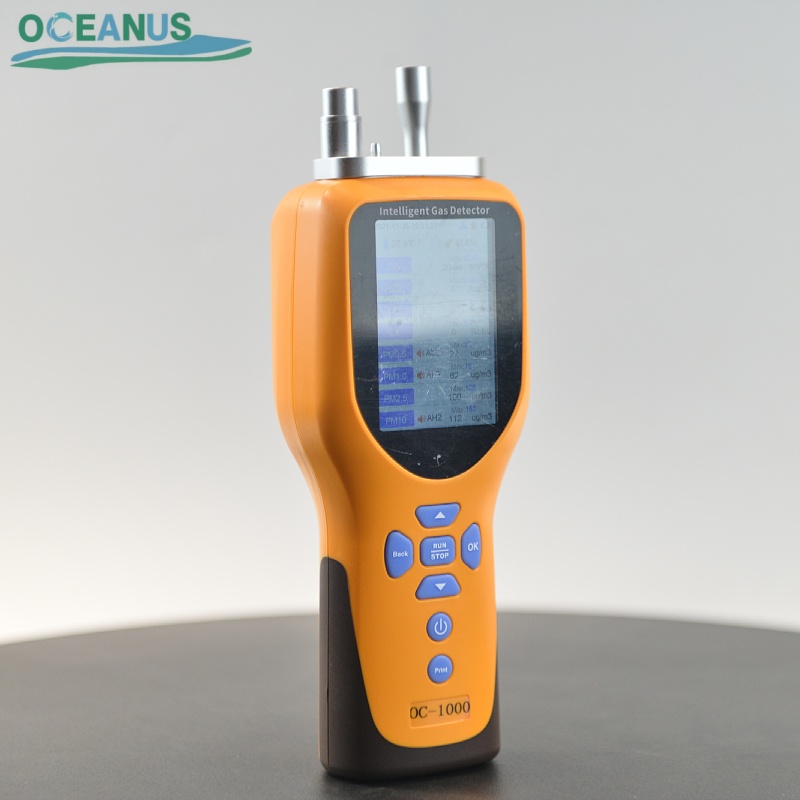

OC-1000 Handheld Gas Detector is a pump-suction intelligent portable multi gas detector independently developed by Oceanus. It adopts a 3.5-inch industrial IPS color screen, supports customized matching of Ozone (O₃, ground-level ozone), VOC (Volatile Organic Compounds), NOx (Nitrogen Oxides), combustible gas, toxic gas and particulate matter sensors (PM2.5/PM10, Particulate Matter 2.5 / Particulate Matter 10). Built-in adjustable suction pump, mass data storage and optional printing module, widely applied in summer ozone law enforcement inspection, factory fugitive VOC&NOₓ leakage detection, environmental site monitoring and confined space safety detection.
Core Features
- Equipped with a 3.5-inch industrial IPS high-definition color screen, the OC-1000 ensures clear data display even under strong outdoor sunlight, meeting high-brightness field inspection requirements.
- The detector supports fully customizable sensor combinations, including Ozone (O₃), Volatile Organic Compounds (VOC), Nitrogen Oxides (NOx), particulate matter (PM2.5/PM10), toxic gases, combustible gas, and temperature & humidity, adapting to diverse air quality monitoring scenarios.
- Built with an adjustable high-precision suction pump, the device provides stable and uniform gas sampling, ensuring accurate and repeatable detection data in complex outdoor and industrial environments.
- It supports multiple international concentration units including PPM, %VOL, %LEL and mg/m³, which fully complies with global environmental testing and industrial safety standards.
- Dual-level audible and visual alarm thresholds are freely configurable. It can instantly trigger over-limit reminders for ozone, VOC and NOₓ pollution, helping operators respond quickly during summer ozone pollution inspections.
- The instrument supports storage of up to 100,000 groups of detection data, with professional PC software for data export, analysis and report generation, realizing traceable monitoring records.
- Optional accessories such as a micro thermal printer and high-temperature sampling probe expand application boundaries, supporting on-site data printing and high-temperature flue gas sampling.
- With CE, RoHS, ATEX and explosion-proof certifications, the OC-1000 is safe and reliable for industrial, chemical, outdoor environmental and potentially flammable working sites.
Technical Parameter:
| Main Detectable Gas | Ozone (O₃), Volatile Organic Compounds (VOC), Nitrogen Oxides (NOx) | ||
| Measuring Range | O3: 0~1ppm, VOC: 0~10ppm, NOx: 0~10ppm | ||
| Working principle | CO/H₂S/O₂/Cl₂: Electrochemical Sensor； LEL: Catalytic Combustion Sensor | ||
| Sampling mode | Built-in adjustable pump suction sampling | ||
| Measuring range | Support customization | ||
| Resolution | H2S: 0.1 ppm, CO: 0.1 ppm, LEL: 0.1 LEL, O2: 0.01 vol, Cl2: 0~.01 ppm | ||
| Precision | ±3%F.S (or customized) | ||
| Temp & Humidity testing range | Temperature: -40~120℃; | ||
| Humidity: 0~100% RH | |||
| Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||
| Printer | Optional mini-printer. | ||
| Response time | ≤20s(T90) | Recovery time | ≤20s |
| Repeatability | ≤±1% | Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
| Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
| Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
| Working temperature | -40~120℃ | Working humidity | 0-95%RH(non-condensing) |
| Working pressure | -30Kpa ~ 100Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 | Shell material | ABS+PC |
| Dimensions | 220*88*55mm | Weight | 0.5KG |
| Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Application Scenarios
- Urban summer ozone pollution inspection: Field detection of O₃, VOC, NOₓ for environmental law enforcement teams
- Factory fugitive emission monitoring: Workshop VOC leakage, boiler NOₓ exhaust spot check
- Gas station, auto repair shop coating volatile organic matter inspection
- Construction sites, municipal road spraying operation pollution monitoring
- Confined space, sewage tank, chemical plant safety gas detection
- Third-party environmental testing daily field sampling work
