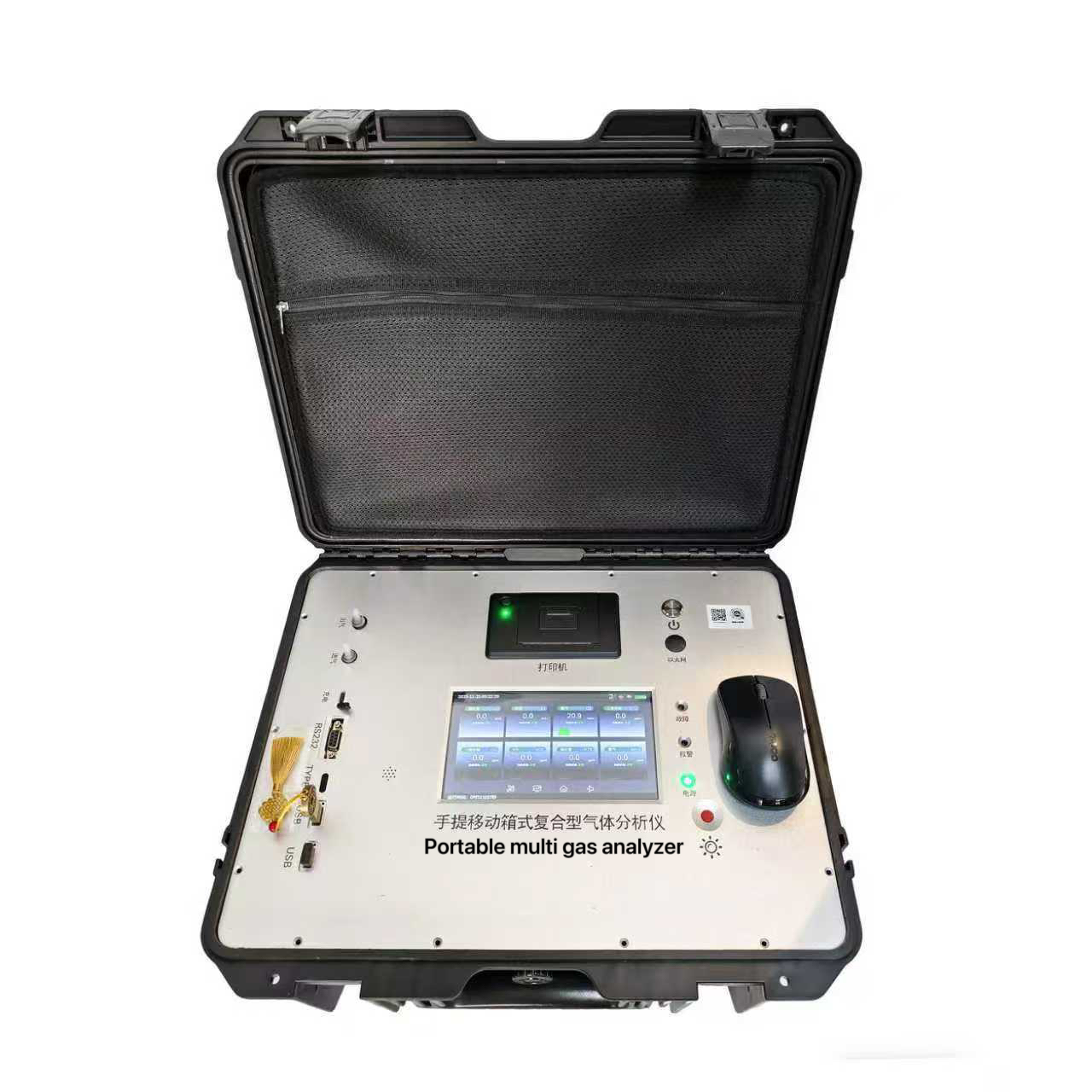

Product Brief
Core Advantages
With official Ex ib IIB T3 explosion-proof certificate, it can work stably in flammable and explosive dangerous environments, effectively avoiding safety risks during detection.
Customizable 1-24 gas sensors, supporting the detection of various toxic, harmful, flammable and flue gases, meeting diverse industrial detection needs.
Integrated suitcase body, lightweight and portable, no complicated installation, plug and play, suitable for outdoor and mobile field detection.
Built-in thermal printer for on-site real-time report output; optional 4G, Bluetooth, USB and RS485 multi-channel data transmission to realize remote monitoring and data cloud storage.
IP65 full-machine protection grade, dust-proof, splash-proof and corrosion-resistant; matched with 28000mAh large-capacity battery, realizing long-time continuous field operation.
Optional high-temperature sampling probe, adapting to 400℃-1300℃ high-temperature flue gas detection, covering more industrial detection scenarios.
Technical Parameter:
| Gas type | Ex, O2, Toxic gas, or others gas customized |
| Sensor Type | Catalytic combustion, Electrochemical, PID, Infrared, Thermal conductivity |
| Sensor life | 2~3 years |
| Measuring range | According gases customized
%LEL, %VOL, PPM, MG/M3, etc |
| Accuracy | ≤±3%F.S﹙Higher Accuracy can be customized﹚ |
| Display | 7 inch colorful screen with touch |
| Response time | T90≤30S |
| Sampling mode | Pump-suction sampling (500ml/min) |
| Operating Language | Chinese or English operating menu is able to be changed freely. |
| Alarm Mode | Beep alarm, light alarm sound≥80dB |
| Data storage | 100k pieces of data storage |
| Data Transmission | Optional:
Wire: USB, RS232, RS485 Wireless: 4G, GPS, Bluetooth |
| Power Supply | 3.7V, 28000mAh rechargeable lithium battery |
| Explosion-proof Grade | Ex ib IIB T3 |
| Protection Grade | IP65 |
| Working Environment | Working Temperature: –10℃～55℃ (Optional high
temperature sampling and cooling filter Handle) Working Humidity: 0-95%RH (non-condensing) |
| Body Material | Aluminum alloy |

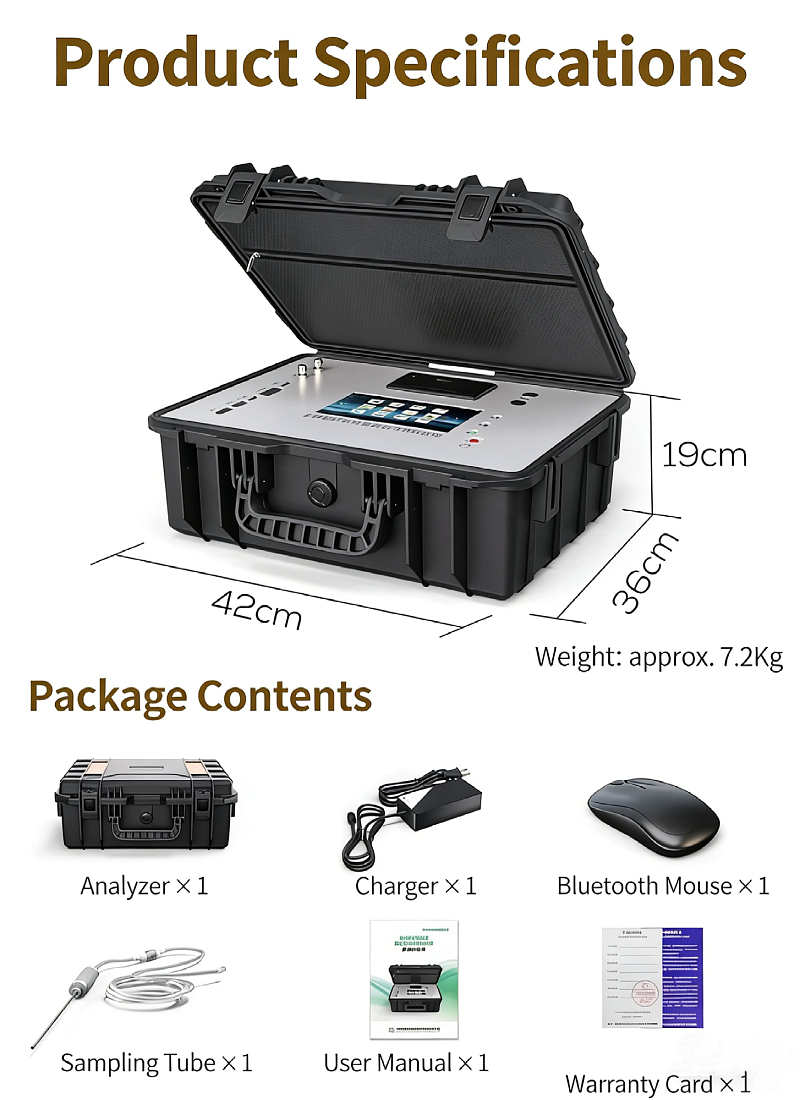

| Dimensions | 420*360*190mm |
| Weight | 7.2KG |
| Warranty | 1 years |
Applications
- Chemical & Petrochemical Plants: Detect leakage of flammable and toxic‑harmful gases in production area, storage tank zone and pipeline.
- Environmental Law Enforcement Inspection: Field spot‑check of waste gas emission for factories, obtain on‑site test reports quickly.
- Metallurgy & Smelting Works: Monitor furnace flue gas and workshop toxic gas concentration in real‑time.
- Tunnel & Underground Construction: Detect harmful gas accumulation during tunneling and underground engineering operation.
- Oil & Gas Sites: Explosion‑proof onsite gas inspection for oil depot, gas station and well site working area.
- Waste Incineration & Waste‑to‑energy Plant: Analyze flue gas composition of incineration exhaust gas.
- Pharmaceutical Factory: Monitor volatile toxic gas from pharmaceutical production process.
- Emergency Rescue: Gas risk assessment for accident site, leak emergency disposal.
About us
We Henan Oceanus was established in 2016. Its main business focus on Safety and Environmental monitoring, also takes this as core business. We are committed to building a platform that integrates services and products. The company has professional engineers and production team to provide the technical support, efficient marketing team to expand business. With the competitive quality and service, our products has exported to more than 100+ countries all over the world.
01. Business areas
As a leader in the field of Gas detector & Air quality monitor system, we Henan Oceanus is continued to expand its business scope and provide customers around the world with customizable gas detectors of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customers Service
With excellent products and services, We Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
After-sales Service
- One-year global warranty for the whole machine (consumable sensors are not covered in the basic warranty)
- Provide professional English operation manual and remote online technical guidance
- Support sensor calibration, replacement and later gas program customization service
- Quick response for technical problems within 24 working hours
- Support OEM & ODM customized service for gas range, housing and function modules
