Description:

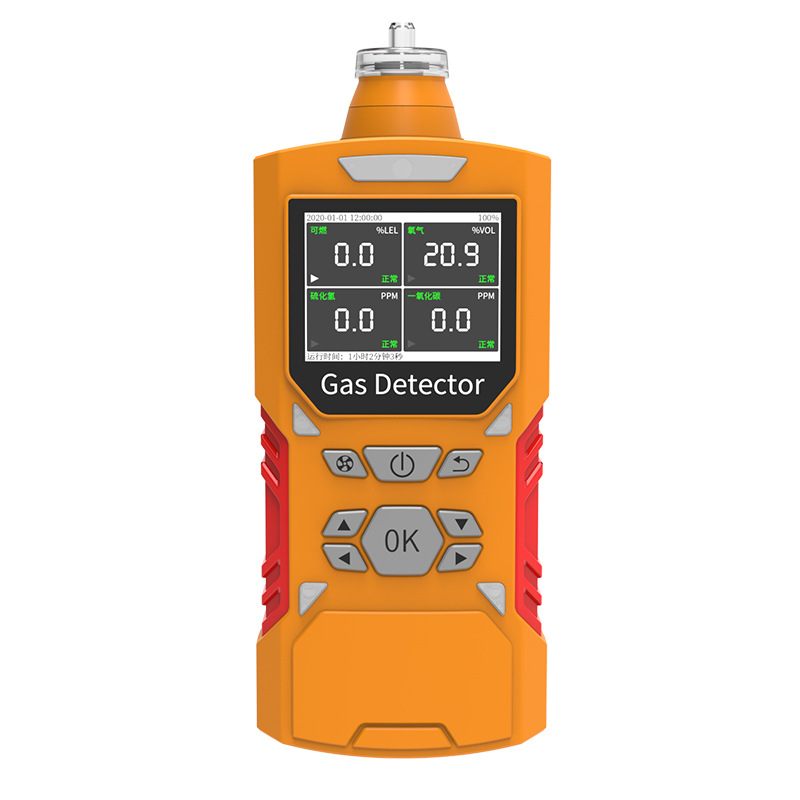

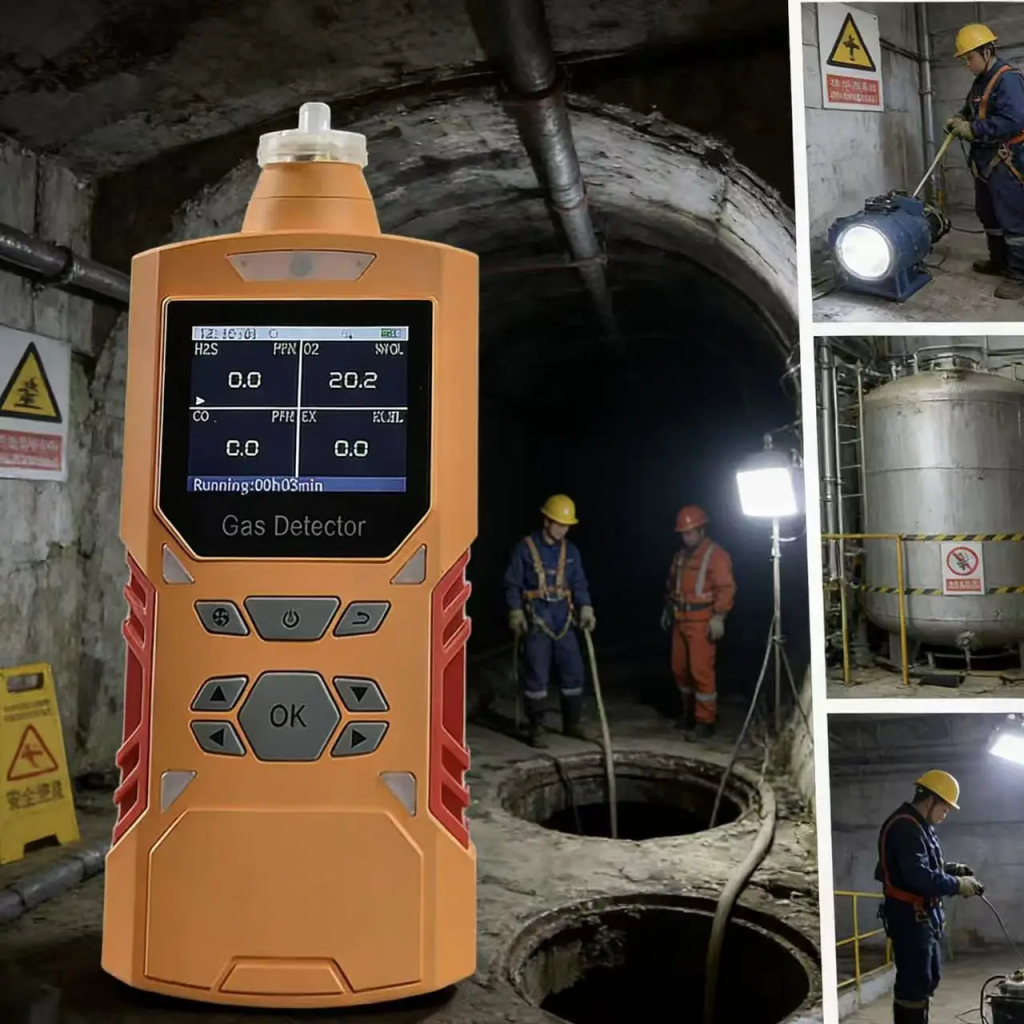

OC-901 Portable pump -suction multi gas detector with voice alarm which is applicable for 1~4 gas detection, with the original imported sensor, with the safe and reliable quality. It’s with the pump suction sampling mode, more fast response speed. The portable gas detector can promise the security for the personnel working under the toxic gas in the harmful environments.
Features:
It used original imported sensor with good quality and high accuracy.
It with the inner pump, sampling speed more fast.
It can be combined with 1~4 different gas sensors for different gas type.

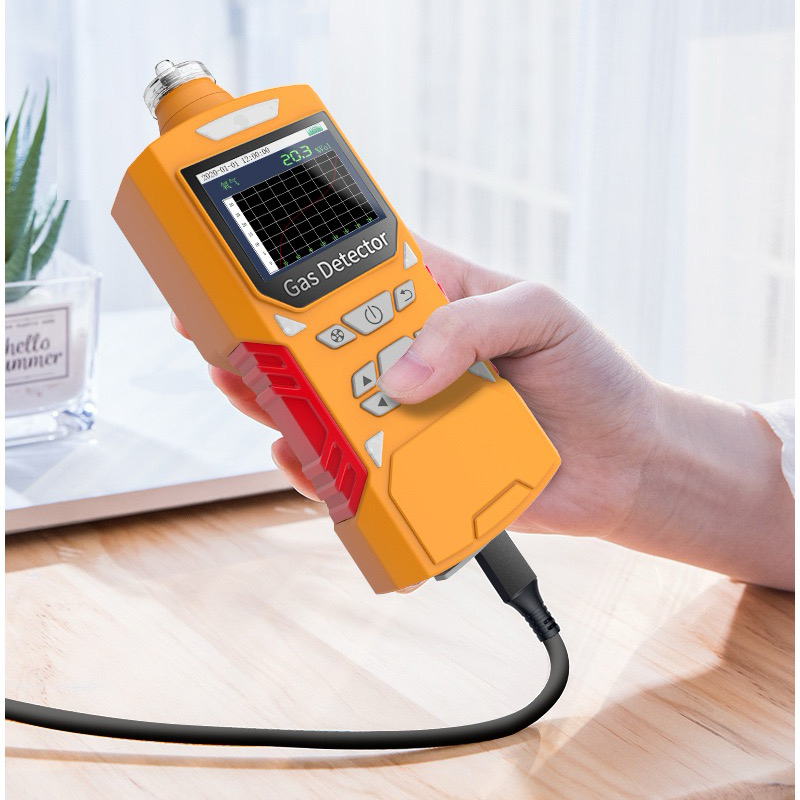

2.4 inch colorful display, support both English and Chinese operating menu.
With audible-visual-vibration alarm mode, also with the voice alarm.

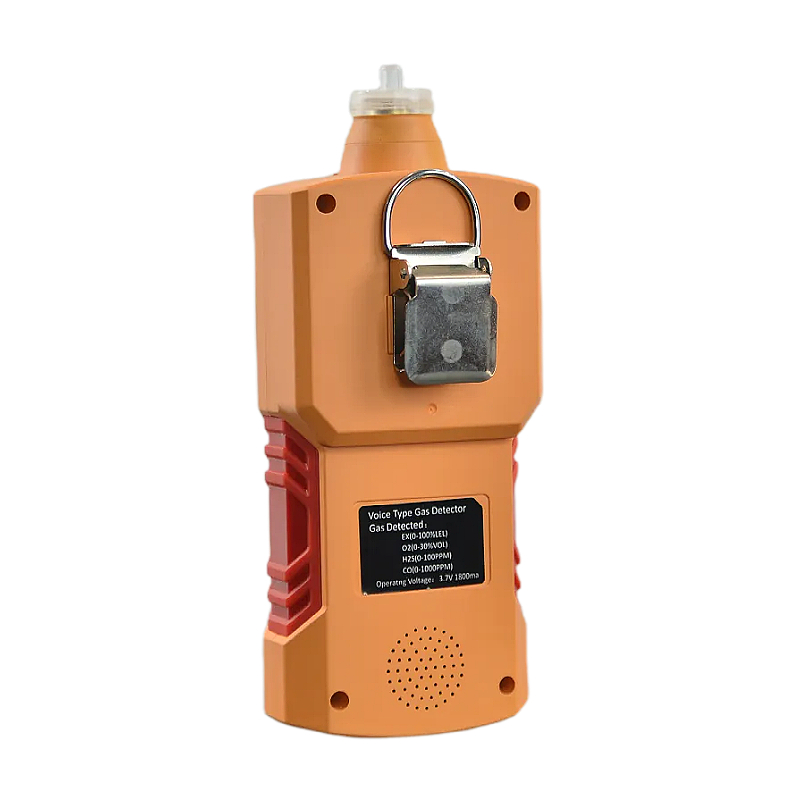

With a back clip, which is easy to carry when working.
Powered by rechargeable battery with big capacity which support a long working period.
Technical Parameter:
| Gas type | Ex, Oxygen, Toxic gas, CO2, TVOC |
| Sensor Type | Catalytic combustion sensor for Ex;
Electrochemical sensor O2 and Toxic gas; Infrared sensor for CO2 and CH4; PID sensor for TVOC. |
| Sensor life | 2~3 years |
| Measuring range | According to different gas type |
| Display Information | Gas types, Concentration value, Concentration unit, Time, Battery status, Alarm status, etc. |
| Display | 2.4 inch colorful screen |
| Alarm Storage | With alarm data storage function, can review the data from the detector.. |

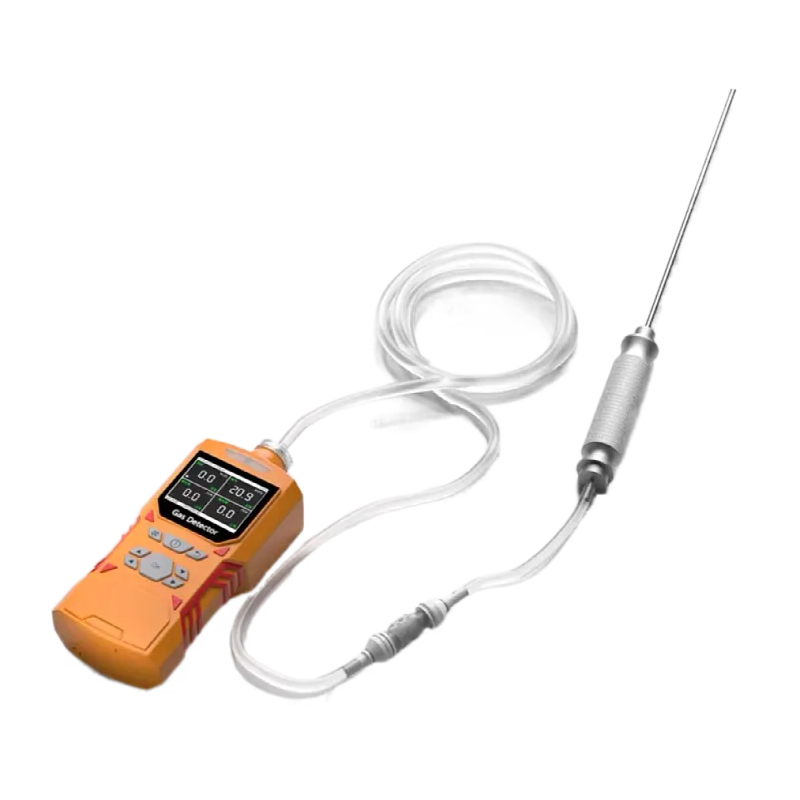

| Sampling mode | Pump-suction sampling (Available for connection with external pump) |
| Operating Language | Chinese or English operating menu is able to be changed freely. |
| Alarm Mode | Audible-visual-vibration alarm, sound≥75dB |
| Power Supply | 3.7V, 4000mAh rechargeable lithium battery, continuous working period over 10 hours. |
| Explosion-proof Grade | Ex ib IIB T3 |
| Protection Grade | IP65 |
| Working Environment | Working Temperature: -20℃～50℃
Working Humidity: 0-95%RH (non-condensing) |
| Body Material | ABS and PC |

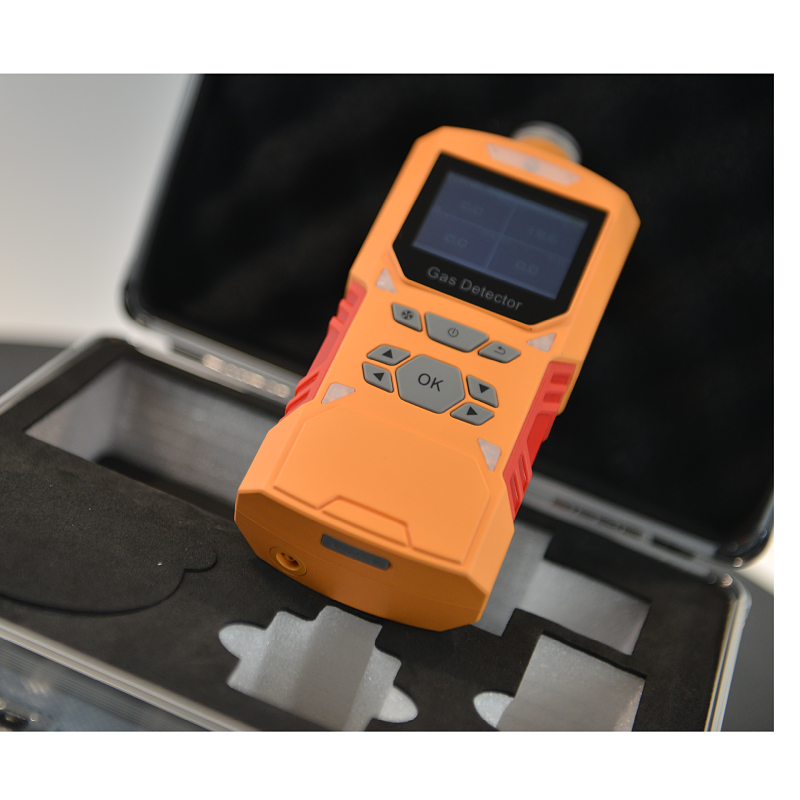

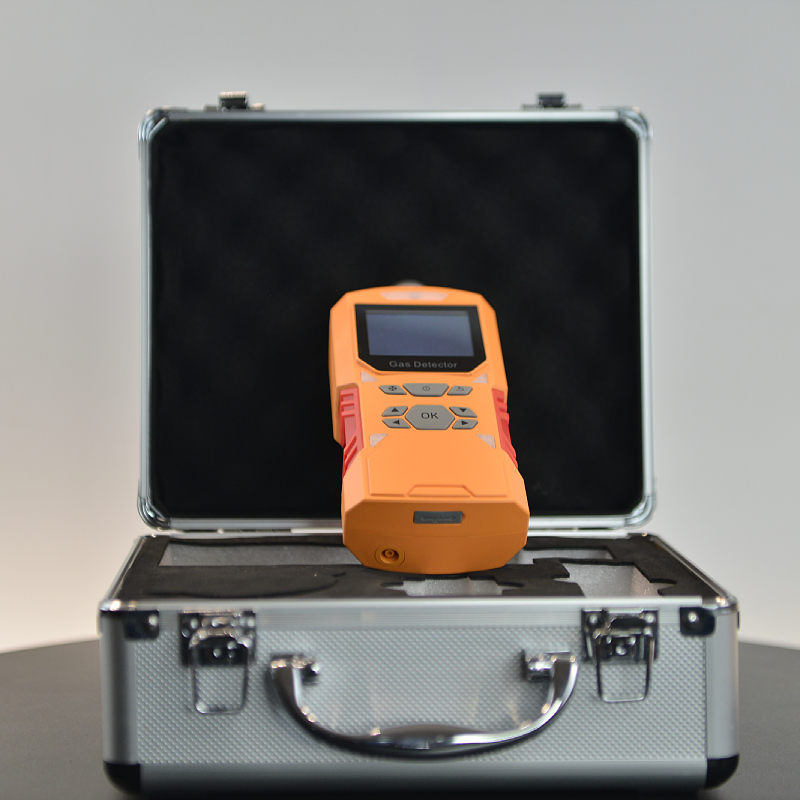

| Package | Aluminum alloy box |
| Dimensions | 190*75*47mm |
| Weight | 376g (with charger) |
| Warranty | 1 years |
Applications:
The portable multi gas detector used in the gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the gas concentration of the Combustible gas and Toxic gas.
We Henan Oceanus Company is located in Henan province, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of gas detectors since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global market.
If you need more details of the OC-901 portable gas detector, welcome to contact us:
