Product Overview
Equipped with an adjustable built-in suction pump, the device can complete remote gas extraction sampling. Meanwhile, it supports synchronous real-time oxygen detection, with built-in temperature and pressure compensation algorithms to eliminate detection errors caused by changes in ambient temperature and air pressure. 100,000 groups of detection data can be stored and exported to a computer via supporting software for data archiving and traceability.
With explosion-proof certification and multi-level alarm reminder, the equipment provides long-term stable safety monitoring for industrial argon production, transportation and on-site usage links.
Core Advantages
- Dedicated thermal conductivity sensor for argon, high testing stability, low zero drift
- 2.4-inch industrial IPS color screen, clear data display under strong light workshop environment
- 100~1000mL/min adjustable pump suction flow, suitable for short-distance & long-distance gas sampling
- Dual-stage audible and visual alarm threshold freely configurable + vibration alarm, effective warning in noisy workshops
- Temperature & pressure compensation function ensures high precision measurement in complex working conditions
- Massive 100,000 groups data logger function, support PC data export and report sorting
- Full global authoritative certificates: CE, RoHS, CNEx, ATEX, meet international industrial explosion-proof standards
- Compact handheld design, 500g lightweight body, easy to carry for field mobile detection
Technical Specification:
| Gas type | Argon(Ar) |
| Working principle | Thermal Conductivity Sensor |
| Measuring range | 0-10%、50%、100%、99.999%Vol or Customized |
| Resolution | 0.01%vol |
| Precision | ≤±2%F.S |
| Sampling method | Pump-suction sampling, flow rate of 100~1000mL/min.(Adjustable) |
| Data logger function | About 100,000 group of data capacity. |
| Response time | ≤20s/10s |
| Recovery time | ≤20s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Display | Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
| Concentration unit | Mg/m3, ppm |
| Working environment | Working temperature: -30~60 degree;
Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 |
| Alarm mode | Audible-visual-vibration alarm |
| Dimension | 180m’m |
| Weight | 500g |

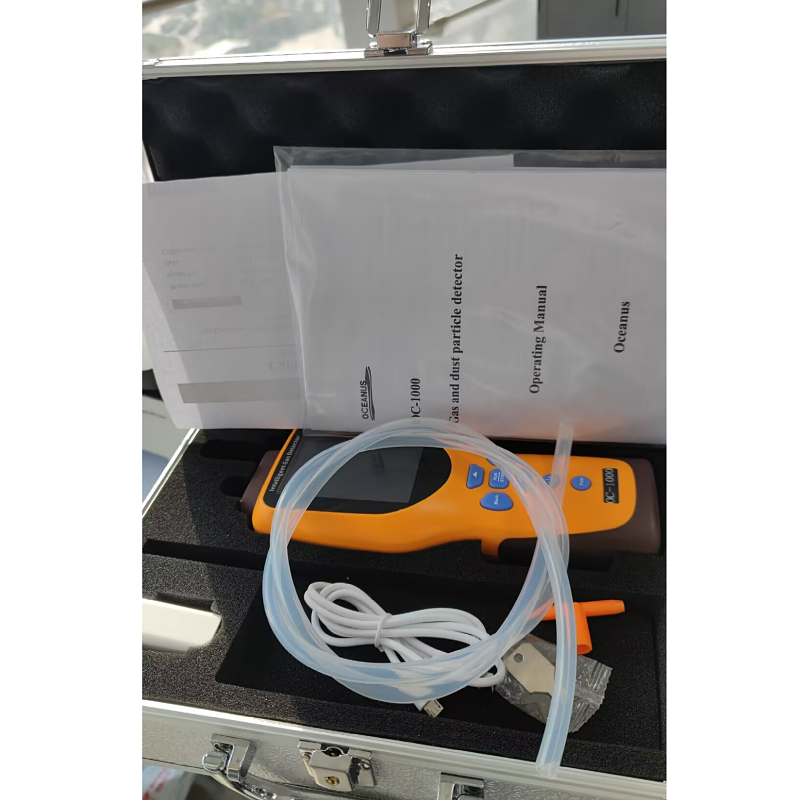

| Accessory | Box, Instruction, USB charger, Data line, Calibration cap, CD |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Application Scenarios
- Welding industry: Real-time purity detection of argon shielding gas for argon arc welding
- Hollow glass manufacturing: Argon filling concentration inspection and airtight leakage test for insulating glass
- Semiconductor & electronic industry: Inert argon protection gas monitoring in production workshops
- Metallurgical smelting: Argon atmosphere protection concentration detection inside smelting furnaces
- Argon gas station & pipeline system: Regular leakage inspection and concentration monitoring of argon storage tanks & delivery pipes
- Laboratory inert gas pipeline safety detection and routine gas concentration verification
