Description
Our Helium (He) Gas Analyzer is specially designed for quantitative detection of helium gas concentration and helium purity. The instrument adopts high-stability thermal conductivity sensor, featuring quick response, low zero drift and excellent long-term stability.
We supply two mainstream configurations: handheld portable helium analyzer for field mobile inspection, and fixed online helium monitor for continuous 24-hour pipeline and workshop online monitoring.
The device adopts industrial-grade main control chip, clear LCD digital display, can directly view real-time helium concentration data. When gas concentration exceeds the preset threshold, the system will trigger sound and light reminder to avoid safety risks and gas waste.
It is widely adopted in gas separation industry, helium recycling projects, pipeline helium leak inspection, semiconductor manufacturing, aerospace testing, balloon production, welding shielding gas monitoring and laboratory gas research. We support personalized customization of detection range, output mode and shell structure to meet diverse industrial working conditions.
Features
- Advanced thermal conductivity sensor, strong anti-interference ability, stable test data
- Ultra-fast response speed, short recovery time, suitable for continuous sampling measurement
- High-definition LCD screen, real-time display helium concentration value, unit switchable
- Multi-group adjustable alarm thresholds, audible and visual dual alarm reminder
- Multiple signal output options: RS485 Modbus, 4-20mA analog signal
- Built-in data storage function, support historical data query and export
- Portable model with rechargeable lithium battery, long endurance for outdoor field use
- Online type supports 24h continuous operation, compatible with PLC and industrial control system
- Optional explosion-proof housing, applicable for flammable and explosive industrial sites
- Support OEM, ODM customization, custom measuring range, shell and interface
Technical Specification:
| Gas type | Helium(He) |
| Working principle | Thermal conductivity sensor for Helium(He) |
| Measuring range | 0-10%、50%、100%、99.999%Vol; Support customized |
| Resolution | 0.01 %Vol , Support customized. |
| Precision | ≤±3%F.S |
| Sampling method | Pump-suction sampling, flow rate of 100~1000mL/min. (Adjustable) |
| Data logger function | About 100,000 group of data capacity. |
| Response time | ≤20s/10s |
| Recovery time | ≤20s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Display | Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
| Concentration unit | %vol, %LEL, ppm, mg/m3 |
| Working environment | Working temperature: -30~60 degree;
Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 |
| Alarm mode | Audible-visual-vibration alarm |
| Dimension | 180m’m |
| Weight | 500g |

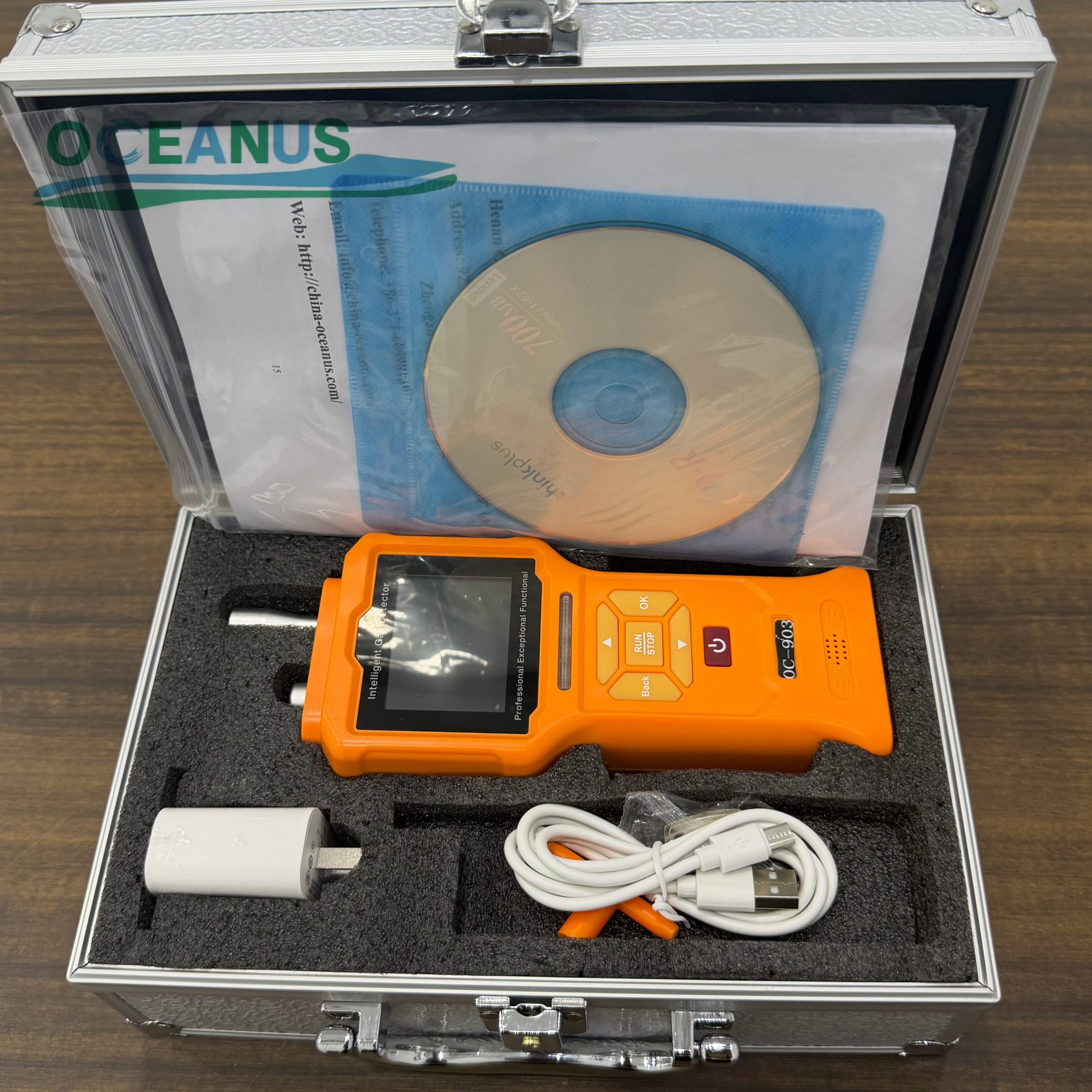

| Accessory | Box, Instruction, USB charger, Data line, Calibration cap, CD |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
