Product Overview

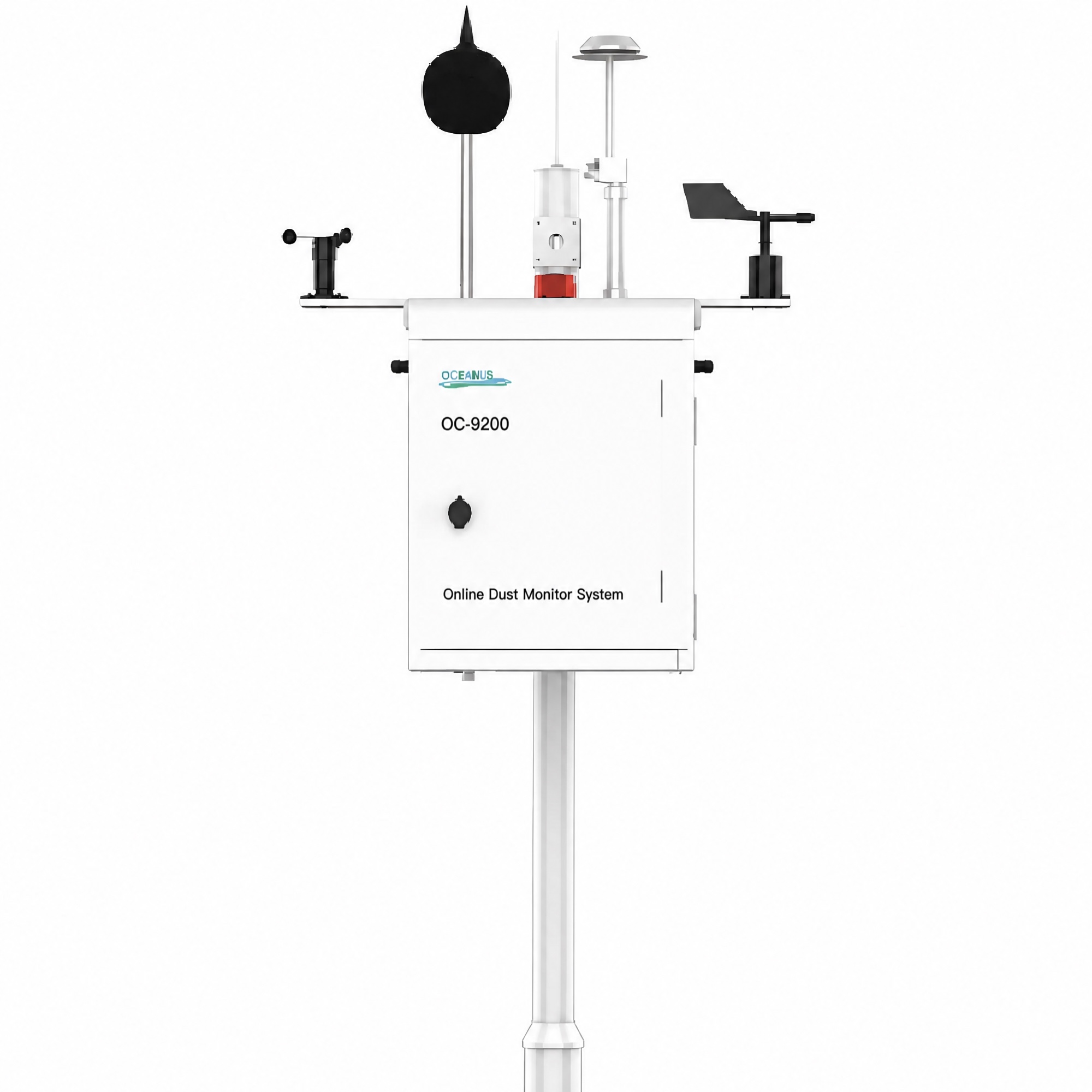

The OC‑9200 Online Dust Monitor System is a professional real‑time particulate monitoring device developed by Oceanus. It accurately detects particulate matters including PM2.5, PM10 and TSP, with PM1 available for customization. Besides dust particles, it measures full‑set meteorological parameters: temperature, humidity, wind speed, wind direction, barometric pressure, noise, rainfall and solar radiation to support comprehensive environmental assessment.
Equipped with imported industrial sensors and laser light scattering measuring principle, together with built‑in automatic heating dehumidification compensation module, the system delivers stable, high‑precision measurement even under complex outdoor climate conditions. It supports 4G/GPRS network transmission, automatically uploading real‑time monitoring data to cloud platform, users can achieve remote real‑time data reading without on‑site manual collection. Widely applied for third‑party environmental monitoring projects, construction sites, mining areas, industrial parks and other scattered monitoring scenarios.
Core Features
- Modular structure design, suitable for large‑scale grid‑style monitoring layout.
- No need to replace sampling cutter, simultaneously monitor PM2.5, PM10 and TSP. PM1 is optional upon request.
- Industrial embedded processor is adopted for circuit board, stable performance to adapt harsh outdoor working conditions.
- Built‑in automatic heating and dehumidification function, effectively eliminate humidity interference to measurement data.
- Long‑life anti‑jamming sampling system, sampling period can be adjusted flexibly.
- Industrial data transmission module guarantees stable and reliable data output.
- Cloud platform supported, realize remote real‑time data access.
- Multiple installation solutions available: pole mounting, tripod installation and more options.
Technical Parameter:
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10, TSP, (PM1 supporting customization) | |
| Measuring range | 0~10mg/m3, customized | |
| Response time | ≤60s | |
| Resolution | 1ug/m3 | |
| Sampling flow | 1.3L/min, precision: ±3% | |
| Sampling time | Adjustable(Default is 5munites) | |
| Dehumidification | With the automatic dehumidification function module | |
| Fault alarm | Real-time display the fault alarm | |
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -40℃~60℃, Precision: ±0.3℃ (20℃) | |
| Humidity: Measuring range: 0~100%RH, Precision:
±2%(5%RH~95%RH, 25℃) |
||
| Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
| Wind speed: Measuring range: 0~30m/s, Precision: ±0.3m/s | ||
| Barometric pressure: Measuring range: 30~110Kpa, Precision: ±2.5pa | ||
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 3G/4G/VPN/WIFI |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1m, Q235 Galvanized material |
| Working environment | Temperature: -30~70℃
Humidity: 10%RH~90%RH Pressure: 65~108Kpa |
| Protection grade | IP55 |
| Power supply | AC220V/50Hz/Solar power (optional) |
Application Scenarios
OC‑9200 online dust monitor system is ideal for scattered or remote monitoring sites where on‑site manual reading is inconvenient.
- Third‑party environmental monitoring institutions
- Construction & demolition sites
- Mining areas, quarry, sand‑gravel yards
- Industrial parks, cement plants, steel plants
- Port terminals, municipal environmental supervision projects
- Highway and tunnel construction projects
