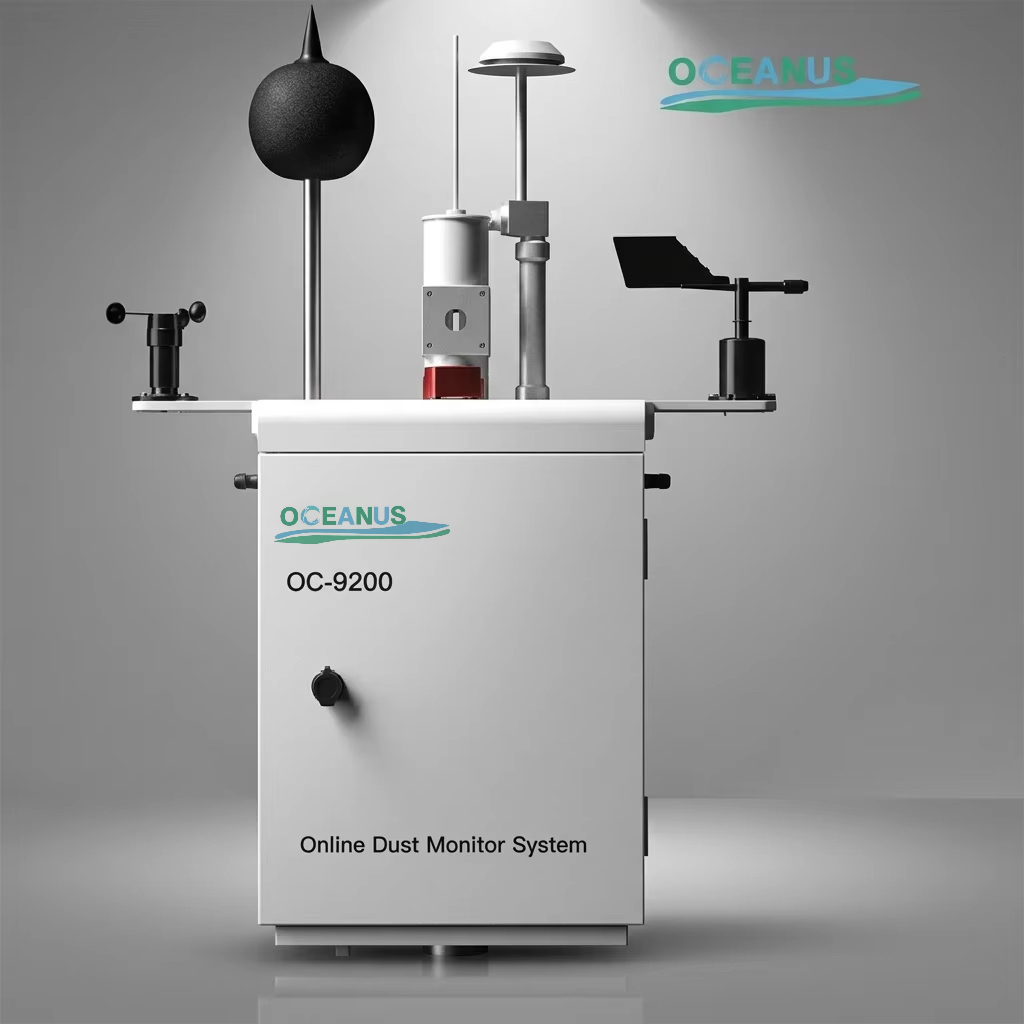

Product Overview
Core Features
- Modular design, convenient for large-scale grid deployment and batch layout
- No need to replace sampling cutter, capable of simultaneous monitoring PM10, PM2.5 and TSP
- Adopts industrial embedded processor, stable operation adaptable to severe outdoor working environment
- Unique automatic heating and dehumidification function, effectively eliminate humidity interference on detection data
- Long service life anti-interference sampling system, adjustable sampling cycle to meet diversified monitoring demands
- Industrial-grade transmission module built-in, guarantee stable and reliable long-distance data transmission
- Cloud platform supporting remote real-time data viewing, data storage and historical query
- Multiple installation options available, including pole mounting, tripod mounting and wall mounting
Technical Parameter:
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10, TSP | |
| Measuring range | 0~10mg/m3 | |
| Response time | ≤60s | |
| Resolution | 1ug/m3 | |
| Sampling flow | 1.3L/min, precision: ±3% | |
| Sampling time | Adjustable(Default is 5munites) | |
| Dehumidification | With the automatic dehumidification function module | |
| Fault alarm | Real-time display the fault alarm | |
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -40℃~60℃, Precision: ±0.3℃ (20℃) | |
| Humidity: Measuring range: 0~100%RH, Precision:
±2%(5%RH~95%RH, 25℃) |
||
| Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
| Wind speed: Measuring range: 0~30m/s, Precision: ±0.3m/s | ||
| Barometric pressure: Measuring range: 30~110Kpa, Precision: ±2.5pa | ||
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 3G/4G/VPN/WIFI |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1m, Q235 Galvanized material |
| Working environment | Temperature: -30~70℃
Humidity: 10%RH~90%RH Pressure: 65~108Kpa |
| Protection grade | IP65 |
| Power supply | AC220V/50Hz/Solar power (optional) |

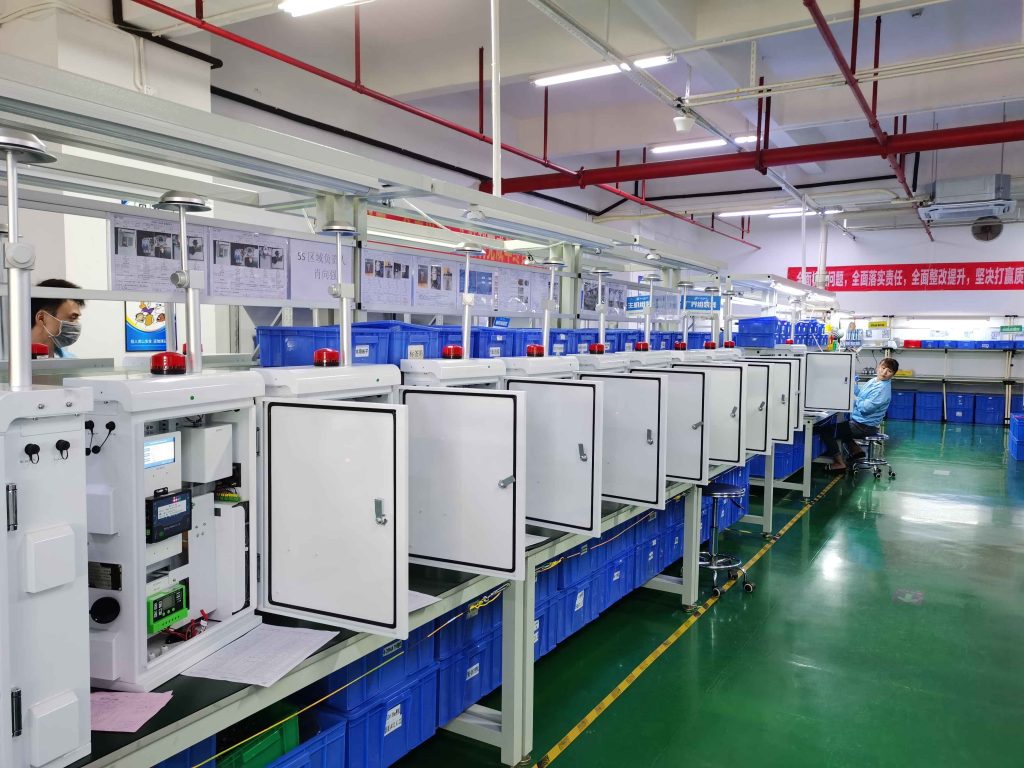

Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Application Scenarios

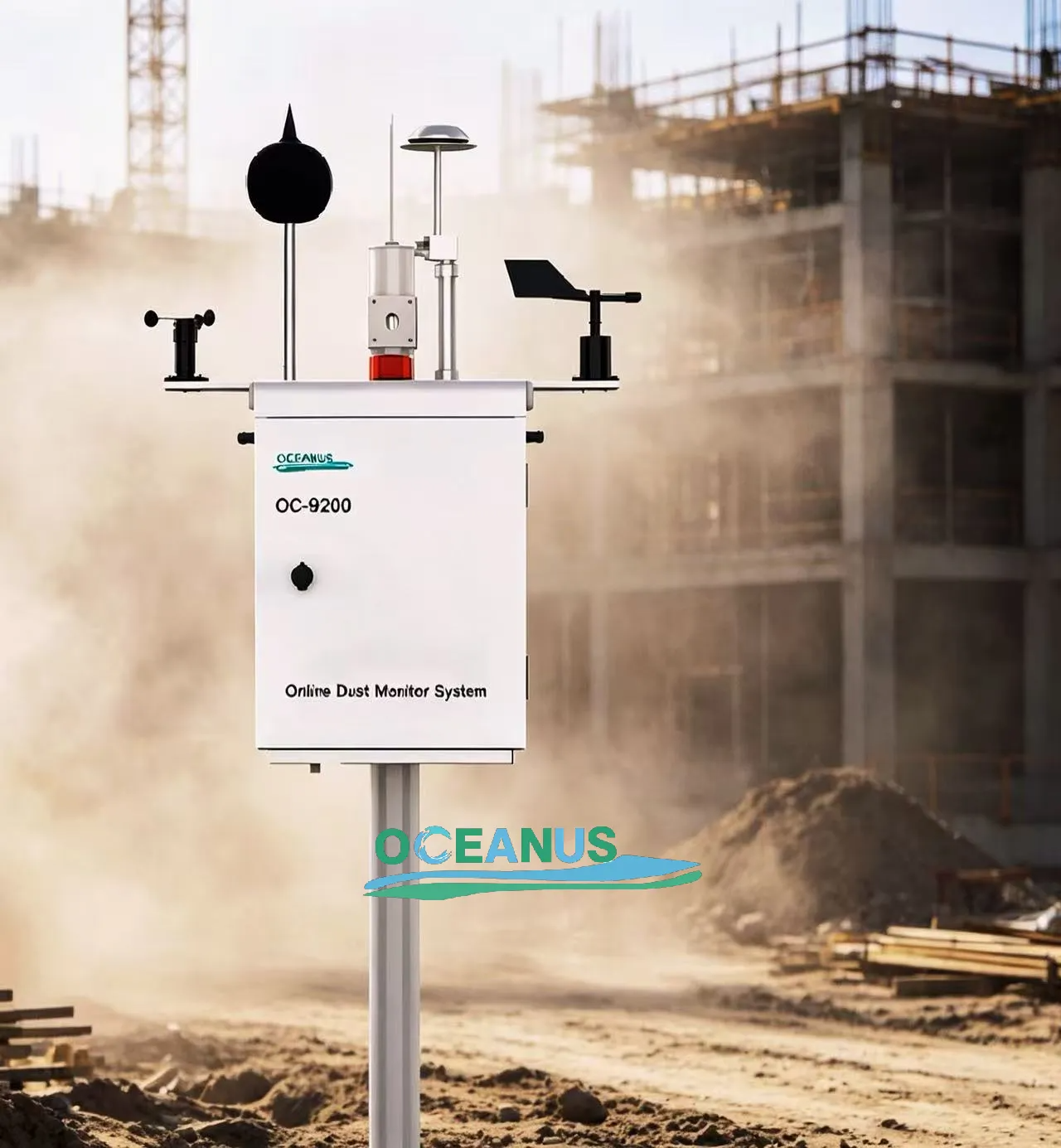

- Construction sites, municipal road projects for dust pollution real-time supervision and over-limit early warning
- Quarries, mines, concrete plants and bulk material storage yards for industrial dust continuous monitoring
- Industrial parks, chemical enterprises for environmental particulate pollution regular monitoring
- Urban environmental air quality grid monitoring, urban scenic spots and residential area ambient dust monitoring
- Ecological environmental protection law enforcement fixed monitoring points for long-term pollution source data recording
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
