Product Overview

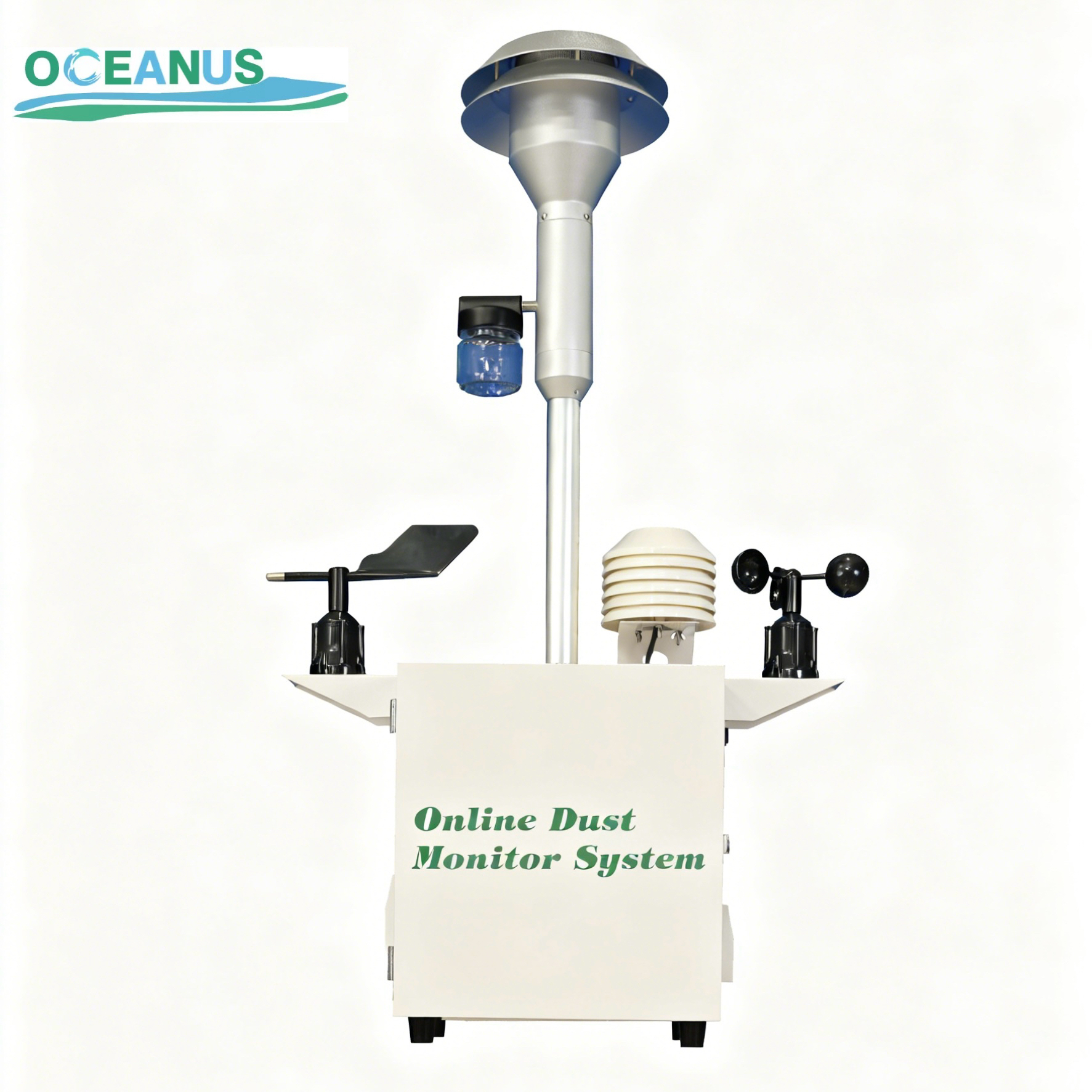

OC-9500 Beta-Ray Online Dust Monitoring System adopts beta-ray absorption principle, applies Carbon-14 as stable radiation source. Ambient air is sampled at constant flow, particulate matters are intercepted on filter tape. The beta ray energy attenuation value is detected to calculate dust mass concentration accurately. Combined with sampling flow, sampling time, filter area and environmental factors, the equipment outputs dust concentration under working & standard status automatically for 24/7 continuous online monitoring.
This integrated monitor is equipped with meteorological sensors (wind speed, wind direction, temperature, humidity, air pressure, noise optional), widely used in construction sites, factories, stockyards, ports and mines for fugitive dust emission supervision.
Core Features
- Beta-ray method measures dust mass directly, stable 24/7 data without seasonal correction
- Supports TSP, PM10, PM2.5 detection with matched particle cutters
- Integrated sampling & detection design effectively reduces measuring errors
- Built-in DHS heating + temperature & humidity compensation for high-precision testing
- Stable dual-channel sampling pump with long service life
- Mass data storage, supports USB export & power-off data protection
- Remote management: calibration, diagnosis, parameter setting and program upgrading
- 4G/Ethernet communication, follows HJ-212 protocol with over 99% data transmission rate
- Optional linkage with dust suppression devices for automatic over-limit control
- IP53 industrial enclosure, stably works in harsh outdoor environments
Technical Parameters
| Items | Details |
| Monitoring Parameters | Dust (TSP/PM10/PM2.5), temp, humidity, air pressure; optional: wind speed, wind direction, noise |
| Measurement Range | 0~10000 μg/m³ |
| Indication Error | ±8% |
| Indication Repeatability | ≤0.9% |
| Zero Drift | ±0.2% FS |
| Sampling Flow Rate | 16.67 L/min |
| Flow Stability | 24h flow variation ≤±2.2%; average drift ≤±1.1%/24h |
| Clock Error | ±0.31s/24h |
| Display Resolution | 0.1 μg/m³ |
| Standard Membrane Reproducibility | ≤±2% |
| Filter Tape | Glass fiber filter tape |
| Radiation Source | C-14（Carbon 14） |
| Concentration Alarm | Arbitrary threshold setting in full range |
| Temperature | Range: -40℃~70℃, Resolution:0.1℃, Accuracy:±0.5℃ |
| Humidity | Range:0~100%RH, Resolution:0.1%RH, Accuracy:±3%RH |
| Air Pressure | 10~110kPa, Resolution:0.1kPa, Accuracy:±0.5kPa |
| Wind Speed (Optional) | 0~45m/s, Start wind ≥0.5m/s, Resolution 0.1m/s, Accuracy ±0.3m/s |
| Wind Direction (Optional) | 0~359°, Resolution 1°, Accuracy ±1° |
| Noise (Optional） | 30~130dB, Resolution 0.1dB, Accuracy ±0.5dB |
| Power Supply | AC 220V ±5% 50Hz / Optional DC 24V |
| Average Power Consumption | 60W |
| Operating Environment | -30℃ ~ 55℃, ≤100%RH (non-condensing) |
| Protection Class | IP53 |
Application Fields

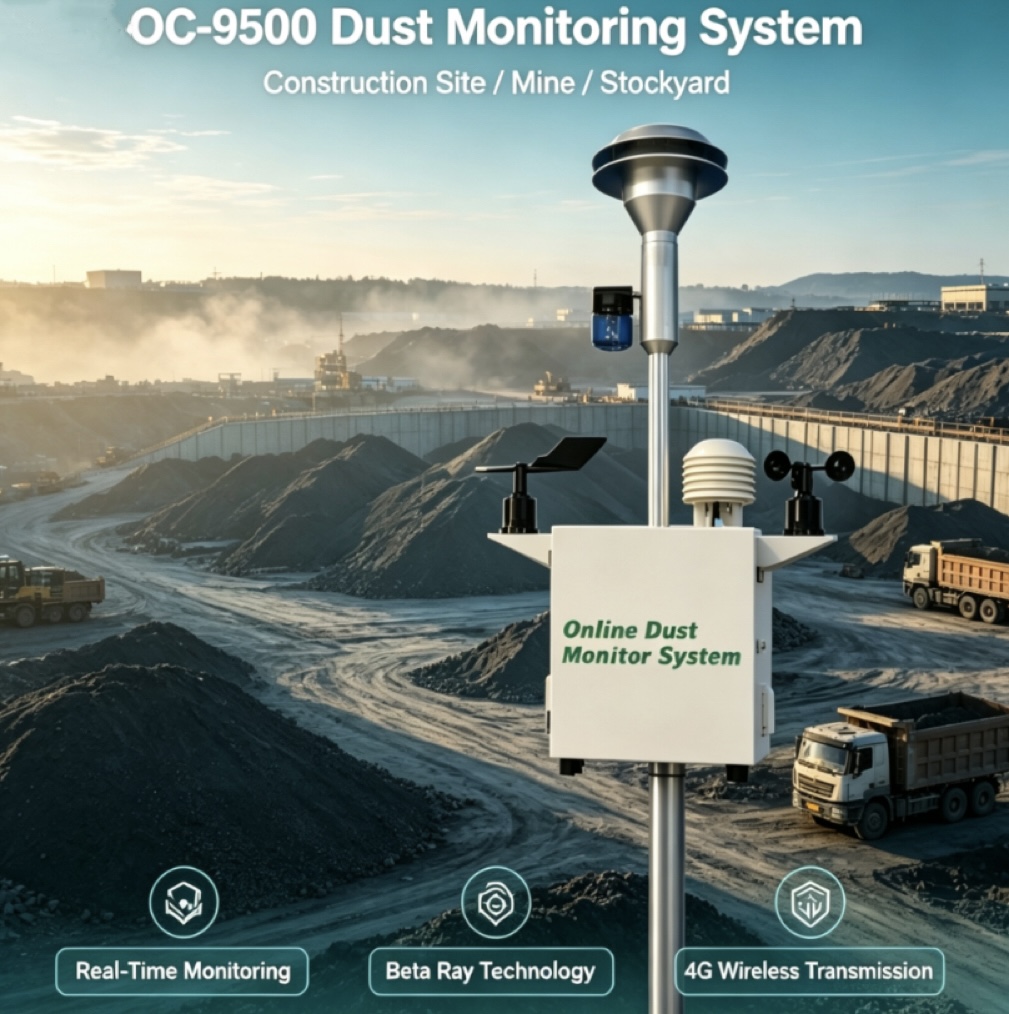

1. Construction site real-time dust online monitoring
2. Fugitive particulate emission monitoring for manufacturing & industrial plants
3. Bulk material stockyard & coal yard dust supervision
4. Port, terminal bulk cargo loading & unloading dust monitoring
5. Urban road floating dust continuous detection
6. Open-pit mine, quarry dust concentration monitoring
7. Park, industrial park regional ambient air quality monitoring
