OC-YPB560 PH/EC/DO multi-parameter tester
Description:
The new flat-panel PH, conductivity, dissolved oxygen tester, simple operation, stable results, suitable for high-precision PH, conductivity, dissolved oxygen measurement in scientific research, quality control, biotechnology, fine chemicals, acid-base titration and other fields . The multi-parameter water quality analyzer adopts a multi-purpose measuring method.
Features:
5 inches LCD screen, 150 degree viewing angle, beautiful design, light weight;
3.5mm electrode connecting wire, easy to connect and easy to use;
Compact support and rotating electrode holder, and can be fixed on the wall, saving space;

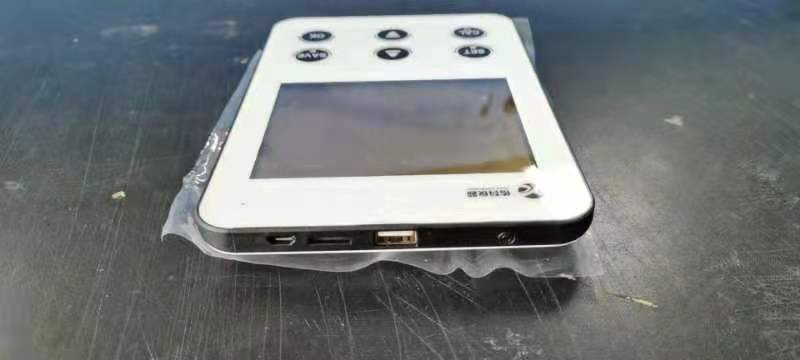

2 USB ports, charging, copying data, connecting to a computer for easy data transmission;
Small size, easy to carry, and can be moved freely in the laboratory;
The battery can be used continuously for 30 hours, automatically shut down in 10 minutes, and the longest can be set to 30 minutes;
One machine for multiple purposes, with different electrodes to measure PH, conductivity, and dissolved oxygen;
Comply with IP54 dust-proof and splash-proof design.
Technical Parameter:
| Items | Specification |
| Measuring range (PH) | （-1.99~19.99）PH |
| Resolution | 0.1/0.01PH |
| Accuracy | Electric meter：±0.002PH
Matching：±0.01PH |
| stability | ±0.002PH/3H |
| Temperature compensation range | Manual / Auto（-5.0~105.0）℃ |
| Items | Specification |
| Measuring range (conductivity) | Conductivity: (0.00~20.00) μS/cm (20.0~200.0) μS/cm
(200~2000) μS/cm (2.00~20.00) mS/cm (20.0~200.0) mS/cm (K=10) Resistivity: (0 ~ 100) MΩ·cm TDS: (0 ~ 100) g/L Salinity: (0 ~ 100) ppt |
| Resolution | 0.01/0.1/1μS/cm 0.01/0.1mS/cm |
| Accuracy | Electric meter：±0.5%FS
Matching：±1.0%FS |
| Temperature compensation range | （0~100）℃（automatic / manual） |
| Cell constant | 0.1/0.5/1/5/10/50/100cm-1 |
| Reference temperature | 25℃、20℃、18℃ |
| Items | Specification |
| Measuring range (dissolved oxygen) | （0~20.00）mg/L（ppm） （0~200.0）% |
| Resolution | 0.1/0.01mg/L（ppm）1/0.1% |
| Accuracy | Electric meter：±0.10mg/L
Matching：±0.40mg/L |
| Temperature compensation range | （0~99）℃（automatic / manual） |
| Salinity compensation range | （0~45）ppt（manual） |
| Air pressure compensation range | （0~200）KPA（manual） |
| Temperature measurement range | -10℃~110℃ |
Applications:
It is suitable for high-precision PH, conductivity, dissolved oxygen measurement in scientific research, quality control, biotechnology, fine chemicals, acid-base titration and other fields.
