OC-1000 Portable CO Detector
Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Core Strengths
The emergence of customizable gas detectors aims to provide users with a comprehensive and high-performance gas detection solution. This product boasts the following significant advantages:
Self-Constructed Closed Loop Of Industrial Integration
Realise the closed loop of design, production and supply chain to ensure the lifeline of quality.
Powerful Brand Influence
With excellent products and services, Henan OCEANUS Import and Export Trading Co., Ltd.’s gas detectors have been exported to more than 30 countries around the world and have won widespread praise.
Product Instruction:
OC-1000 handheld single gas detector is a professional engine exhaust gas analyzer specially designed to measure Carbon Monoxide (CO).
It is equipped with built-in pump suction active sampling and high-precision dedicated electrochemical sensor for Carbon Monoxide (CO), which can rapidly capture low-concentration carbon monoxide from vehicle exhaust.
The device supports real-time digital concentration display, two-stage adjustable audible & visual alarm, large-capacity automatic data storage, and optional thermal printer to print test reports on site.
With ATEX and CE international safety certifications, this CO analyzer is widely used in auto repair shops, vehicle inspection stations, roadside emission supervision and environmental safety patrol.
Features:
Built-in sensors measure gas concentration Temp, Humidity.
Optional mini-printer.
Temp & Humidity testing range： Temperature: -40~120℃; Humidity: 0~100% RH
The measuring range and gas type can be customized according to customer requirements.
Multi-colored LED light bar indicates the level of leakage detected
Low battery indicator
Dimensions: 220*88*55mm
Weight：0.5KG
Particle filter, box, instruction, USB charger , data line, calibration cap.
Audible-visual-vibration alert.
With CE, ROHS,EPA certification.
Technical Parameter:
| Gas type | CO Carbon monoxide | ||
| Working principle | Electrochemical sensor for CO Carbon monoxide | ||
| Particle size | Optional particle sensor of the channels: 0.5um, 1.0um, 2.5um, 10um | ||
| Particle testing mode | Quantity testing(PC/L) and Quality testing(ug/m3) | ||
| Sampling mode | Pump-suction sampling | ||
| Measuring range | 0-500ppm、1000ppm、2000ppm , Support customized | ||
| Resolution | 0.1ppm/0.01ppm | ||
| Precision | ±3%F.S (or customized) | ||
| Dust Temp & Humidity testing range | Temperature: -40~120℃;
Humidity: 0~100% RH |
||
| Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||
| Printer | Optional mini-printer. | ||
| Response time | ≤20s(T90) | Recovery time | ≤20s |
| Repeatability | ≤±1% | Linearity | ≤±1% |
| Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
| Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
| Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
| Gas Working temperature | -30~60℃ | Working humidity | 0-95%RH(non-condensing) |
| Working pressure | 70Kpa ~ 200Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
| Protection grade | IP65 | Shell material | ABS+PC |
| Dimensions | 220*88*55mm | Weight | 0.5KG |

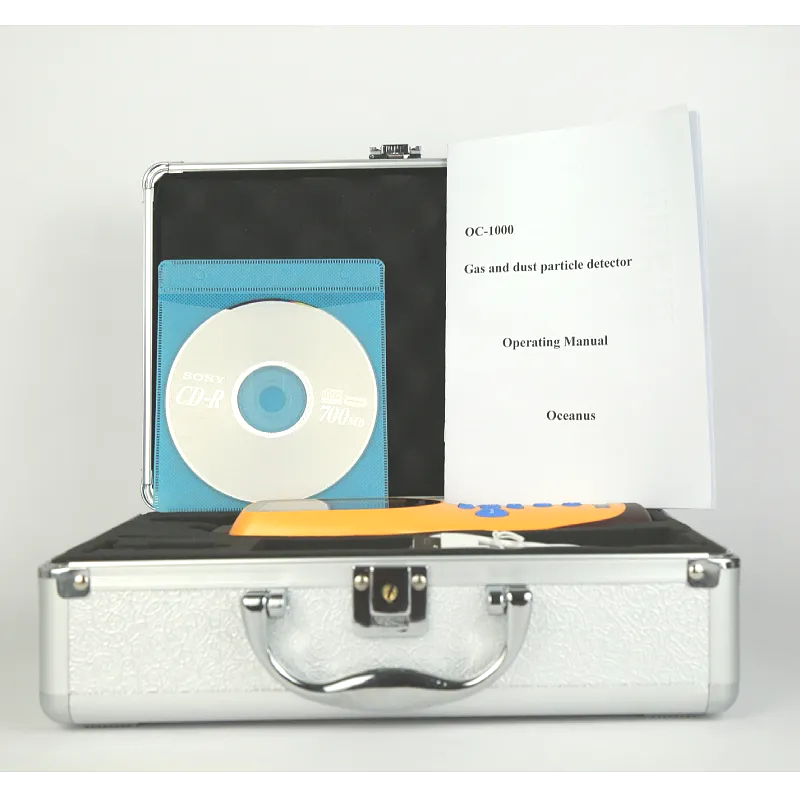

| Standard accessory | Particle filter, box, instruction, USB charger , data line | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Application Scenarios
- Automobile Repair & Maintenance Workshops
- Vehicle Inspection & Testing Stations
- Roadside Environmental Supervision
- Underground Parking & Closed Space Safety Monitoring
- Engine Factory & Automobile Production Lines
- Environmental Law Enforcement & Air Quality Inspection
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
