Description:

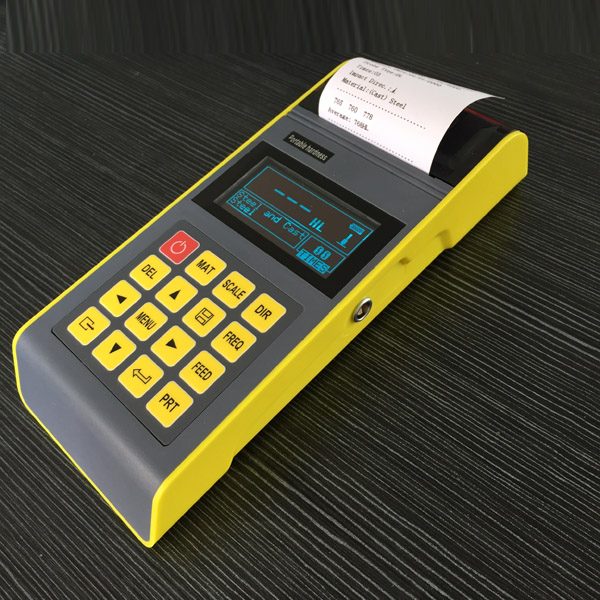

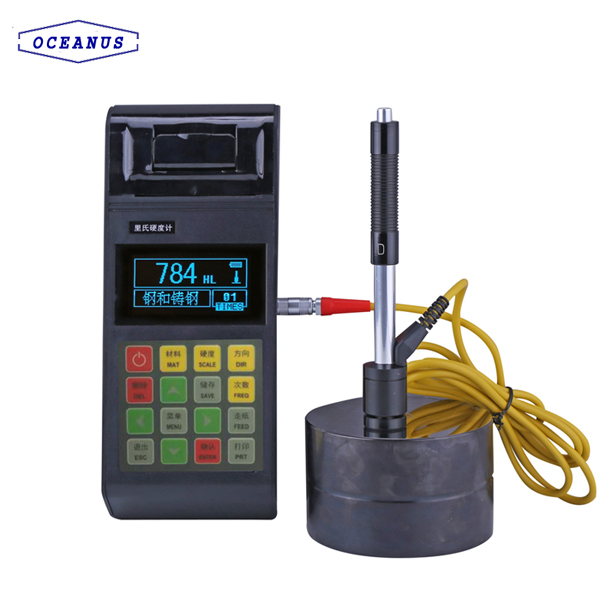

SHL-160 Portable Leeb Hardness tester is the new product designed with the ultra low power consumption, high performance rechargeable battery, Intelligent charging management and the USB communication port. With the built-in thermal printer and the users could print the measuring data freely. The ultra high brightness LCD screen makes it available for different working environment.
Features:
With the English menu and easy operation.
Can equipped with7 kinds of impact device and when change the impact device no need to re-calibrate.
Support for many kinds of hardness scale and three kinds of strength value.
Data memory: 373~2688 groups of data (including of the each measuring data, average value, date, impact direction, frequency, material, hardness unit, etc.)
Alarm output: Could set the high alarm data and low alarm data, when beyond the range will alarm, suitable for the batch testing.
Calibration function: With the indication software calibration function.
Battery: Rechargeable lithium battery support for long time working time and the battery status display on the screen.
Software (Optional): According to customers’ need to equip the software to manage the measuring data.
Technical parameter:
Indication error and repeatability:
| Item | Impact device | Standard Leeb Hardness block value | Indication error | Indication repeatability |
| 1 | D | 760±30HLD
530±40HLD |
±5 HLD
±8 HLD |
5 HLD
8 HLD |
| 2 | DC | 760±30HLDC
530±40HLDC |
±5 HLDC
±8 HLDC |
5 HLD
8 HLD |
| 3 | DL | 878±30HLDL
736±40HLDL |
±10 HLDL | 10 HLDL |
| 4 | D+15 | 766±30HLD+15
544±40HLD+15 |
±10 HLD+12 | 10 HLD+12 |
| 5 | G | 590±40HLG
500±40HLG |
±10 HLG | 10 HLG |
| 6 | E | 725±30HLE
508±40HLE |
±10 HLE | 10 HLE |
| 7 | C | 822±30HLC
590±40HLC |
±10 HLC | 10 HLC |
| Measuring range | HLD (170~960), HRA (59~85), HRB (13~100), HRC (18~68), HB (19~655), HV (80~976), HS (32~100) |
| Measuring direction | 360° |
| Hardness scale | HL, HB, HRB, HRC, HRA, HV, HS. |
| Impact device | D type impact device standard, optional C/G/DC/D+15/E/DL. |
| Applications | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper and forged steel. |
| Display | 128*64 LCD display |
| Print function | Thermal printer can print the measuring results. |
| Print paper | Width: 57.5±0.5mm, Diameter: 30mm. |
| Data memory | 373~2688 groups. |
| Power supply | 5VDC, 220VAC |
| Charging time | 4~5 hours |
| Battery | 7.4V, 1500mAh rechargeable lithium battery. (Working for 300hours continuously, when not open the backlight.) |
| Working temperature | 0~40 degree |
| Storage temperature | -25~70 degree |
| Communication model | USB port |

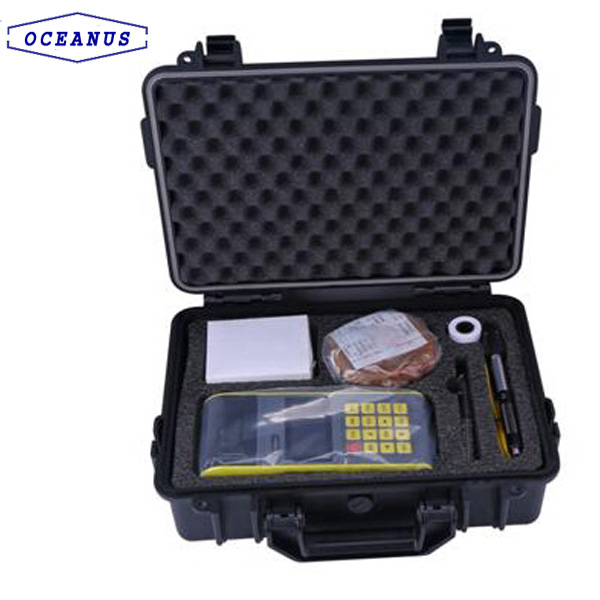

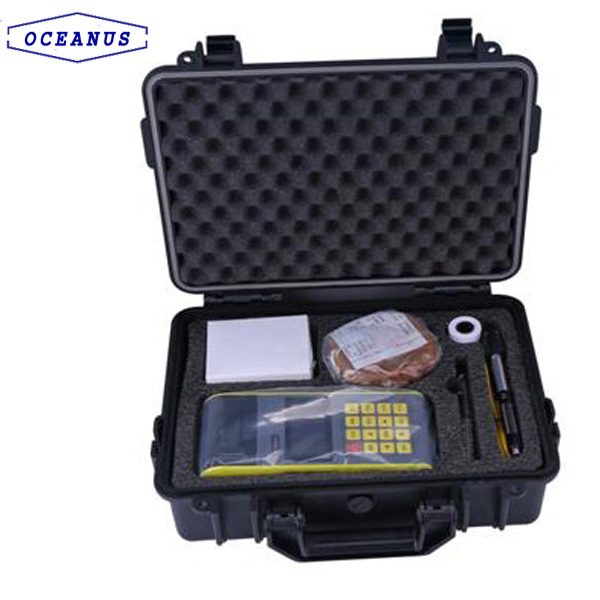

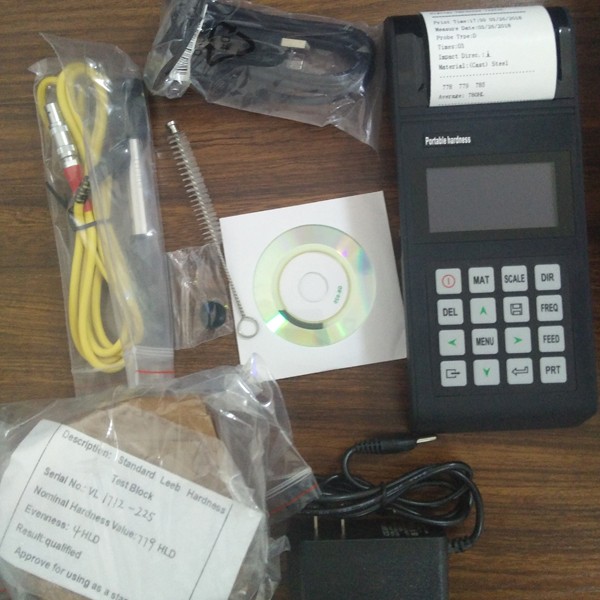

Standard accessories:
| SHL-160 Hardness tester | 1pc |
| D type impact device | 1pc |
| Nylon brush | 1pc |
| High value test block | 1pc |
| Small support ring | 1pc |
| Operation manual | 1pc |
| Charger | 1pc |
Optional accessories:
Data manage software (used on PC);
Different type Impact device and support ring;
Leeb hardness block with different value.
Our company provides the different type Hardness tester, including of the Rockwell Hardness tester, Leeb Hardness tester, Barcol Hardness tester, Webster Hardness tester, Micro Hardness tester.
If any questions on the Hardness tester, welcome to contact us:
