Description:

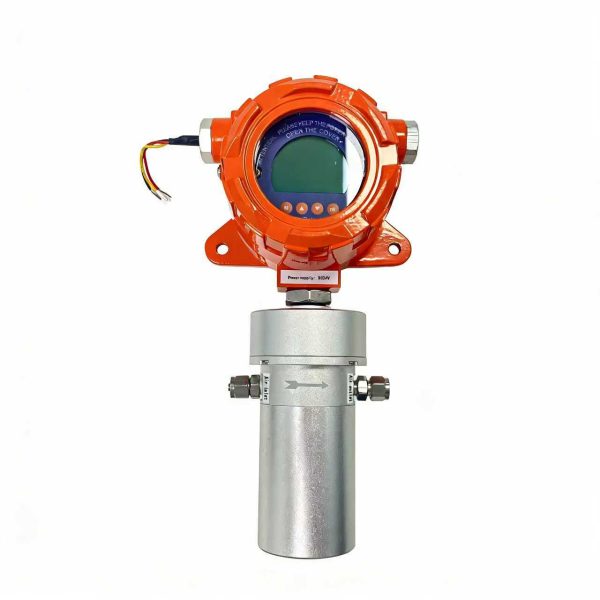

OC-F08 fixed propane gas leak detector can be connected with various control systems such as PLC, DCS, computer, etc., and has functions of remote monitoring and alarming, data recording and analysis. Imported sensors are adopted, with high precision, good repeatability, stable signal and fast response.
Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Nitrogen N2 gas concentration.
Features:
4-20mA standard analog signal and RS485 digital signal output, 200~1000HZ signal output, relay output, data restore, data logger (optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor
Protection function to prevent high gas concentration attack.
Display the gas concentration in %vol.
Infrared remote controller operation;
With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability.
With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.
Technical Parameter:
| Applicable Gas | Propane (C3H8) |
| Detecting Range | 0~100%LEL or customized |
| Resolution | customized |
| Sampling | Diffusion or pump-suction, circulation selectable |
| Accuracy | ≤±3%F.S |
| Repeatability | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Sensor Type | Catalytic combustion sensor |
| Sensor Life | 2~3 years |
| Response Time (T90) | ≤20s |
| Alarming mode | Audible-visual alarm（Optional） |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands)
Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: 86kPa~106kPa |
| Working Voltage | 24V DC(16~30VDC) |
| Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc;
(Optional) Four-wire system RS485 digital signal output; (Optional) Frequency signal 200~1000Hz output; Two-level relay output:220VAC 0.5A, 5VDC 0.5A |
| Installation Means | Wall mounted, Pipe type(Thread:M40*1.5 ) |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Electrical Interface | 3/4″NPT(Female Screw)、1/2″NPT(Female Screw) |
| Transmit Distance | ≤2000m |
| Dimension | 210 mm×140 mm×92 mm（L×W×H） |
| Weight | About 1.5Kg |
| Warranty | 12 months |
| Standards | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
