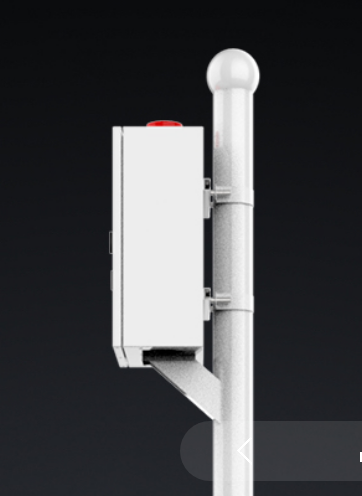

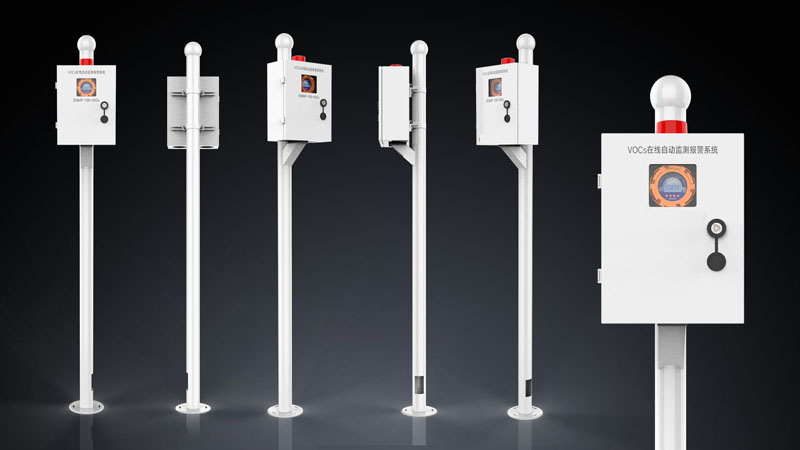

The VOCs online gas analyzer is a new gas analyzer system based on OC-F08 which use the original import PID sensors and 32 bit low power processor. The screen displays the values and figures at the same time. The circuit uses 4 layers of wiring for weak signal and anti-interference; independent high precision import 16 bit AD chip and special signal processing algorithm, the accuracy of measurement data is much higher and more stable.
Features：
The imported high performance PID sensor from UK, has good stability and repeatability and long service life.
Pre-stage pretreatment unit and Post-stage pretreatment unit: the pre-stage pretreatment unit processes the extracted samples preliminarily, so that the sample is suitable for transmission, shortens the transmission lag of the sample, and lightens the burden of the processing unit, such as decompression, cooling, and dust removal etc. The post stage pretreatment unit can further deal with and adjust the sample, such as temperature, pressure, flow regulation, filtration, dehumidification, removal of harmful substances, safety pressure relief and current limiting, etc.
With function of Real-time display of temperature and humidity;
Suitable for efficient and fast water removal, which can be used online for a long time;
Suitable for working in high temperature, high dust and high oil gas, such as boiler flue gas, automobile exhaust, environmental protection department, industrial production process monitoring, pollution source monitoring, heavy metal online monitoring, desulfurization and denitrification monitoring, waste incineration flue gas emission monitoring, volatile organic matter (VOC) monitoring, biogas online monitoring, etc.
Display the gas concentration in mg/m3、ppm、pphm、ppb is selectable;
The online curve graph shows that data can be viewed in real time;
Selection of multiple signal transmission modes: Wireless, Bluetooth, Optical fiber, NB, etc.
Seamless docking system platform, host computer system to achieve diversified operation;
Mobile APP terminal can easily check data anytime and anywhere;

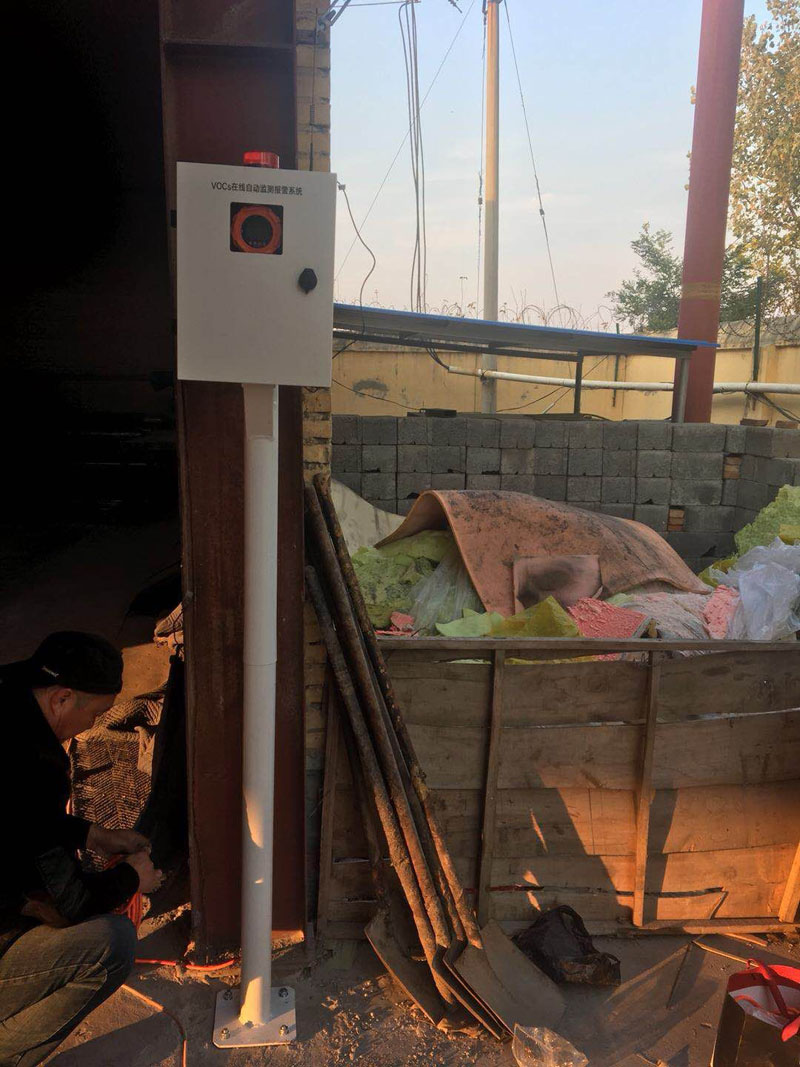

Wall mounted independent installation, no need to debug, directly begin to work.
Target detection gas:
Industrial emission of organic volatile waste gas;
Quantitative and qualitative analysis of Total hydrocarbons (THC) and Non methane total; hydrocarbons (NMHX), Benzene, Dimethylformamide(DMF), Alkenes, Aromatics and Cyclic aromatic hydrocarbons in the discharge pipeline;
Complex toxic and harmful organic compounds in industrial or chemical areas;
Online monitoring of pollution source VOCS;
Online monitoring of odor organic sulfides;
Online monitoring of multi point unorganized emission in the factory.
Normal applications:
Industrial coating;
Manufacturing of transportation equipment;
Packaging & printing;
Paint manufacturing;
Organic chemical industry;
Tire manufacturing;
Furniture manufacturing;
Semiconductor integrated circuit;
Household Electric Appliances;
Wire and cable;
Spray paint & dry-clean;
Shoe making;
Synthetic material;
Monosodium glutamate manufacturing;
Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
Technical specification:
| Detection gas | Total hydrocarbons (THC), Methane and Non methane total hydrocarbons (NMHC), Benzene, Toluene, Xylene, etc. |
| Reference method | GB16297-1997 |
| Detection method | Continuously online detection and pump-suction sampling |
| Power Supply | AC220V，50Hz，5KW |
| Detection mode | Automatic real-time detection of multichannel different emission points |
| Working principle | PID sensor |
| Measure range | 0~1ppm, 10ppm, 100ppm, 1000ppm, 10000ppm or customized |
| Resolution | 0.001ppm ,0.01ppm，0.1ppm，1ppm |
| Accuracy | ≤±2%F.S |
| Lowest detection concentration | NMHC: 0.1ppm(CH4)
TVOC：0.1ppm |
| Repeatability | NMHC：≤±3%F.S.
TVOC： ≤±3%F.S. |
| Zero drift | NMHC：±0.5%F.S./D
TVOC： ±0.5%F.S./D |
| Span Drift | NMHC：≤±3%F.S.
TVOC： ≤±3%F.S. |
| Sampling velocity | 0.5-1.0L/min |
| Preprocessing method | Adding preconditioning facilities |
| Dust removal | The multistage precision filter（2μ-0.2μ） |
| Flow control | Large flow vacuum pump & flow controller |
| Button display | Display operation, sampling, calibration, exception and other automatic running state. |
| Data transmission | Long-distance transmission such as wireless, APP, optical fiber, etc. |
| Sensor Response Time (T90) | ≤20s |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands)
Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: ≤200kPa |
| Sensor Signals transmission | Two-level replay output:220VAC 0.5A, 5VDC 0.5A
(Optional) Data remote transmission and alarm through the Wireless module, also can realize the Ethernet access. |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Dimension | 80cm×70 cm×30cm（L×W×H） |
| Weight | About 5Kg |
| Warranty | 12 months |
| Standards | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
