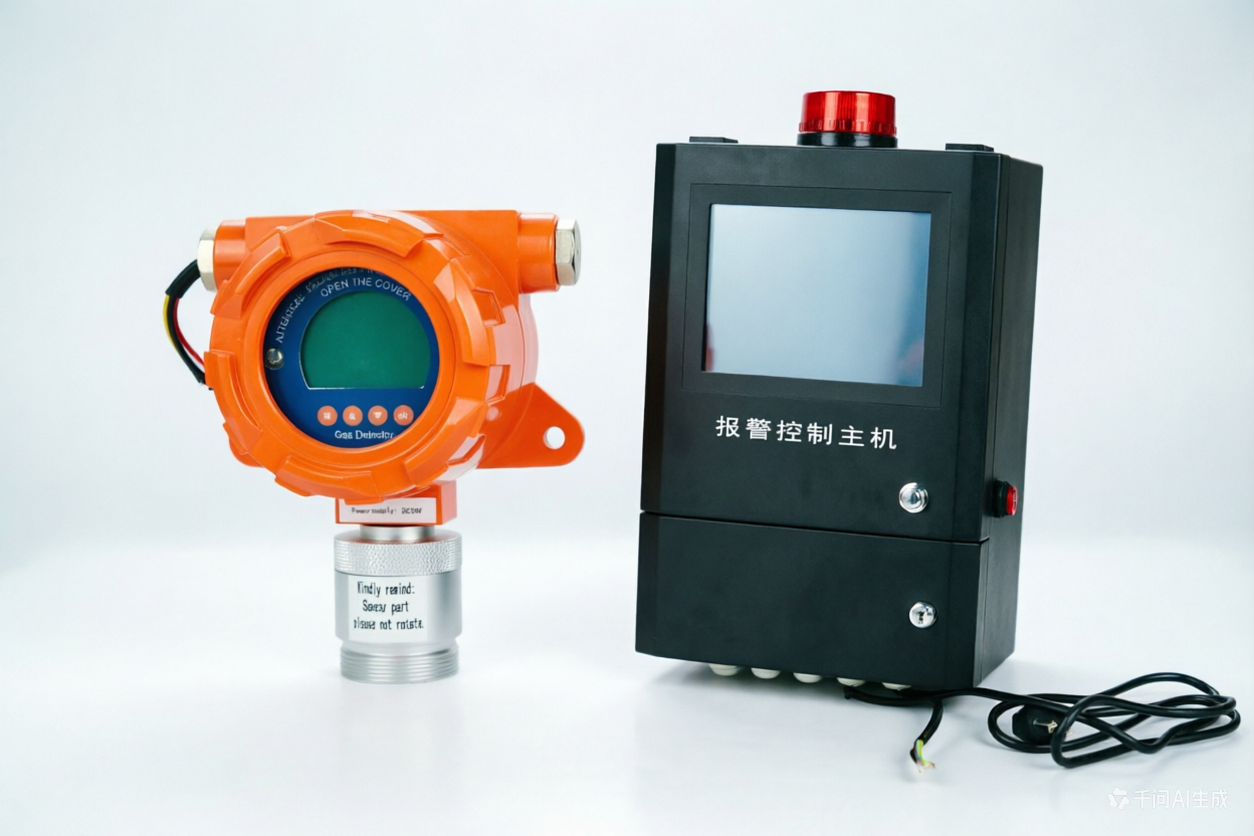

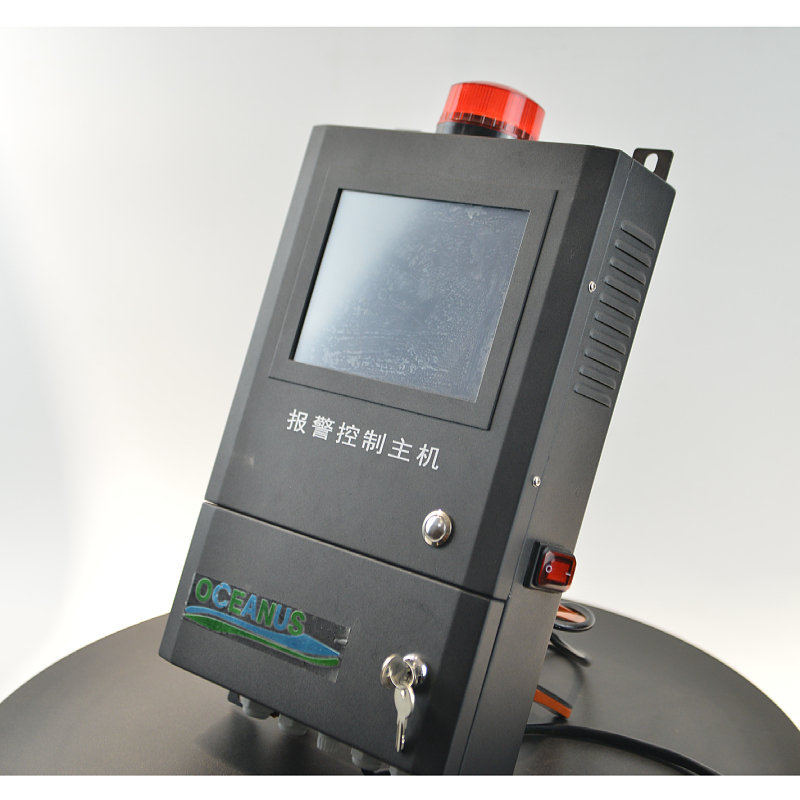

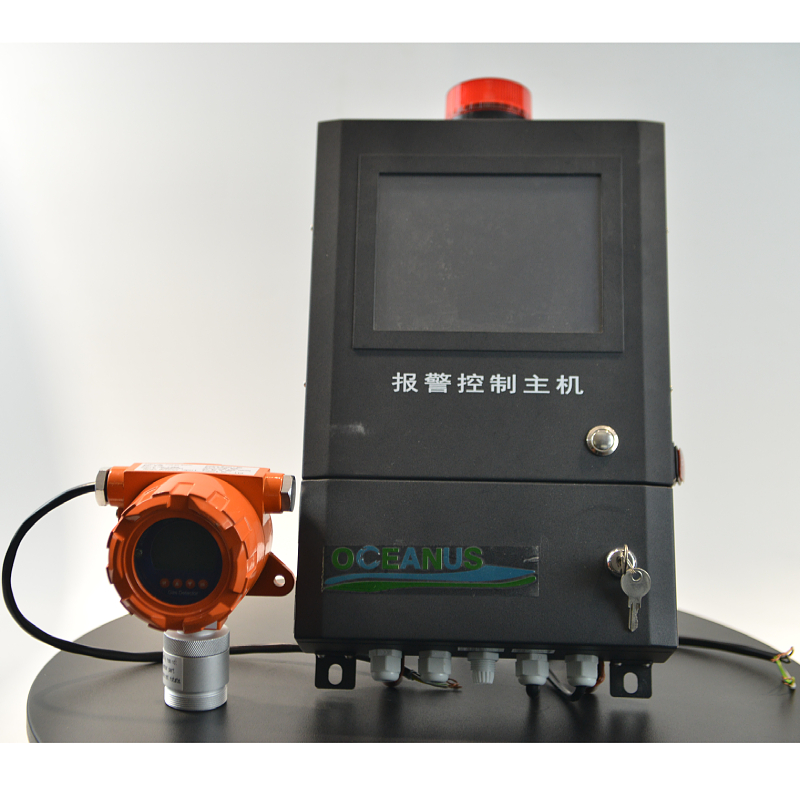

OC-8000 gas detection controller is a centralized monitoring host perfectly matched with OC-F08 fixed gas leak detector. Equipped with 8-inch TFT touch screen, it realizes unified real-time data display for up to 32 gas detectors. It supports automatic linkage exhaust fans, solenoid valves and audible & visual alarms to prevent gas leakage explosion, poisoning accidents, realizing full-site intelligent safety protection for factories.
Core Advantages
- Intuitive 8-inch touch screen, simple operation, real-time centralized display of all detector gas concentration data
- Adopt RS485 communication protocol, long-distance transmission up to 2000m, stable signal
- Built-in 4 groups relay output, support automatic linkage external equipment: exhaust fan, cut-off valve, sound-light alarm
- Wall-mounted installation, IP54 protection grade, stable operation in industrial workshop environment

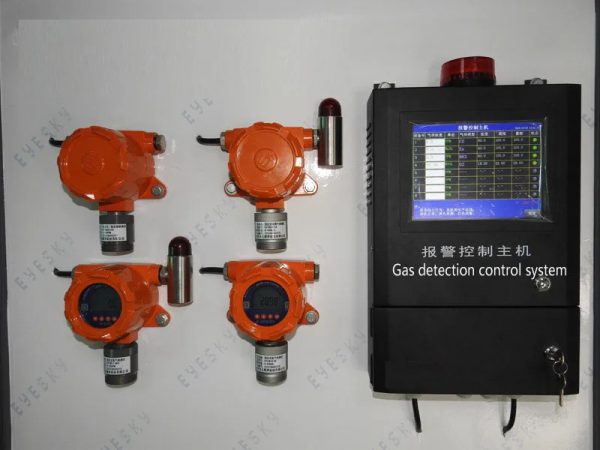

- Max connect 32 units OC-F08 gas leak detectors, realize large-area regional centralized monitoring

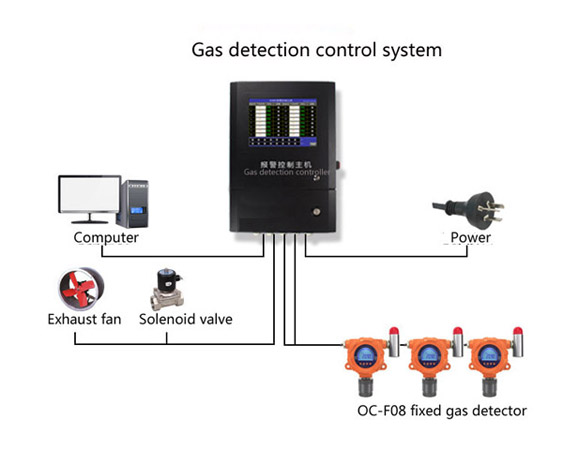

Complete System Matching Scheme
Host Controller: OC-8000 Gas Detection Controller
Linked Equipment: Exhaust fan, solenoid shut-off valve, audible and visual alarm, upper computer monitoring PC
Specification
| Item | Description |
| Product name | Gas detection controller |
| Display | 8 inch TFT LCD touch screen |
| Power supply | AC220V±15%, 50Hz±1% |
| Consumption | ≤10W(according to different channels) |
| Output voltage | DC24V±15% |
| Input signal | 4~20mA/ RS-485 |
| Relay output | 4 relay output with optional NO or NC |
| Relay contact capacity | 5A, 30VDC or 5A, 220VAC |
| Alarm mode | Audible, visual |
| Installation mode | Wall-mounted |
| Suitable gas detector | Gas detector with 4~20mA signal output |
| Gas detector quantity | ≤64pc |
| Communication distance | ≤2000m |
| Working temperature | -10℃~+50℃ |
| Working humidity | 10~95%RH（Non-condensation） |
| Size | 400mm*280mm*80mm |
| Weight | About 3.6kg |
| Protection grade | IP54 |
| Quality standard | GB 16808-2008 GB 15326-1994 |
Application Scenarios
We Henan Oceanus Company is located in Henan province, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of air quality monitor system since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global market.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
After-sales Service
- 12-month full machine warranty
- Free remote technical guidance for wiring, parameter debugging and relay linkage setting
- Support customized channel quantity and relay function configuration according to factory monitoring requirements
- Lifetime technical support and spare parts supply service
- Professional system matching scheme design for chemical plant & oil depot gas safety projects
