Accurate air quality data begins with proper installation. Whether monitoring urban environments, industrial parks, road traffic, construction sites, or residential communities, correct installation ensures stable operation, reliable measurements, and long service life.
AQM-09, AQMS-09, and OC-9200 are designed for continuous outdoor environmental monitoring. With optional 4G cloud platform, LED display screen, solar power supply, and multiple installation methods, they provide a flexible solution for modern air quality monitoring projects.
Which Products Does This Guide Apply To?
AQM-09
Integrated multi-gas air quality monitor supporting gases such as CO, SO₂, NO₂, O₃, CO₂, TVOC and meteorological sensors.
AQMS-09
Professional online ambient air monitoring station with pump-suction sampling, DHS dynamic heating humidity compensation, LED display and cloud platform.
OC-9200
Real-time particulate monitor for PM2.5, PM10 and TSP with meteorological monitoring.
Installation Methods

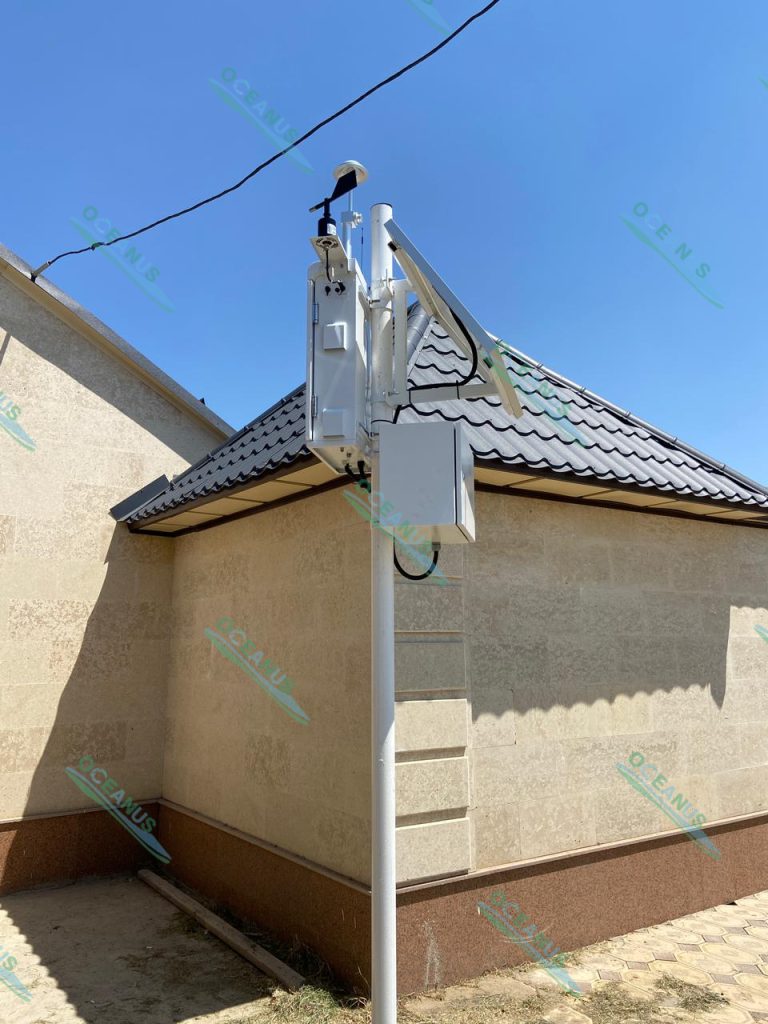

1. Pole Mount Installation (Recommended)
Pole mounting is the most common installation method for the AQM-09, AQMS-09, and OC-9200. It provides excellent airflow and stable monitoring performance, making it ideal for long-term outdoor environmental monitoring.
The installation pole height can be customized and adjusted from 3 to 6 meters, meeting standard environmental monitoring sampling height requirements and ensuring accurate and representative air quality data collection.
Recommended Applications
- Urban roads
- Industrial parks
- Residential communities
- Schools and campuses
- Environmental monitoring stations
Advantages
- Adjustable 3–6 m monitoring height to meet environmental monitoring requirements
- Better airflow for more representative monitoring data
- Stable and secure installation
- Easy maintenance and calibration
- Suitable for long-term unattended operation

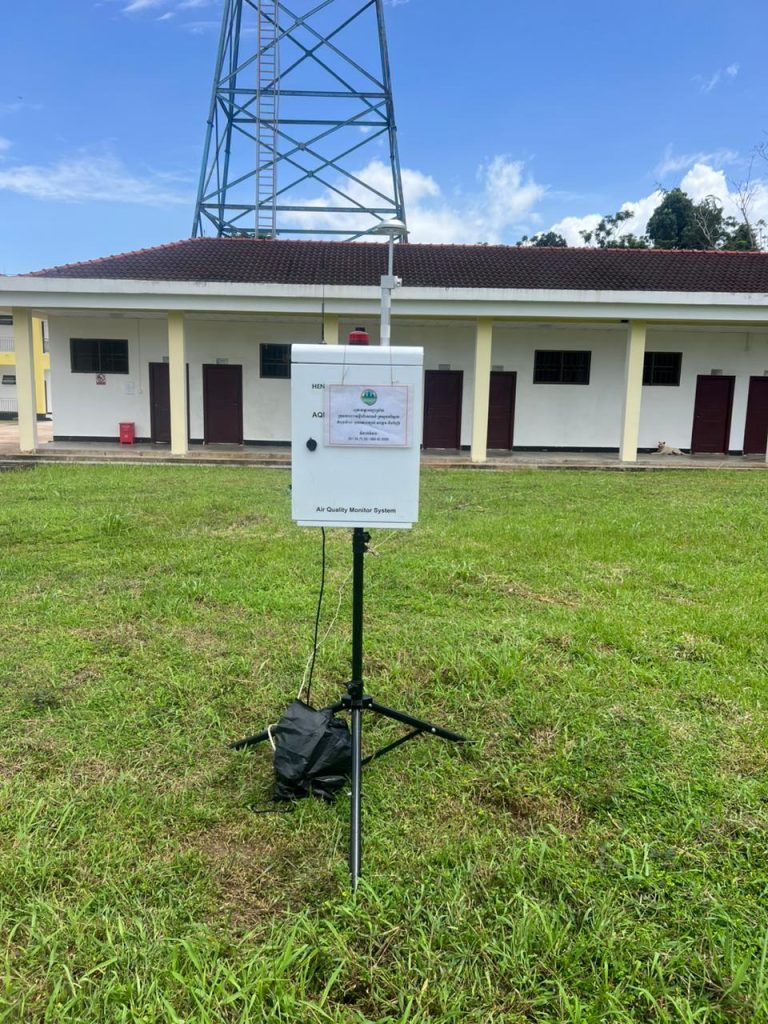

2. Tripod Installation
Suitable for:
- Temporary monitoring
- Construction projects
- Environmental assessments
- Scientific research
Recommended Installation Location
For optimal monitoring performance:
- Install in an open, well-ventilated area.
- Avoid direct obstruction from buildings or trees.
- Keep away from chimneys, exhaust outlets and heat sources unless monitoring those specific emissions.
- Ensure stable power supply and reliable network coverage.
- Leave enough space for maintenance and calibration.
Proper siting is one of the most important factors affecting measurement quality.
Smart Features
4G Cloud Platform
AQM-09、AQMS-09 and OC-9200 support real-time 4G/GPRS wireless communication, allowing monitoring data to be uploaded automatically to the cloud platform for remote management.
Benefits include:
- Real-time monitoring
- Historical data storage
- Remote device management
- Multi-site monitoring
- Alarm notifications
Outdoor LED Display
The LED display allows real-time air quality data to be shown publicly.
Suitable for:
- Smart cities
- Industrial parks
- Schools
- Communities
- Tourist attractions

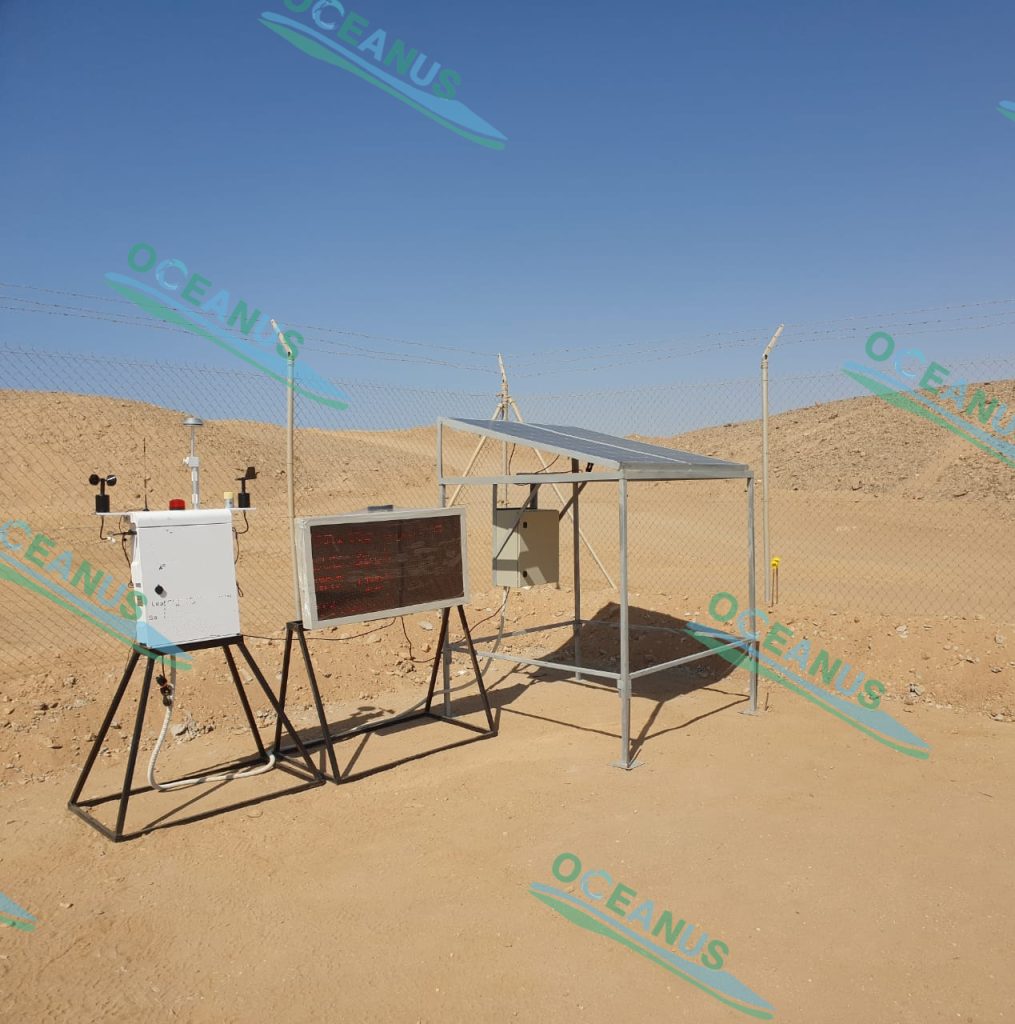

Solar Power Supply
For locations without stable AC power, solar panels and batteries can be installed to achieve continuous outdoor monitoring.
Typical Applications
The AQM-09, AQMS-09 and OC-9200 are widely used for:
- Urban ambient air quality monitoring
- Road and tunnel pollution monitoring
- Industrial park environmental monitoring
- Construction site dust monitoring
- Residential community monitoring
- Schools and hospitals
- Port and logistics areas
- Waste treatment facilities
- Environmental impact assessment projects
Whether you require a versatile gas monitoring solution such as the AQM-09 Air Quality Monitor System , or a compact particulate monitor like the OC-9200 Online Dust Monitor System, or the professional AQMS-09 Ambient Air Quality Monitor Station, proper installation is the foundation for obtaining accurate environmental data.
With flexible mounting options, 4G cloud platform, LED display, solar power, and continuous real-time monitoring, these systems provide a reliable solution for smart environmental monitoring projects around the world.
