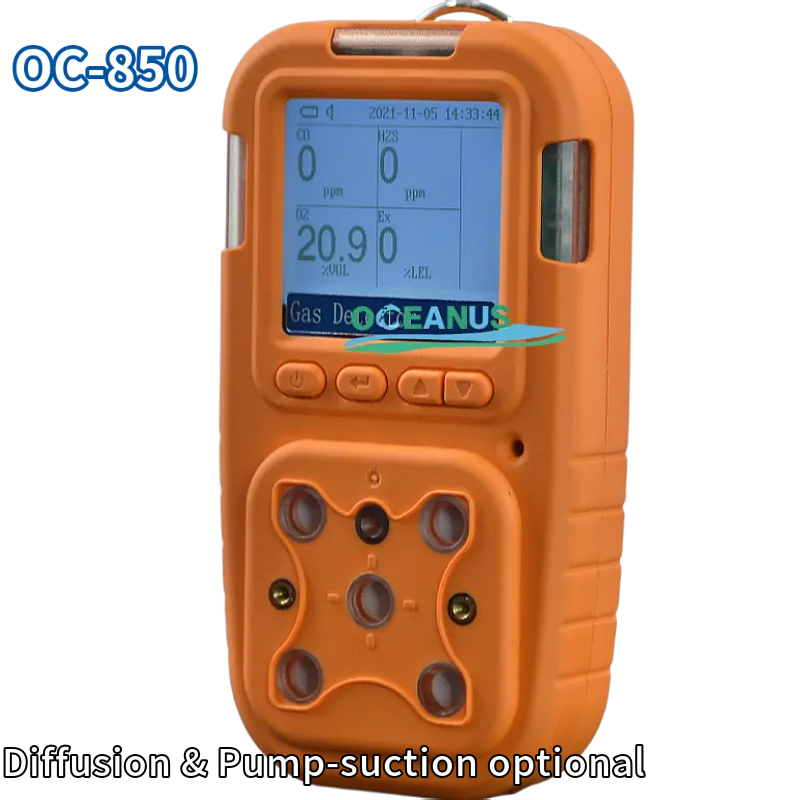

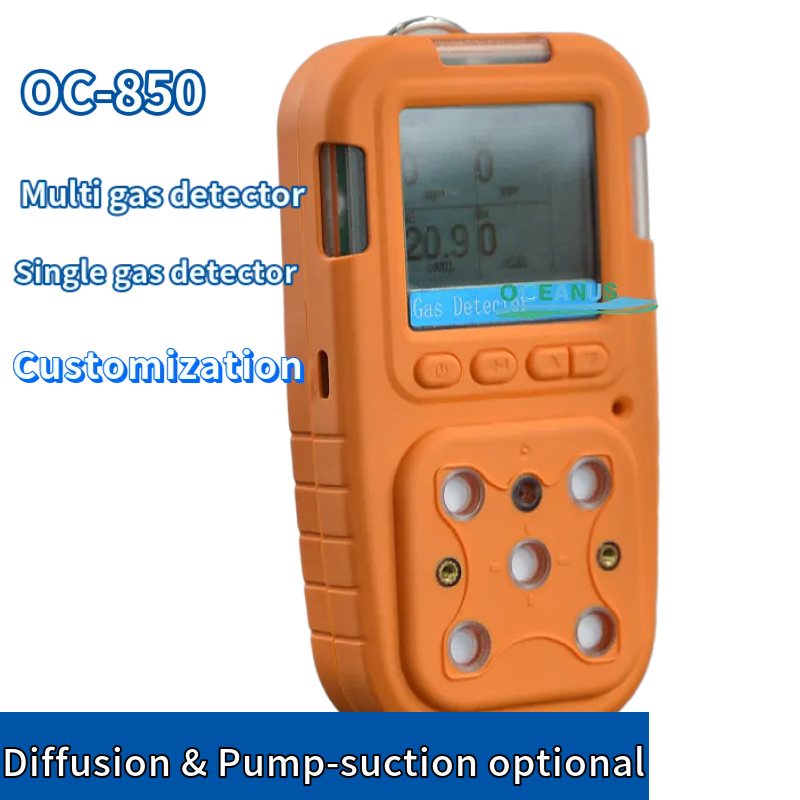

OC-850 5 In 1 Portable Pump-Function Gas Detector
The OC-850 multi gas detector can detector 1-5 gas type, including Electrochemistry sensors, NDIR sensors, PID sensors or Semiconductor sensors. Combine gas types more freely, customized for most detecting gas leakage environment. Pump suction model and diffusion type for customers choosing.
This detector use LCD display screen, it can show the information such as detecting gas concentration, gas name, alarm situation and so on. Use the import sensors to ensure the detecting accuracy. Stainless steel filter screen to keep the sensor solid and keep gas get through more smoothly.
Features:
Data storage function, can storage 9999 alarm data;
Easy switch English or Chinese language;
Multi gas unit can customized, PPM, %VOL, %LEL, etc;
Mini gas pump, long working time, little noise;(Optional Pump-type)
Gas type combine freely, supply for various detecting environments;
Function:
Monitor the gas concentration in the environment or confined space and alarm;
With self calibration function and zero calibration function, the gas monitoring is more accurate and reliable;
The factory setting function can be restored with one key to avoid the trouble of mis-operation;
With temperature and pressure compensation, it can perfectly compensate the gas concentration under different temperature and pressure environments;
Two level sound, light and vibration alarm, and the alarm point can be set by itself;
Large capacity lithium polymer rechargeable battery to ensure long working time;

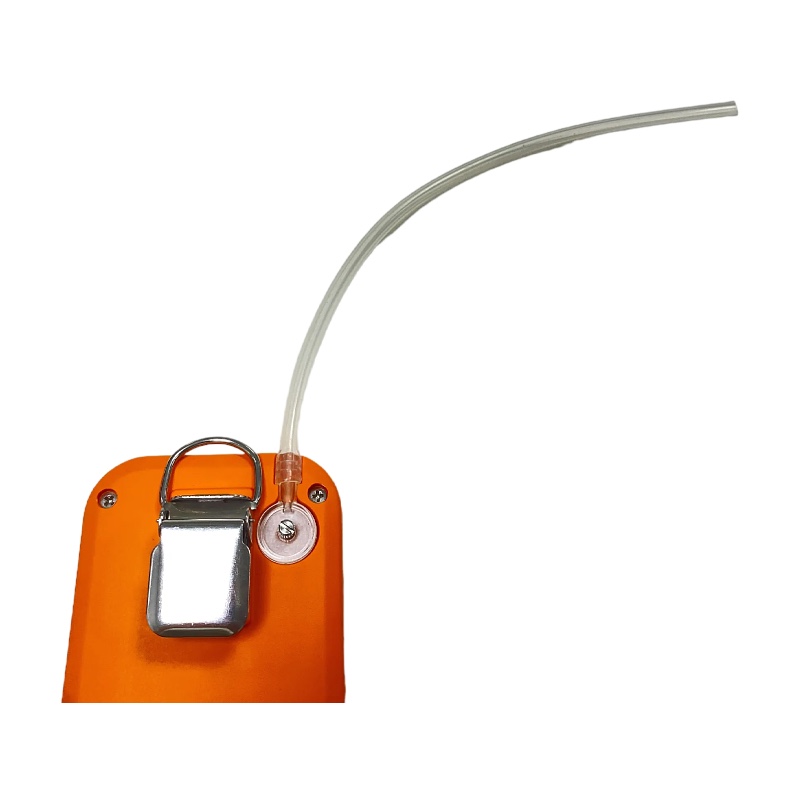

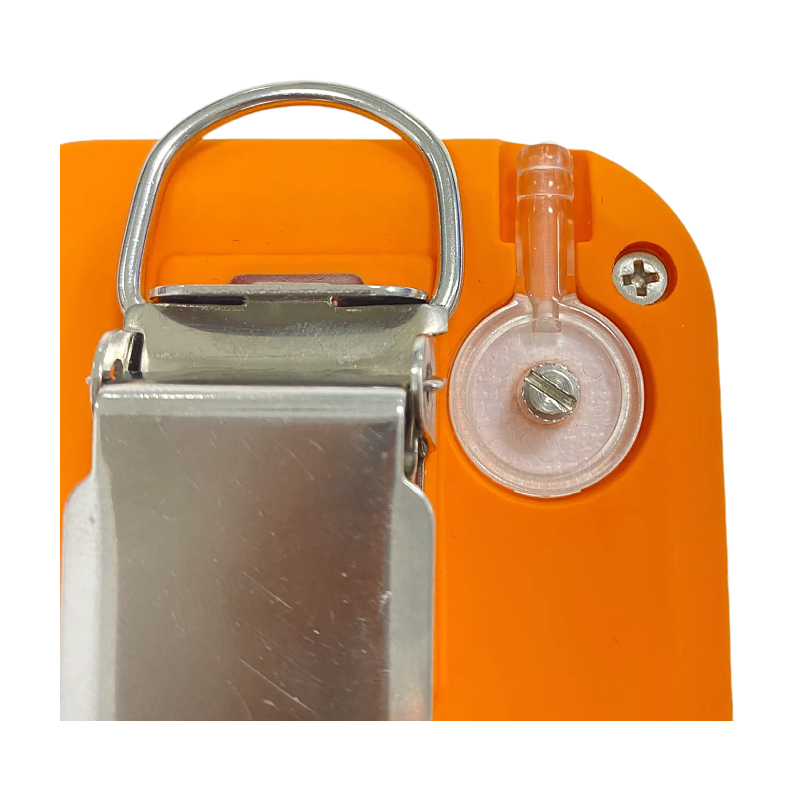

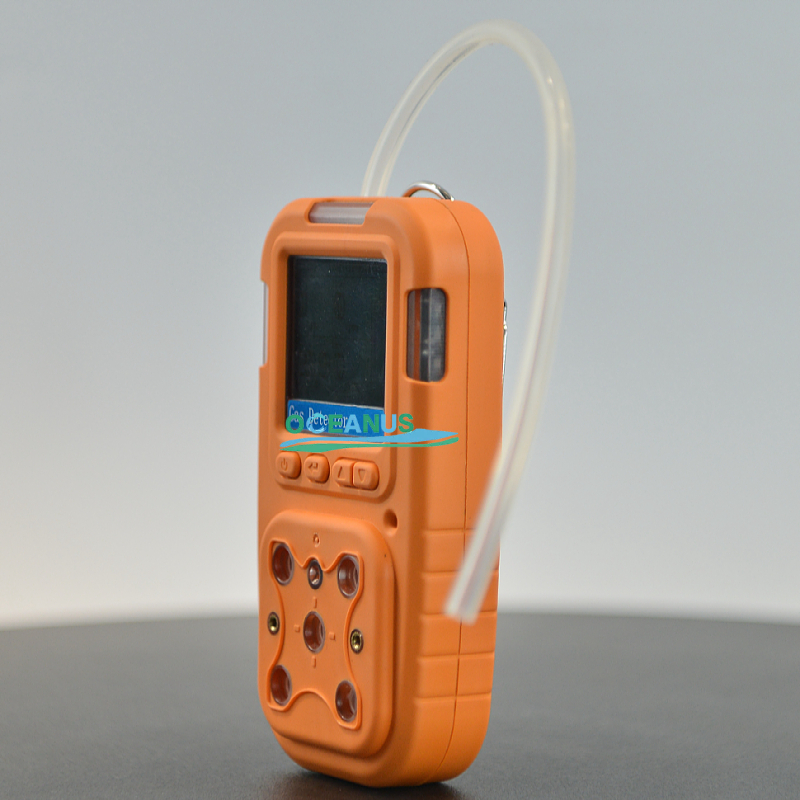

Pump suction sampling mode (optional);
The shell adopts PC + TPE rubber coated design, which is durable, anti-skid, waterproof, dustproof and explosion-proof.
Applications:
The portable multi gas detector used in the gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the gas concentration of the Combustible gas and Toxic gas.
Technical specification:
| Gas Detected | Customized by customers | ||
| Detection principle | Customized by customers
Catalytic combustion、Electrochemistry、NDIR、PID, etc |
||
| Sampling Method | Diffusion type or Pump suction(1L/min) | ||
| Measure Range | As gas type | ||
| Resolution | 1%LEL、0.1%VOL、1PPM、0.1PPM | ||
| Precision | ≤± 3% F.S. | ||
| Data store | 9999 groups alarm information | ||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%（F.S/Y） | Display | LCD screen |
| Operating language | English or Chinese | Gas unit | PPM, %VOL, %LEL |
| Temperature | -40～70℃ | Humidity | 0-95%RH |
| Explosion-Proof | Ex ib IIB T3 | Protection level | IP65 |
| Alarm mode | Sound, light and vibration | Operating time | 100hours（off pump） |
| Dimensions | 205*75*32mm | Weight | 300g |
