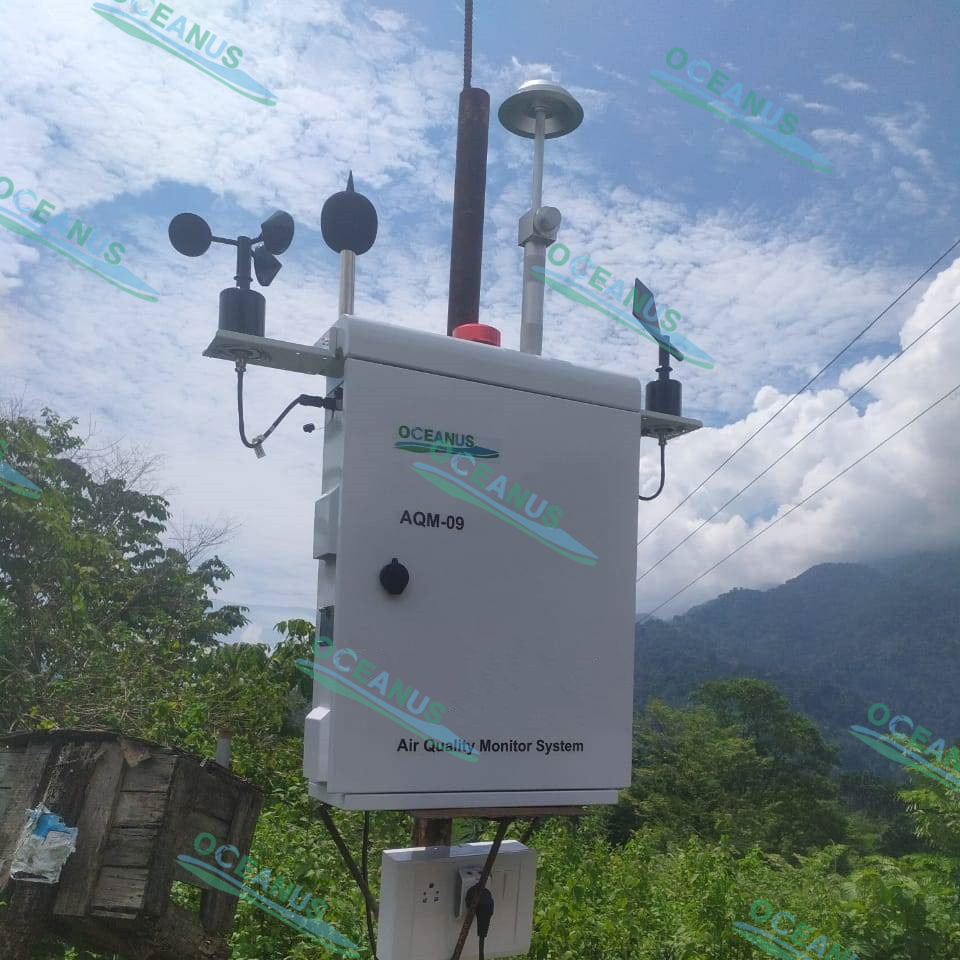

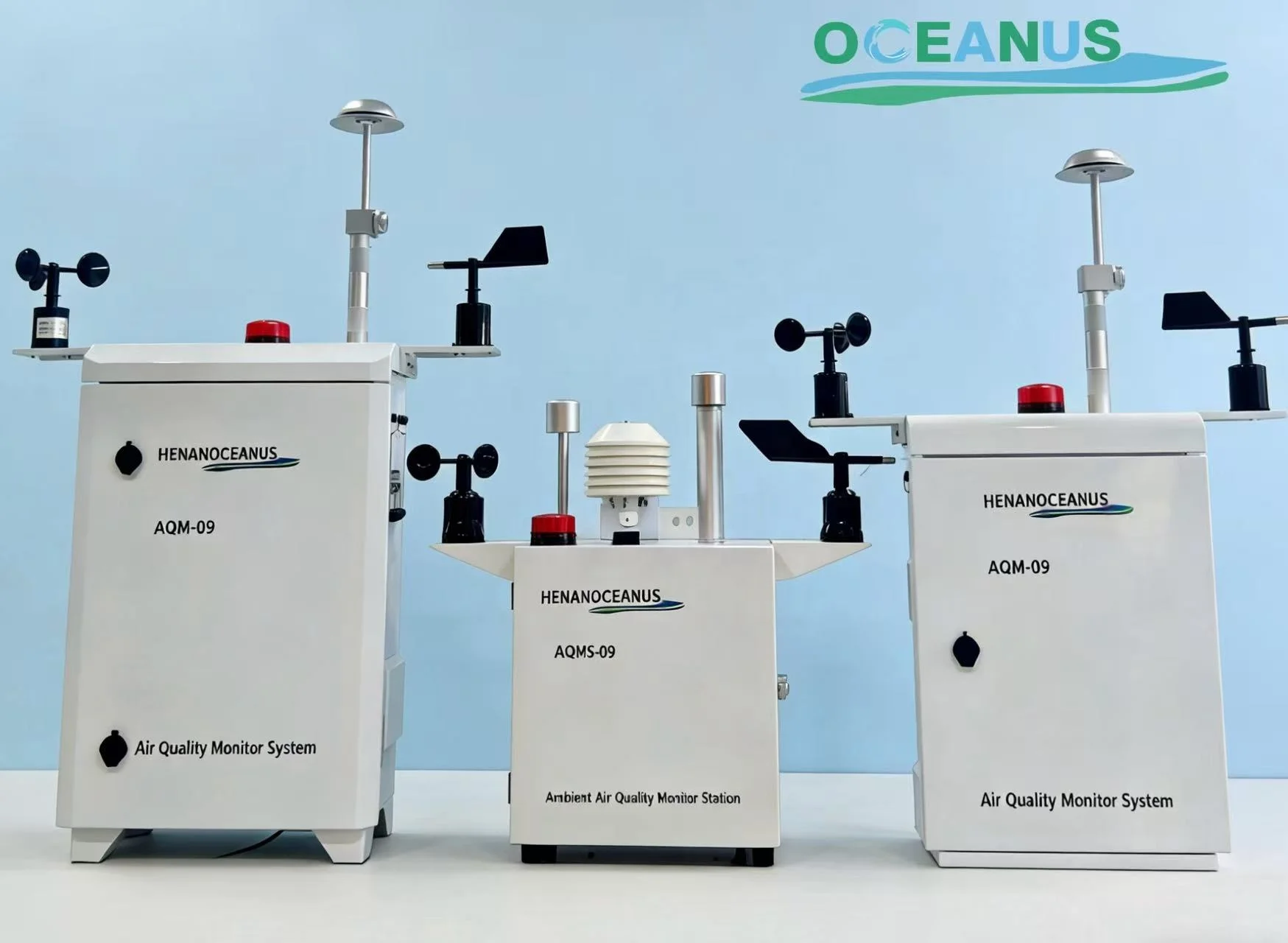

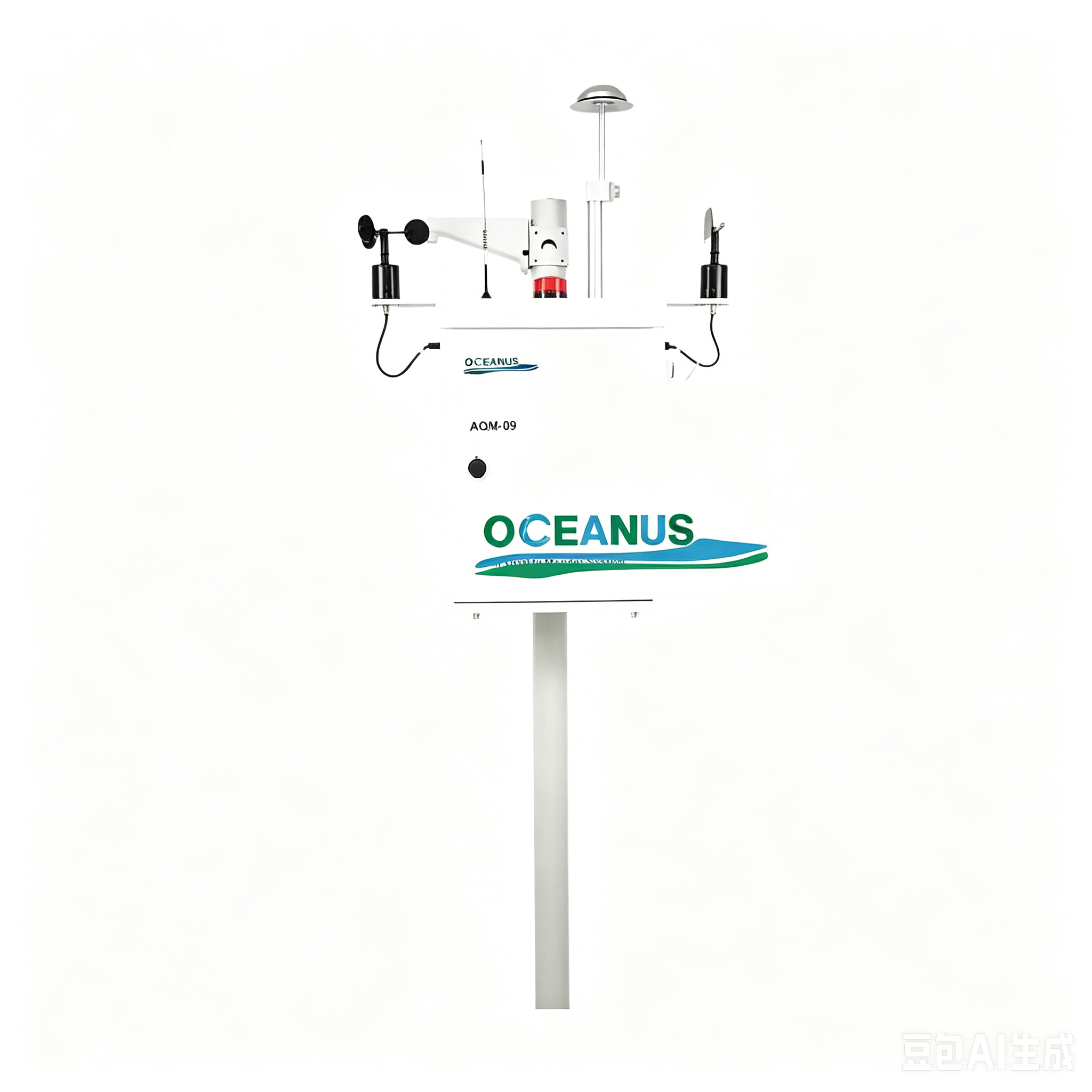

AQM-09 air quality monitor system is an integrated outdoor ambient air monitoring station independently developed by Oceanus. Equipped with imported UK high-precision ambient air sensors, it adopts exclusive automatic heating and dehumidification compensation module to eliminate humidity interference and guarantee stable and accurate detection data.
This system can continuously & automatically monitor multiple indicators: pollutant gases (CO, O3, SO2, NO2, CO2, TVOC, max 10 customizable gases), particulate matters (PM1, PM2.5, PM10, TSP), plus full meteorological parameters (temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall, solar radiation, noise).
It supports diffusion sampling for gas and pump-suction sampling for particulate matter, built-in 4G/GPRS real-time data upload to cloud platform, optional solar power supply, outdoor LED display screen and tripod bracket. IP55 waterproof & dustproof grade, widely used in urban environment, industrial parks, traffic tunnels, residential communities and park atmospheric supervision.
Core Features
- Unique automatic heating & dehumidification module is equipped to avoid humidity interference and guarantee the precision of measuring data.
- Real-time monitoring data can be checked remotely via the exclusive independent cloud monitoring platform.
- Two power supply options are available: standard AC220V mains power, and solar panel with storage battery can be selected as an extra power mode.
- It can be connected with external LED public display screen to synchronously display real-time air quality data to the public.
- Pump-suction sampling structure for particulate pollutant detection can be customized according to actual needs.
- A maximum of 10 types of toxic and harmful pollutant gas sensors can be customized to match clients’ regional standards and on-site requirements.
- Adopt 4G/GPRS network to upload detection data automatically and in real time, realizing stable long-distance data transmission.
- The whole set of equipment is fitted with IP55 fully waterproof and dustproof cabinet, which is adaptable to various severe outdoor weather environments.
- Support 24-hour continuous unattended automatic monitoring, no manual operation is needed during the whole working process.
Detailed Technical Parameters
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10，TSP | |
| Measuring range | 0~1000ug/m3 (Range can be extended) | |
| Response time | ≤60s | |
| Measuring time | 0.1min (Shortest measurement time)
1min(Standard measurement time) |
|
| Minimum detection limit | ≤0.001 mg/m3 | |
| Instrument parallelism | ≤±10% | |
| Data validity | ＞75% | |
| Dehumidification | With the automatic dehumidification function module | |
| Alarm function | With high concentration alarm function, the platform can configure the alarm threshold | |
| Gas modules | Monitor method | Continuously, automatically and real-time |
| Working principle | High precision Electrochemical sensor | |
| Gas monitor | SO2, NO2, CO, O3 | |
| Sulfur Dioxide SO2 | Measuring range: 0~2000ppb
Resolution: 1ppb Response time: ＜45s |
|
| Nitrogen Dioxide NO2 | Measuring range: 0~2000ppb
Resolution: 1ppb Response time: ＜45s |
|
| Ozone O3 | Measuring range: 0~2000ppb
Resolution: 5ppb Response time: ＜45s |
|
| Carbon Monoxide CO | Measuring range: 0~200ppm
Resolution: 0.1ppm Response time: ＜45s |
|
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -30℃~60℃, Precision: ±0.3℃ (20℃) | |
| Humidity: Measuring range: 0~95%RH, Precision: ±5%(5%RH~95%RH, 25℃) | ||
| Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
| Wind speed: Measuring range: 0~60m/s, Precision: ±0.3m/s | ||
| Barometric pressure: Measuring range: 600~1110hpa, Precision: ±0.5hpa | ||
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 4G/GPRS |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1.5~2m, Q235 Galvanized material |
| Working environment | Temperature: -20~50℃
Humidity: 5%RH~95%RH Pressure: 65~108Kpa |
| Protection grade | IP55 |
| Power supply | AC220V/50Hz/Solar power (optional) |

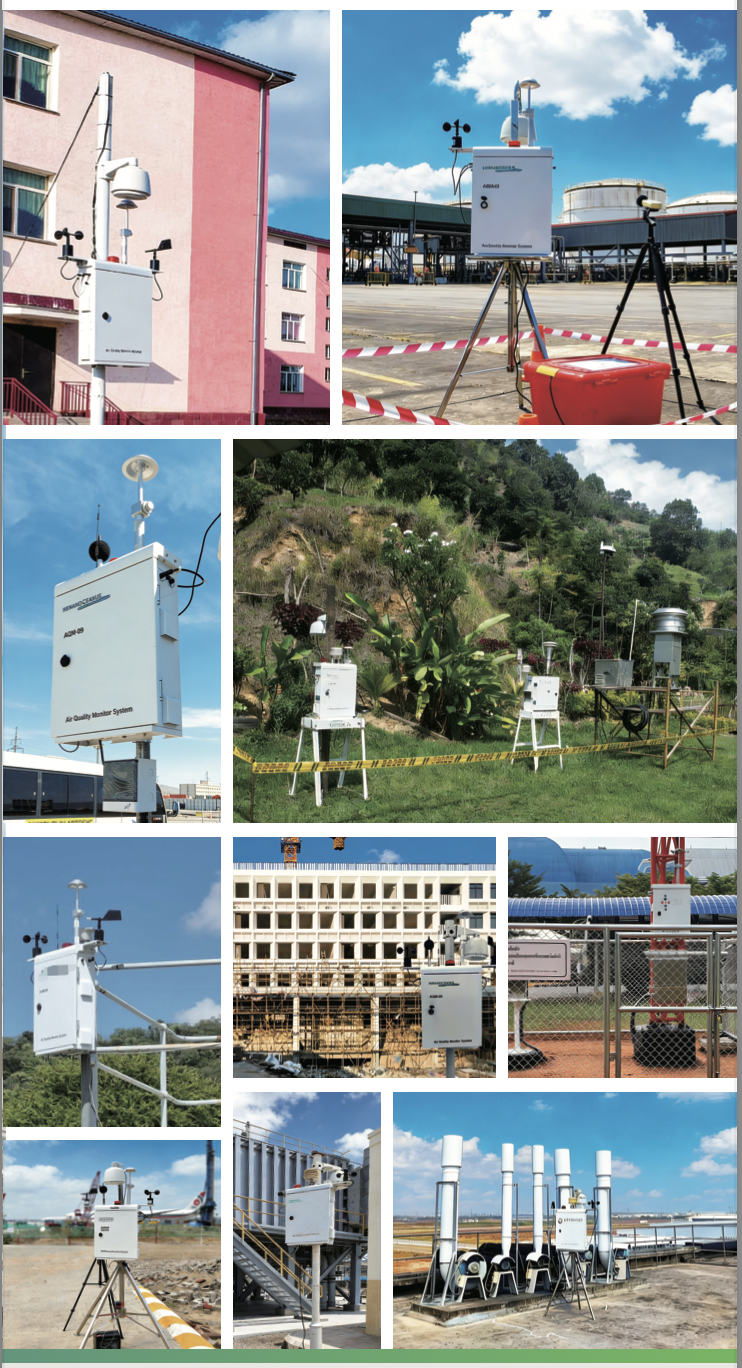

Application Scenarios
- Urban comprehensive ambient air quality long-term monitoring
- Traffic road, tunnel air pollution real-time supervision
- Residential areas, schools, hospitals environmental air monitoring
- Park, forest scenic area atmospheric environment supervision
- Industrial zone air monitoring: chemical plant, power plant, landfill, incineration station, port, sewage treatment plant, storage warehouse
- Short-term atmospheric environmental impact assessment for construction projects
Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Manufacturer Advantages

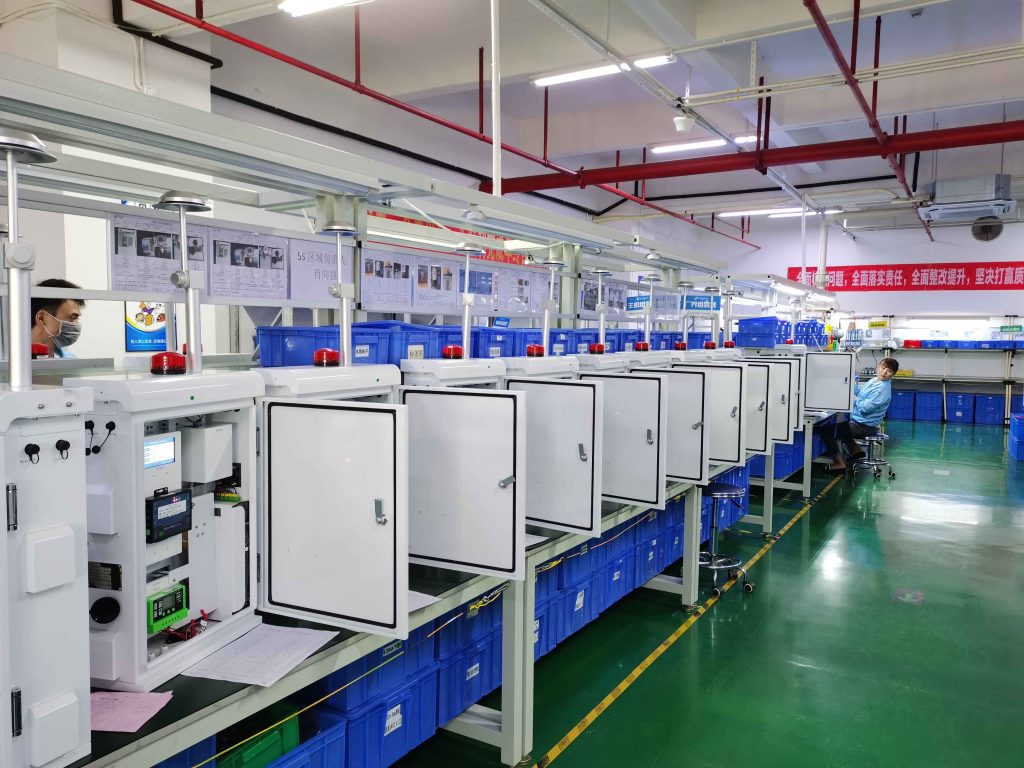

- Professional environmental monitoring equipment factory with independent R&D team
- Import UK brand high precision sensors, stable test data, low zero drift
- Full parameter customization: gas types, meteorological sensors, sampling mode, power supply
- Exclusive cloud platform free for long-term use, support data export & report generation
- IP55 integrated cabinet, anti-corrosion, anti-rain, anti-dust for long outdoor service life
- Flexible MOQ, competitive factory direct price, global after-sales technical support
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
