Description:

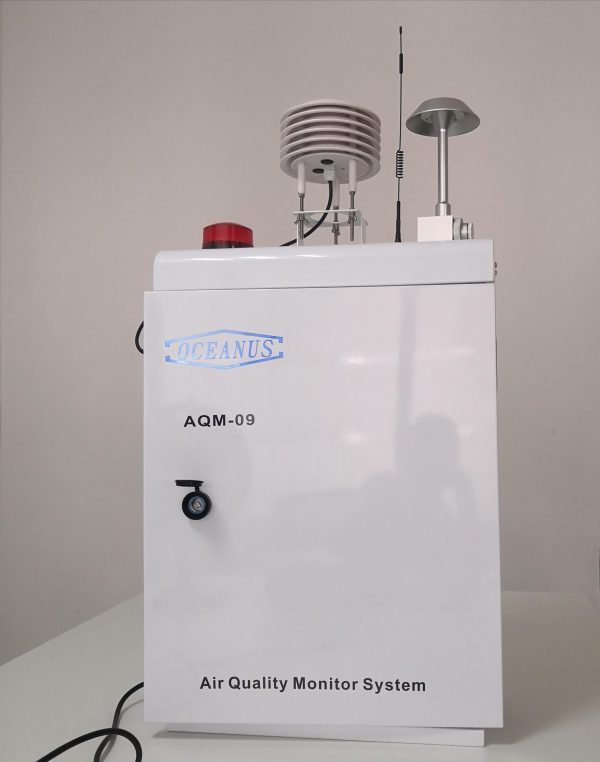

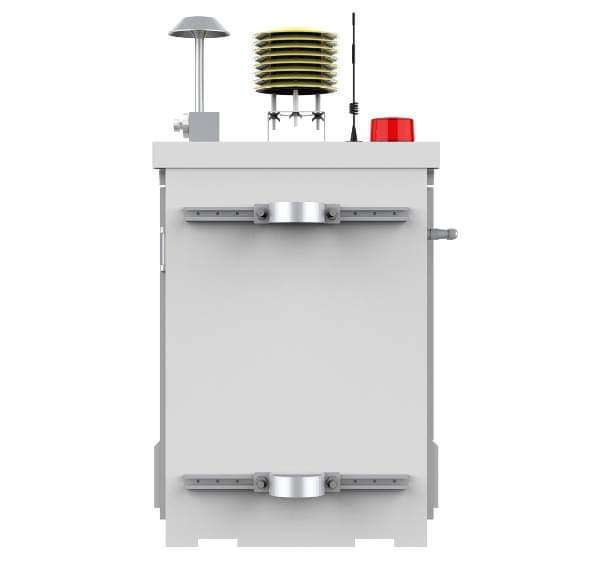

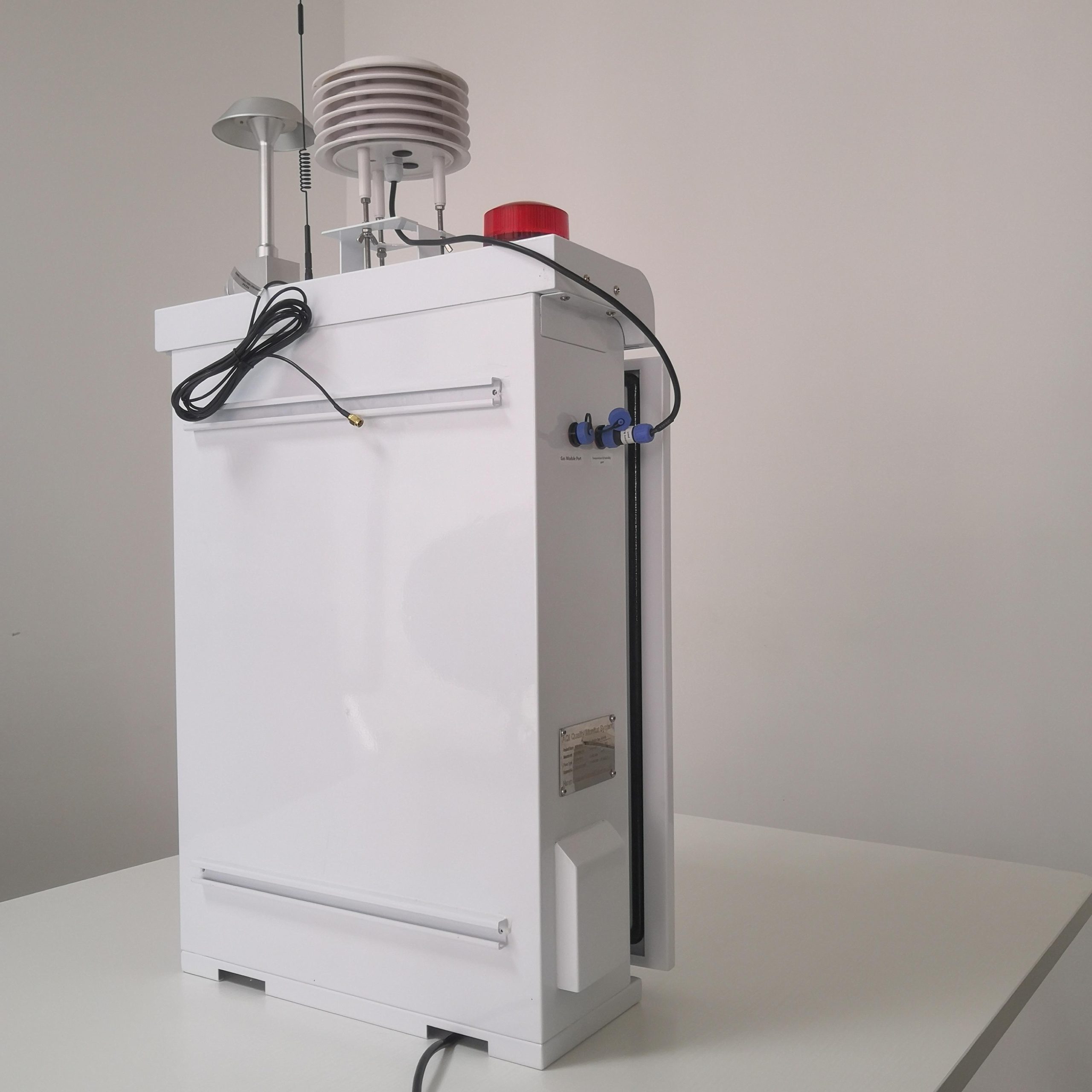

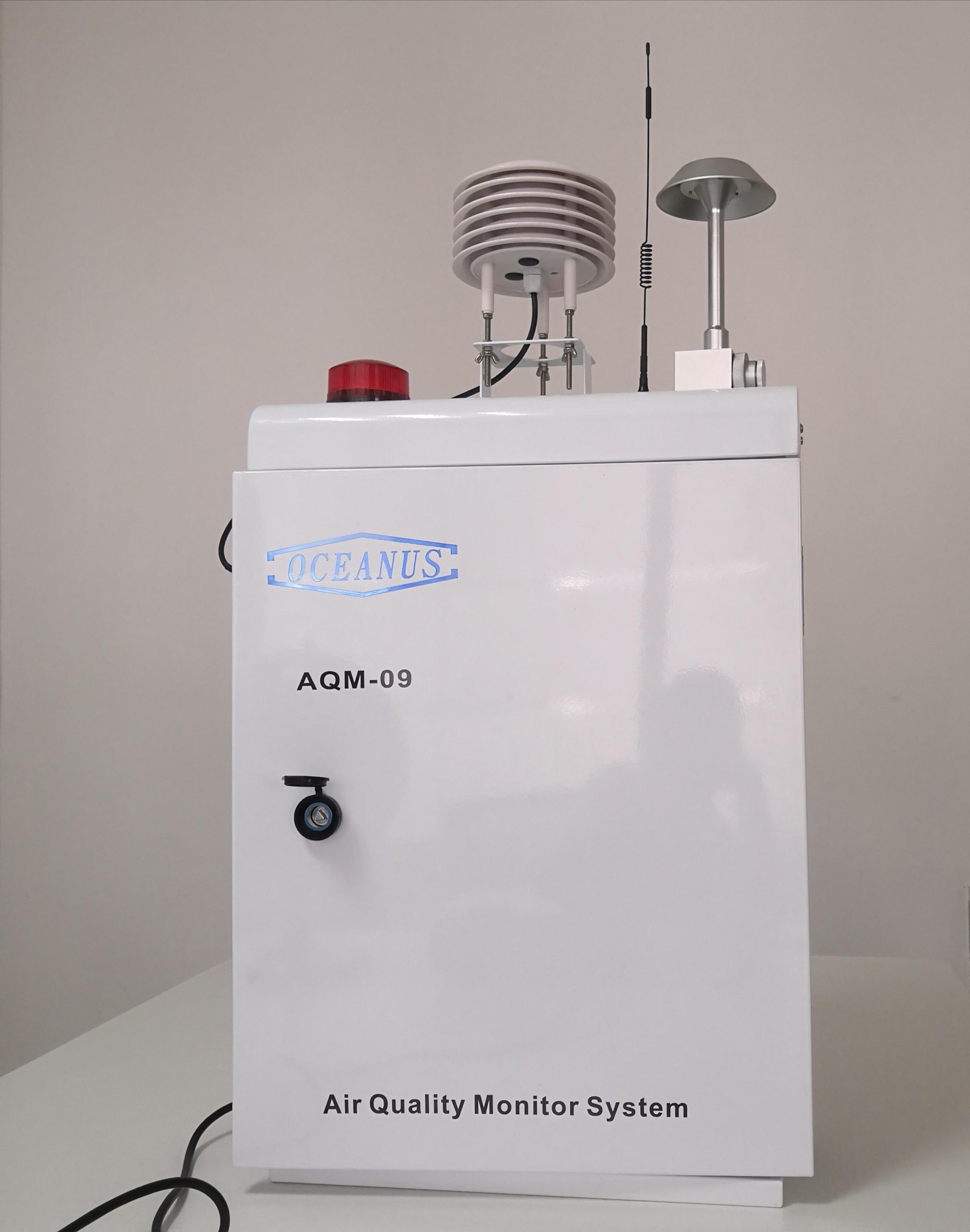

The OC-9200 Dust monitoring system used to detect the Particulate matter PM2.5 and PM10,TSP, Noise, Meteorological parameters (including of Temperature, Humidity, Wind speed, Wind direction, Barometric pressure ). Combined with industrial laser sensor technology and unique heating dehumidification compensation device, the influence of ambient temperature and humidity on the detection results of particulate matter is reduced.
Features:
Modular designed , easy to set different monitoring factors on demands, suitable for large scale grid distribution points;
Calibration is carried out on site according to the traceable reference standards;
No need to change the sampling cutter, it can detect the PM10, PM2.5, TSP at the same time;
The circuit adopts industrial embedded processor, suitable for the harsh outdoor environment and the working temperature is -40~70 degree;
The particulate sampling is controlled by dynamic heating and dehumidification to remove the influence of water mist on measurement data;
Adopts long-life anti-jamming sampling power system, quiet and efficient;
the sampling period is adjusted. Adopts the industrial transmission module to ensure the stability and reliability of the data transmission;
the system with the two-channel communication to ensure the data continuity;
It can realize remote data transmission and read the system status information remotely;
Also can realize the remote control, modify instrument parameters remotely and diagnose faults;
(Optional) IP cameras with various parameters to record the video;
Real-time data displaying and the update time is adjustable;
Large size LED to display the data. Various installation modes;
The Air quality monitor station with many different applications:
Pollution control in traffic environment;
Road and tunnel pollution monitoring;
Urban air quality monitoring;
Emission monitoring of particulate and pollution sources;
Long-term air quality trends analysis;
Short-term atmospheric environmental impact assessment;
Environmental monitoring in residential areas, schools, Hospitals;
Park / forest environmental monitoring;
Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc.
Company profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
Technical Parameter:
| Items |
Description |
Specification |
|
Particle Modules
|
Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10, TSP | |
| Measuring range | 0~1000μg/m3 (Range can be extended) | |
| Response time | ≤60s | |
| Resolution | 1μg/m3 | |
| Accuracy
/reproducibility |
> 100ug/m3, ±20% | |
| Parallelism | < 10% | |
| Sampling flow | 1.3L/min, ±0.15 | |
| Sampling time | Adjustable(Default is 5munites) | |
| Dehumidification | With the automatic dehumidification function module | |

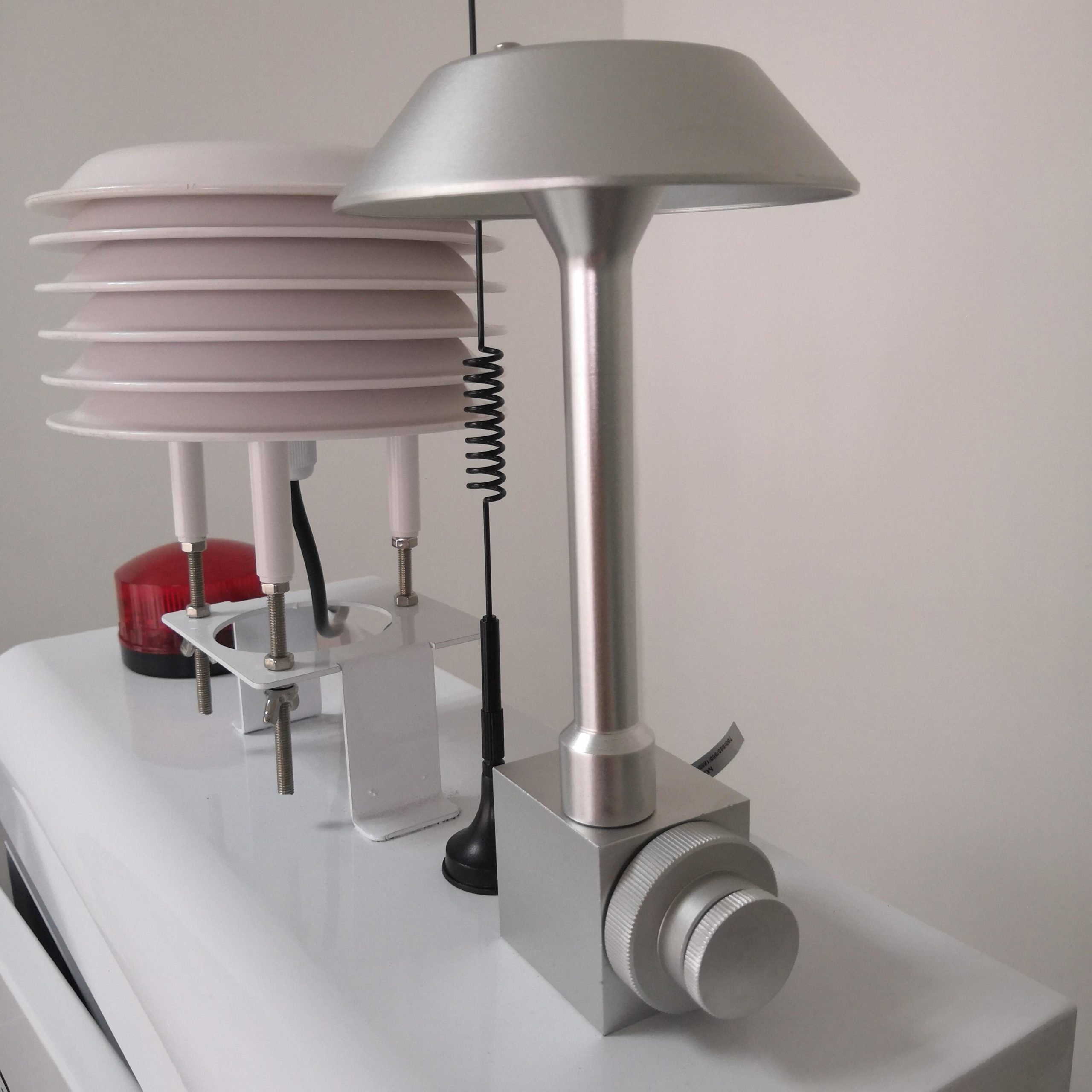

| Cutter | Cyclone cutter | |
| Fault alarm | Real-time display the fault alarm | |
| Power supply | DC12V, AC220 | |
|
Wind Speed
|
Range | 0~45m/s |
| Precision | ±1m/s | |
| Output resolution | 0.1m/s | |
|
Wind Direction
|
Range | 0~360° |
| Precision | ±3° | |
| Output resolution | 1° | |
|
Temperature
|
Range | -30℃~50 ℃ |
| Precision | ±1℃ | |
| Output resolution | 0.1℃ |
|
Humidity
|
Range | 0~95%RH |
| Precision | ±5%RH | |
| Output resolution | 1%RH | |
|
Air Pressure
|
Range | 600~1100hPa |
| Precision | ±0.5hPa | |
| Output resolution | 1hPa | |
|
Noise Monitor |
Performance level | GB/T3785/IEC61672 , Class 1 |
| Parameter | 1sLeqT, Leq, LE, L1, L10, L50, L90, L99, Lmax,
Lmi, Leq8hn, EA, ND, Sd, LCpeak
|
|
|
Microphone |
Nominal diameter:12.7mm.(Free-field frequency response) | |
| Nominal sound pressure sensitivity: 50mV/Pa | ||
| Frequency Range | 10 Hz～20 kHz | |
| Frequency weighting | A、C、Z | |
| Time weighting | F、S 、I | |
| Measuring range | (30～130) dBA、(40 ~130) dBC、(45~130) dB | |
| Display | 128×64 dot matrix liquid crystal display (LCD), Resolution: 0.1dB | |
| Integration time | The default is 10min, can be set according to needs | |
| Repeated measurement | It can be set up to 255 times, and the minimum is 1 time |
