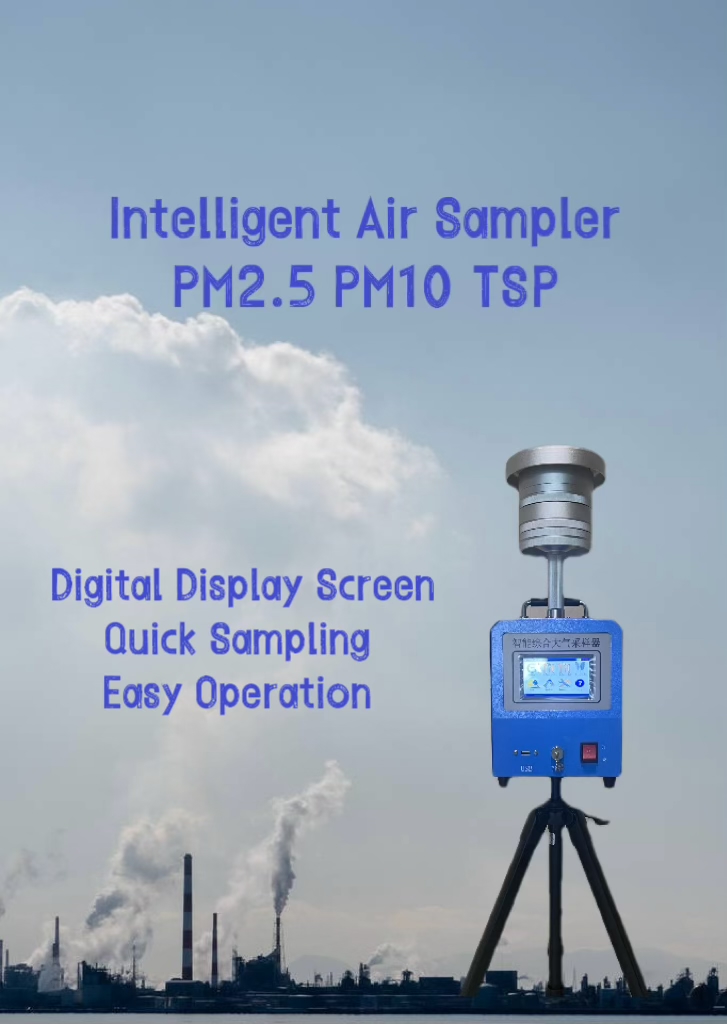

PQM-09 Multi Independent Channel Particulates Sampler - Image 2
PQM-09 Multi Independent Channel Particulates Sampler - Image 3

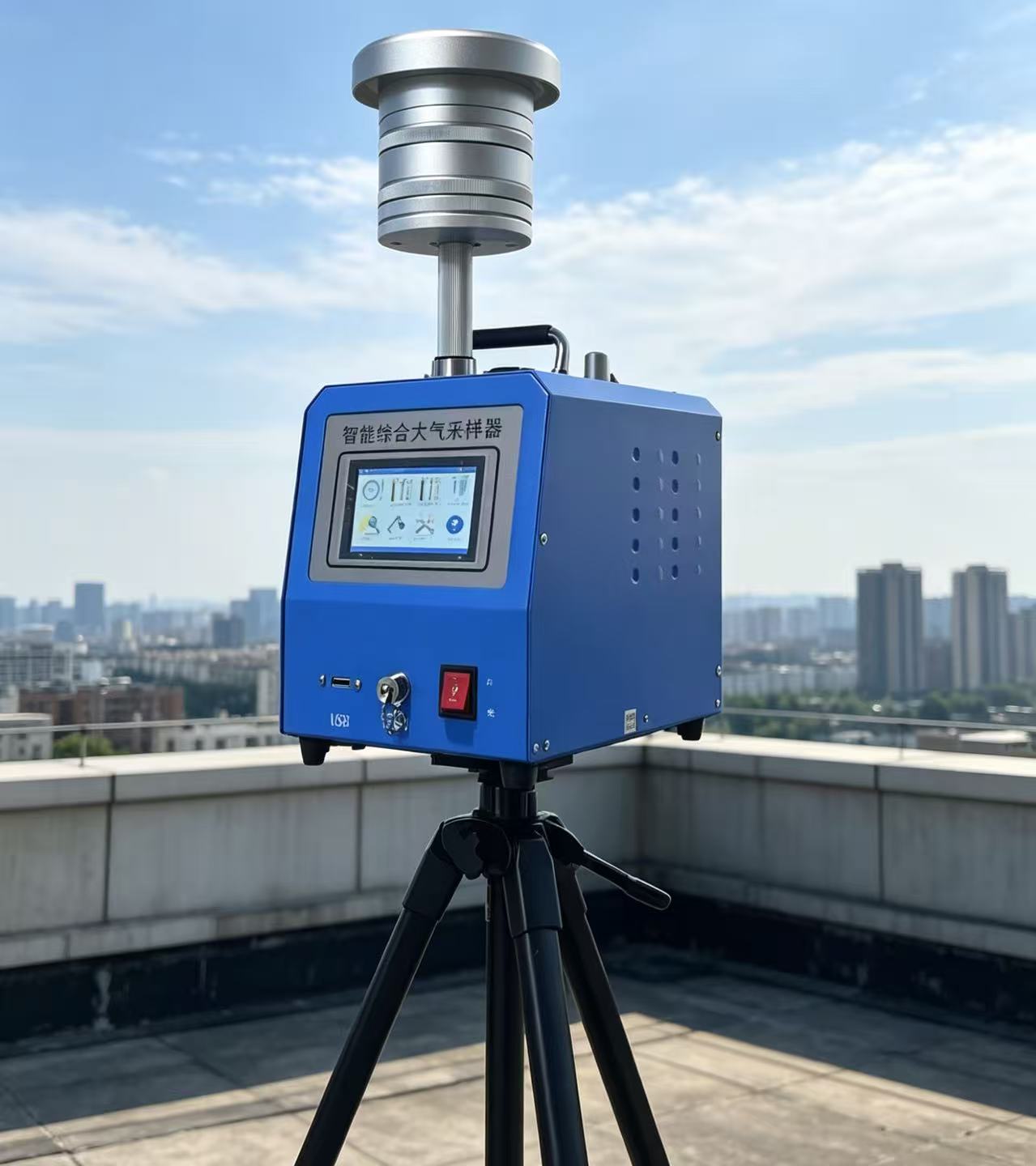

PQM-09 Multi Independent Channel Particulates Sampler - Image 4

PQM-09 Multi Independent Channel Particulates Sampler

PQM-09 multi-channel air sampler collects PM2.5, PM10, TSP and atmospheric gaseous pollutants simultaneously. Bilingual control, power-off data storage, tripod portable design for field and construction temporary monitoring.

Get A Quote
Contact Us

Product Overview

The PQM-09 Smart Particulates Sampler adopts filter weighing method to collect PM2.5, PM10 and TSP particulate matter in ambient air. It also supports solution absorption sampling to capture various gaseous pollutants in atmosphere and indoor air. Equipped with multiple independent sampling channels, it realizes simultaneous collection of dust and gas samples, widely used in outdoor construction temporary monitoring, laboratory research, epidemic prevention and environmental law enforcement.

Core Features

  1. Chinese & English bilingual operation interface, manual entry of sampling location information
  2. Built-in sampling site database, quickly recall historical location data
  3. 1 particulate sampling channel + 3 independent gas sampling channels, separate start-stop control for each channel
  4. Two atmospheric sampling paths with electric heating constant temperature function; fully light-shielded sample chamber to avoid test deviation
  5. Automatic data saving during power failure; sampling resumes automatically after power recovery
  6. Tripod quick mounting, foundation-free setup, ideal for field & construction site temporary monitoring

Main technical indicators:
a) Air flow range (0.2 ~ 1.00) L/min, particulate matter flow range (10.0 ~ 140.0) L/min, indicating error is better than ±2%, repeatability is less than 2%, stability is better than 5%;
b) Heating temperature setting range (1.0 ~ 50.0) ℃, default value 23.5℃, measurement accuracy 0.5℃;
c) Timing error: better than 1‰
d) Volume sampling: atmospheric setting range (0.1 ~ 9999999.99) L (reference);
e) Timing sampling: Set range at start time (00:00 to 23:59) Set range at sampling time (00h01min to 24h00min)
f) Immediate sampling: sampling time setting range (00h01min ~ 24h00min)
g) Interval sampling:
Sampling times Set range (1 ~ 99) times
Start time Set range (00:00 to 23:59)
Setting range for each interval (00h00min ~ 23h59min)
Set range of sampling time (00h01min ~ 23h59min)
h) Atmospheric pressure measurement range (70 ~ 110) kPa, resolution 0.01kPa, accuracy better than 500Pa.
i) Temperature measurement range (-55.0 ~ 125.0) ℃, resolution 0.1℃, accuracy better than 2℃
j) Gauge pressure (-20 ~ 0) kPa, resolution 0.01kPa, accuracy better than 2.5%
k) Power consumption: < 200 W, where particulate matter sampling < 100 W, atmospheric sampling < 30 W

Application Scenarios

  • Environmental protection & ambient air quality monitoring stations
  • Construction site temporary dust & gas detection
  • Scientific research laboratories & university research institutions
  • Health epidemic prevention and occupational labor protection testing
  • Municipal environmental law enforcement inspection

Company profile

We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.

1

01. Business areas

As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.

02. Values and ideas

Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.

03. Global Service Network

We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.

04. Customer Service

With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.

Technical Advantages

  • Dual sampling principle: filter weighing for particles, solution absorption for gas pollutants
  • Mobile portable design, lightweight body matched with tripod for outdoor field deployment
  • Stable constant temperature sampling system ensures accurate test results
  • Anti-interference light shielding structure eliminates light influence on liquid absorption samples

Our After-sales service:

1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.

2. Free calibration service and provide calibration methods.

3. One year warranty and lifetime warranty
