Description

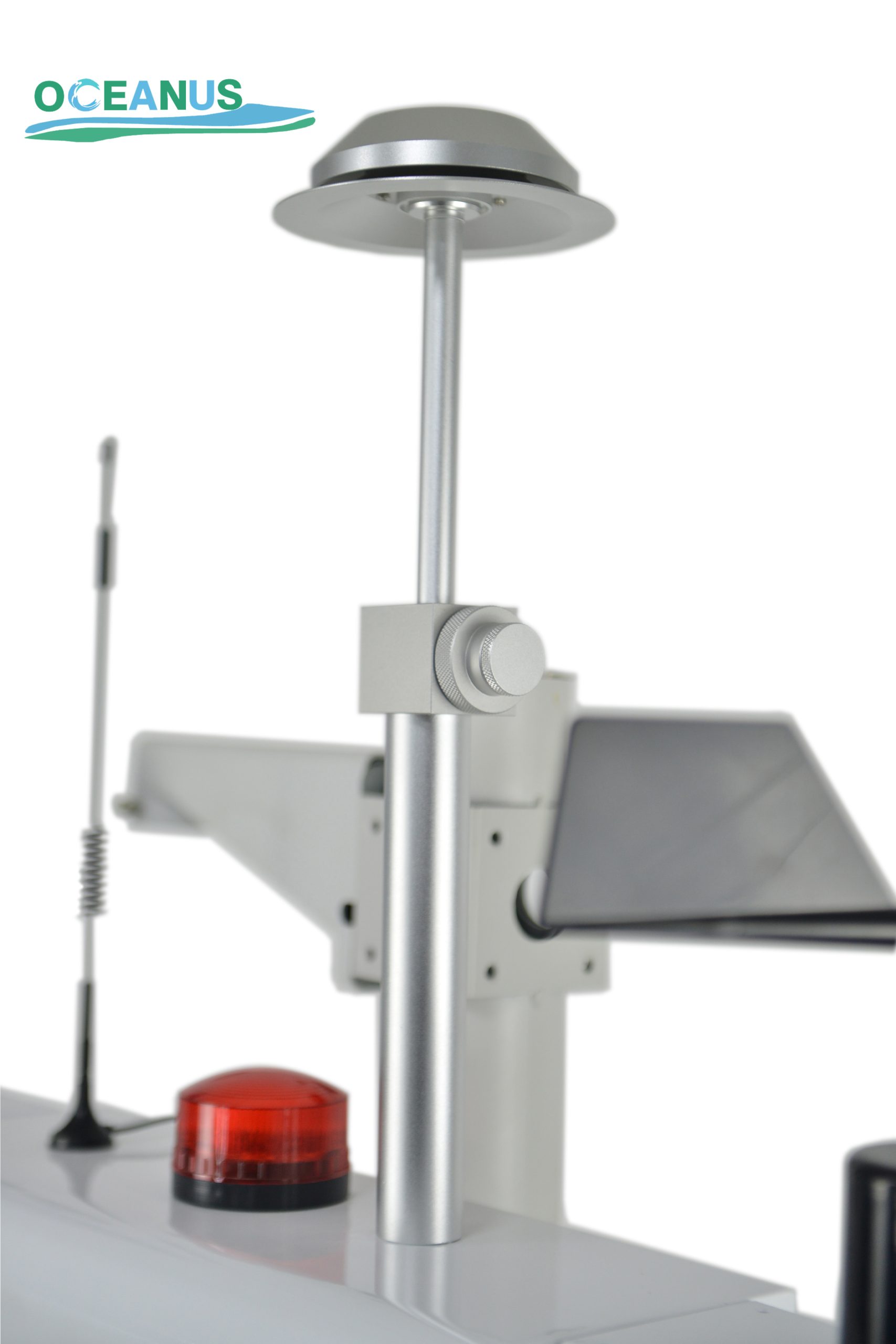

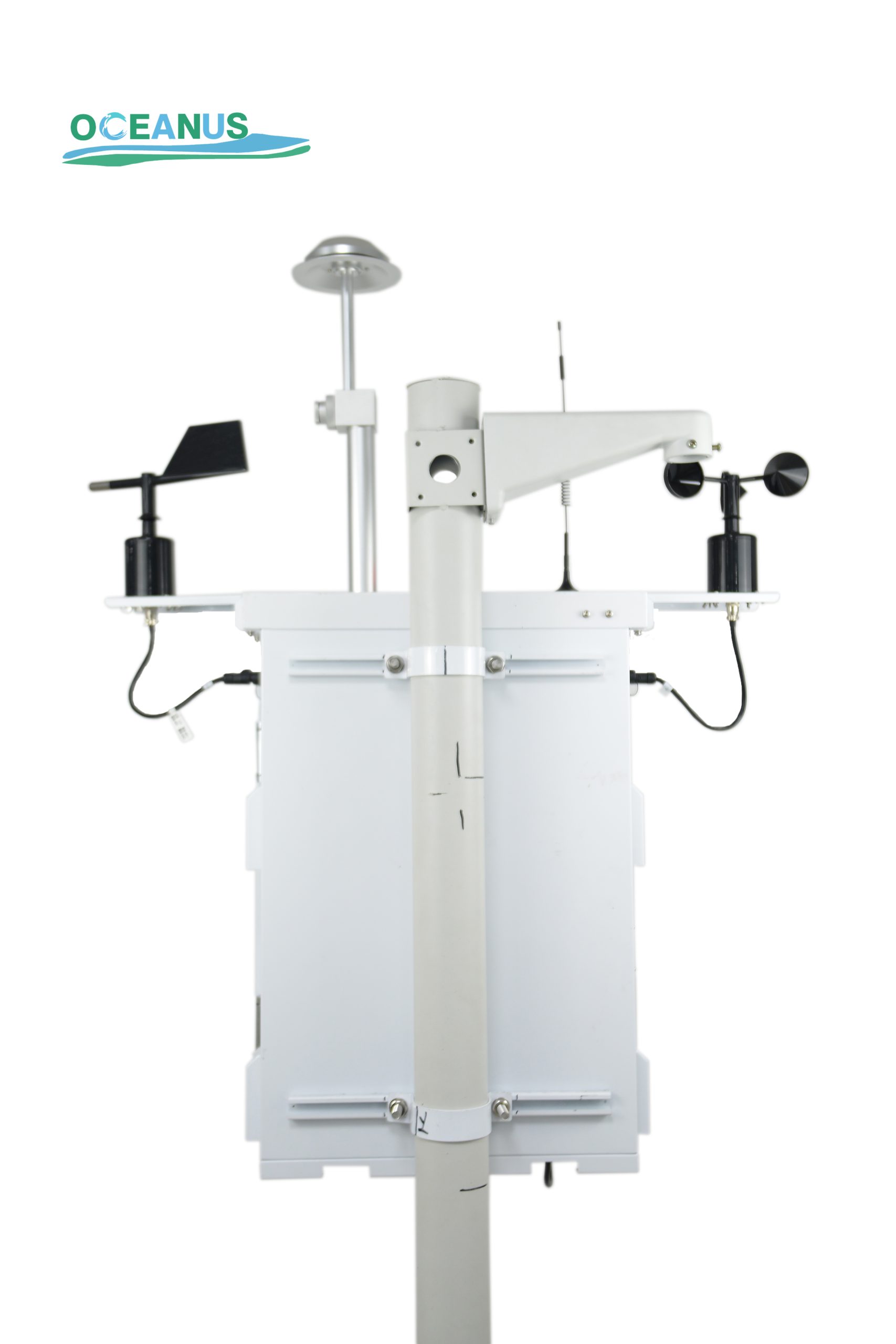

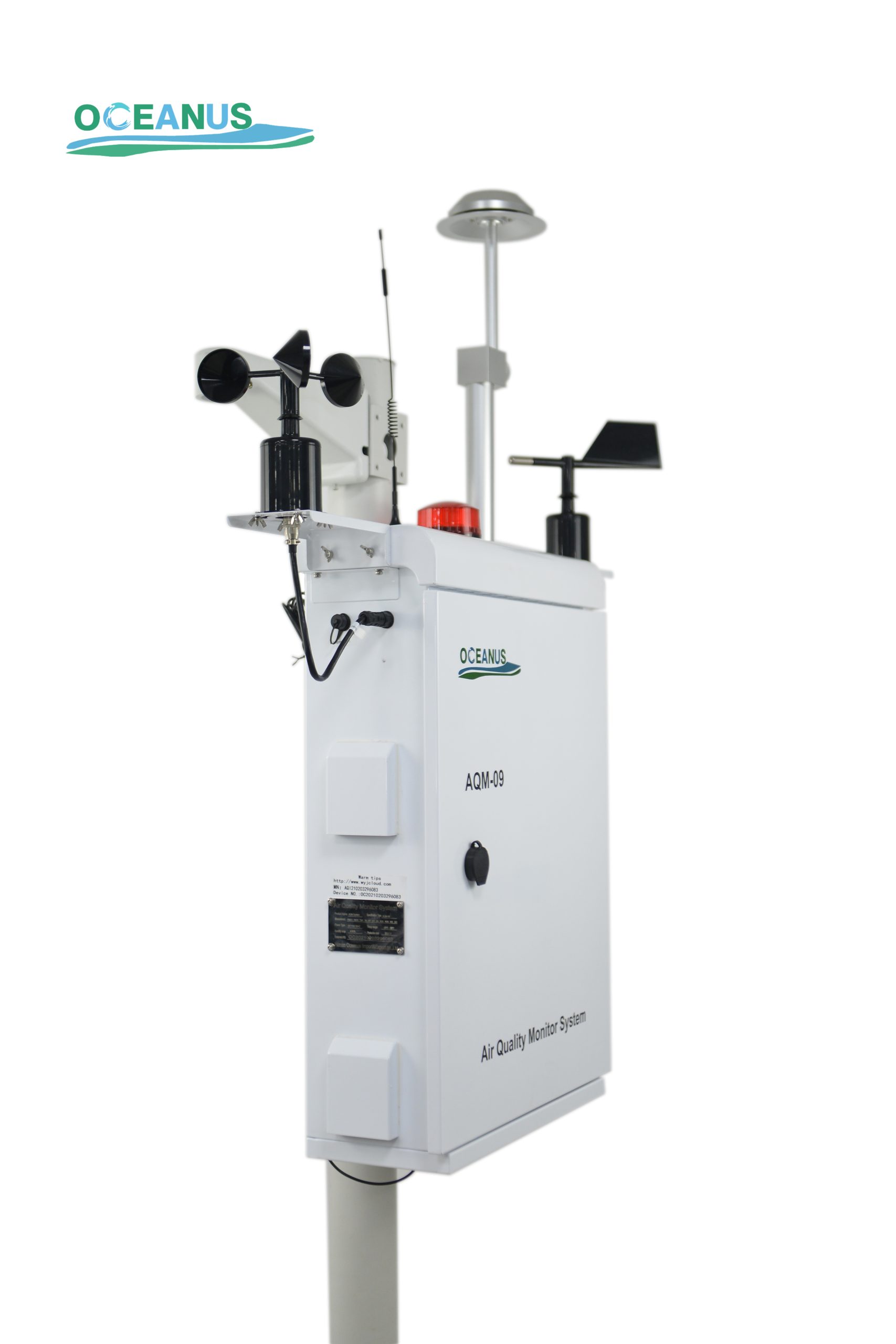

AQM-09 Air Quality Monitor
What is the AQM-09 Ambient air quality monitor station?
AQM-09 air quality monitoring system used to detect the pollutant gases(SO2, CO, NO2, O3, CO2, TVOC, etc.)
Particulate matter PM1, PM2.5 and PM10, TSP, Noise, Meteorological parameters (Temperature, Humidity, Wind speed, Wind direction, Barometric pressure, rainfall, solar radiation). Combined with industrial imported sensor technology and unique heating dehumidification compensation device to make sure data accuracy.
Features:
Installed with the famous brand sensor, with quick response, good linearity, stable performance and high resolution, the minimum unit up to ppb;
Designed with the all-in-one type and easy installation;
The modular design makes the later maintenance very convenient;
With the function of remote parameter correction, can save the costs;
With the built-in pump, respond quickly more than the normal diffusion sampling type;
With the Double-layer protection box, preventing it from external environment influence;
It’s with the Wireless network adapter, transmitting the data by GPRS, also with optional RS232 connection to display the data on the LED display screen;
With the Remote data acquisition system.
The Air quality monitor station with many different applications:
Pollution control in traffic environment;
Road and tunnel pollution monitoring;
Urban air quality monitoring;
Emission monitoring of particulate and pollution sources;
Long-term air quality trends analysis;
Short-term atmospheric environmental impact assessment;
Environmental monitoring in residential areas, schools, Hospitals;
Park / forest environmental monitoring;
Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc.
About us
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipments since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.With excellent products and services, Henan OCEANUS Import and Export Co., Ltd.’s gas detectors and air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
01. Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02. Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03. Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04. Customer Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
Our Service Processes:
Pre-sales Consultancy
Confirmation of order
Production
Multi-Channel Shipping
After-sale Services
Technical Parameter:
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10，TSP | |
| Measuring range | 0~1000ug/m3 (Range can be extended) | |
| Response time | ≤60s | |
| Measuring time | 0.1min (Shortest measurement time)
1min(Standard measurement time) |
|
| Minimum detection limit | ≤0.001 mg/m3 | |
| Instrument parallelism | ≤±10% | |
| Data validity | ＞75% | |
| Dehumidification | With the automatic dehumidification function module | |
| Alarm function | With high concentration alarm function, the platform can configure the alarm threshold | |
| Gas modules | Monitor method | Continuously, automatically and real-time |
| Working principle | High precision Electrochemical sensor | |
| Gas monitor | SO2, NO2, CO, O3 | |
| Sulfur Dioxide SO2 | Measuring range: 0~2000ppb
Resolution: 1ppb Response time: ＜45s |
|
| Nitrogen Dioxide NO2 | Measuring range: 0~2000ppb
Resolution: 1ppb Response time: ＜45s |
|
| Ozone O3 | Measuring range: 0~2000ppb
Resolution: 5ppb Response time: ＜45s |
|
| Carbon Monoxide CO | Measuring range: 0~200ppm
Resolution: 0.1ppm Response time: ＜45s |
|
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -30℃~60℃, Precision: ±0.3℃ (20℃) | |
| Humidity: Measuring range: 0~95%RH, Precision: ±5%(5%RH~95%RH, 25℃) | ||
| Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
| Wind speed: Measuring range: 0~60m/s, Precision: ±0.3m/s | ||
| Barometric pressure: Measuring range: 600~1110hpa, Precision: ±0.5hpa | ||
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 4G/GPRS |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1.5~2m, Q235 Galvanized material |
| Working environment | Temperature: -20~50℃
Humidity: 5%RH~95%RH Pressure: 65~108Kpa |
| Protection grade | IP55 |
| Power supply | AC220V/50Hz/Solar power (optional) |
